Installation Procedure

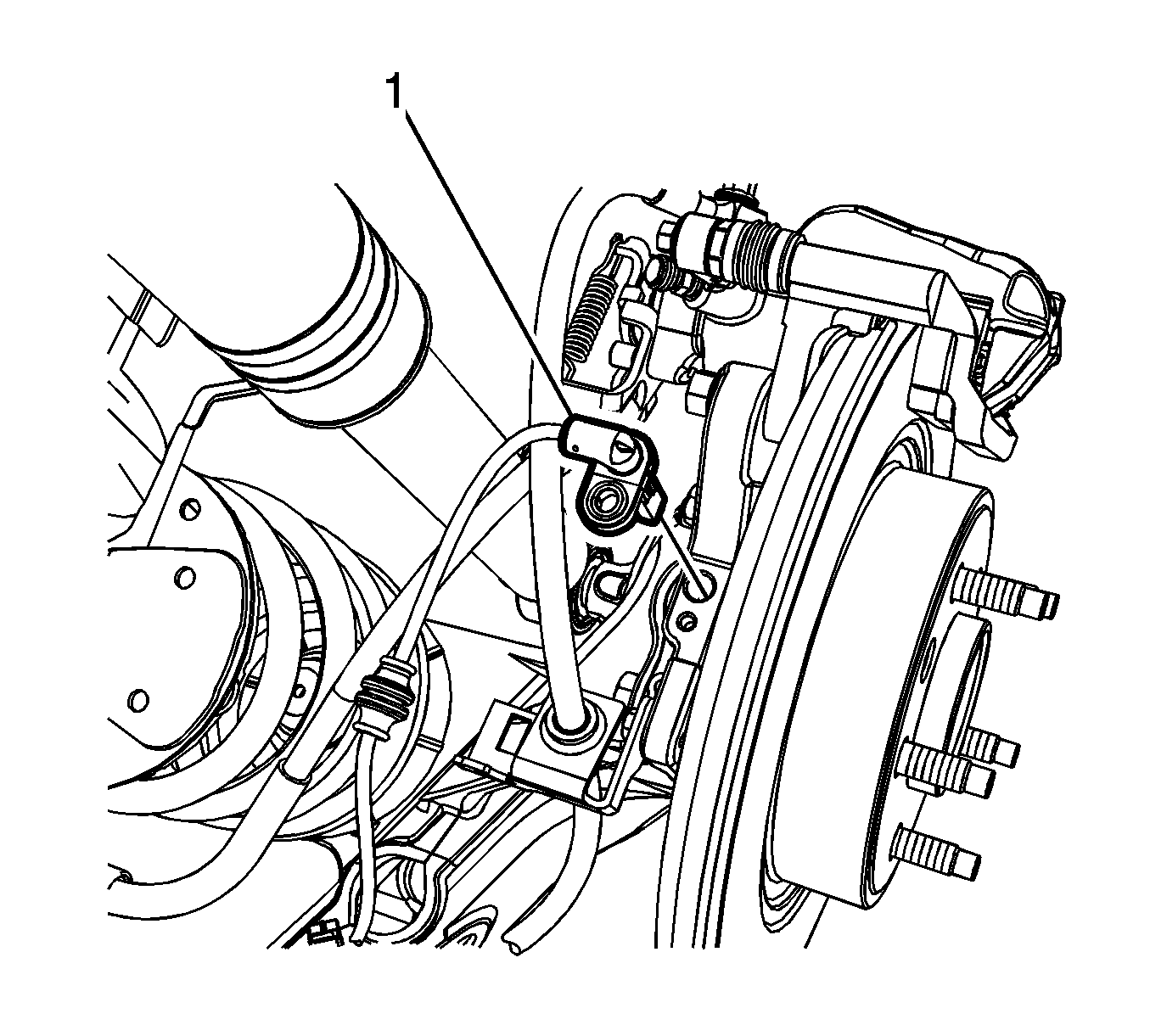

    Fig 1: Wheel Speed Sensor
    GM2375856Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor (1) to the suspension knuckle.

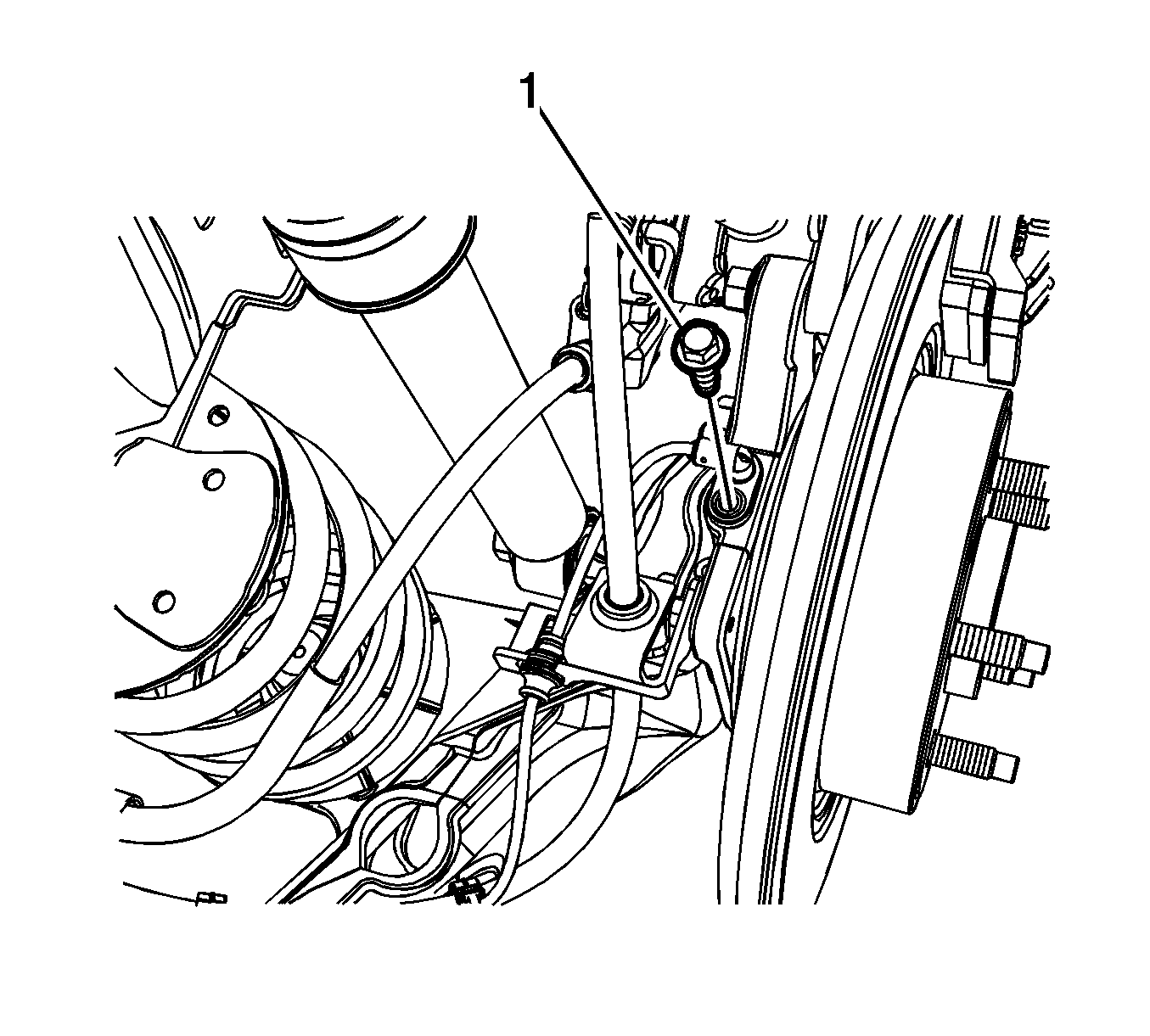

    2. Fig 2: Wheel Speed Sensor Bolt
    GM2375855Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

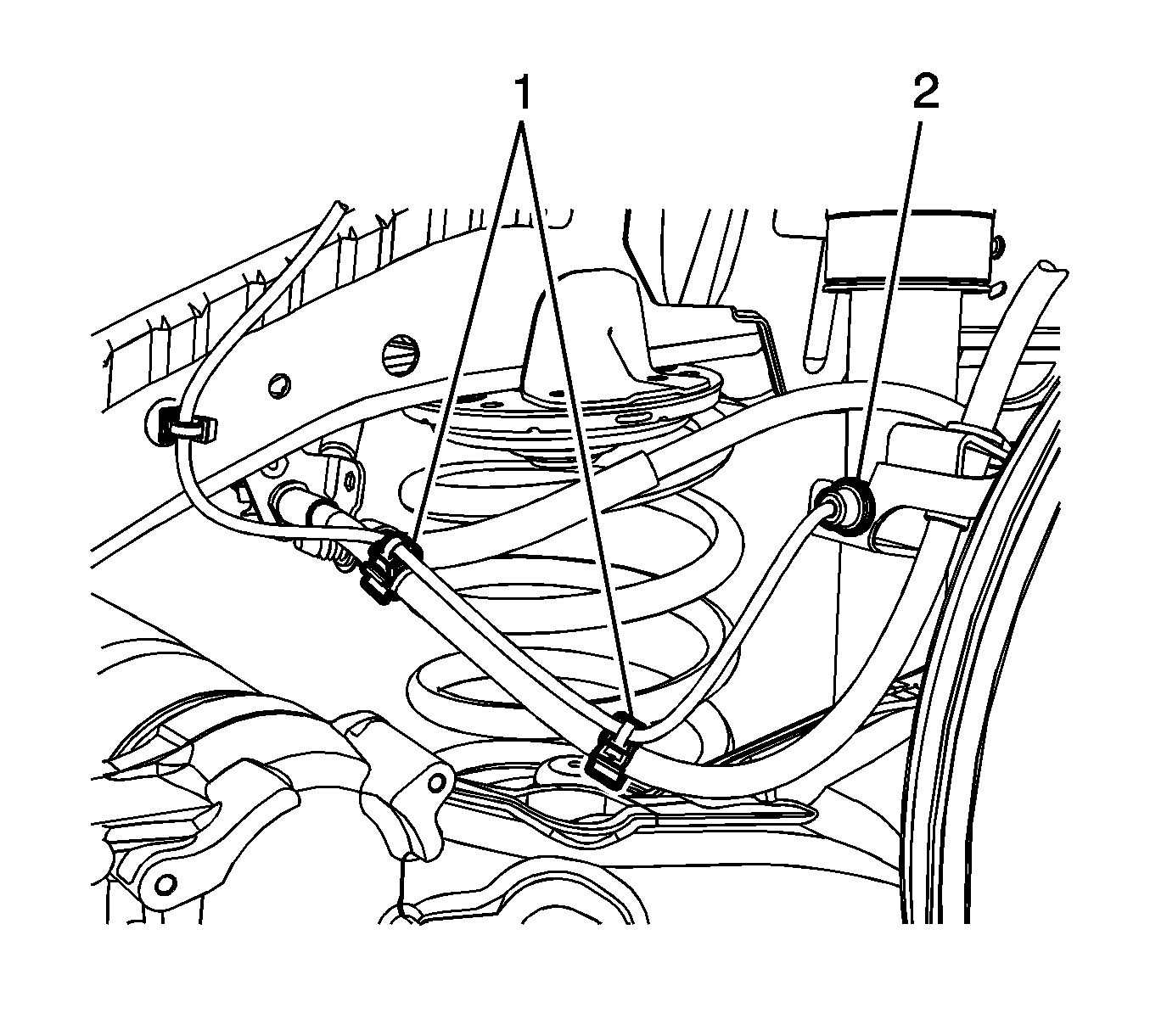

    3. Fig 3: Wheel Speed Sensor Harness, Rear Brake Hose Retainers And Hose Bracket
    GM2375859Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness to the rear brake hose retainers (1) and the brake hose bracket (2).

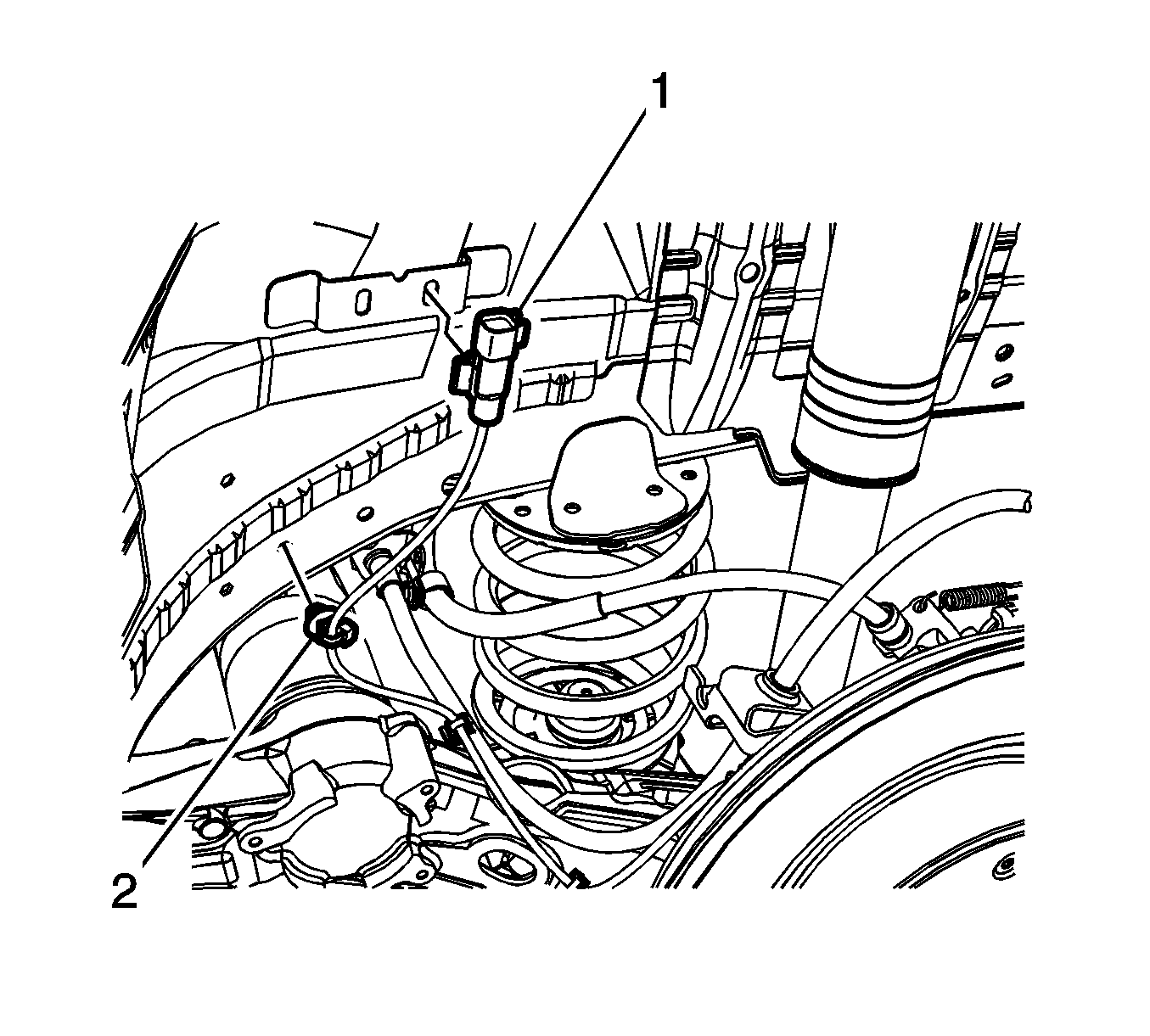

    4. Fig 4: Wheel Speed Sensor Electrical Connector
    GM2375858Courtesy of GENERAL MOTORS COMPANY
  4. Lift the wheelhouse liner away from the body slightly and connect the wheel speed sensor electrical connector (1).
  5. Install the forward lower wheelhouse liner pushpin.
  6. Install the wheel speed sensor harness retainer (2) to the frame rail.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Perform the Diagnostic System Check - Vehicle .
