Center Console Components

Center Console Components

Component Name Callout
T10E Keyless Entry Antenna - Rear Compartment 1
T10K Keyless Entry Antenna - Center Console Rear 2
X80H Accessory Power Receptacle - Center Console 3
X92 USB Receptacle 4
X83 Auxiliary Audio Input 5
X80L Accessory Power Receptacle - Rear Console 6

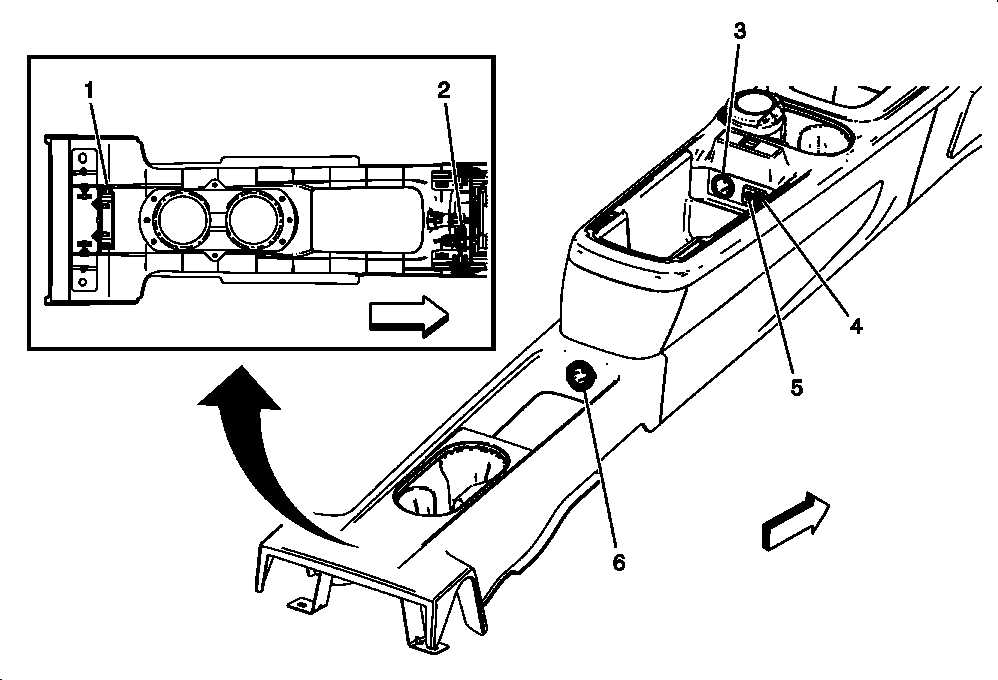

Fig 1: Locating Center Console Components
GM2476932Courtesy of GENERAL MOTORS COMPANY
