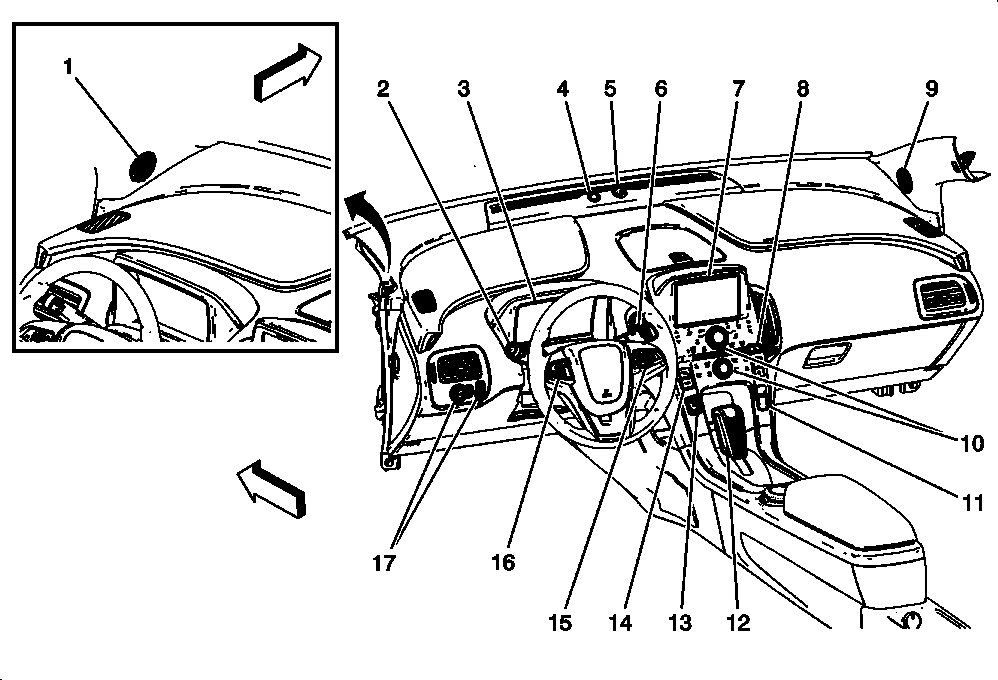

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Component Name | Callout |
|---|---|
| P19H Speaker - Left Front Tweeter | 1 |
| S78 Turn Signal/Multifunction Switch | 2 |
| P16 Instrument Cluster | 3 |
| P36 Battery State of Charge Indicator | 4 |
| B10B Ambient Light/Sunload Sensor | 5 |
| S82 Windshield Wiper/Washer Switch | 6 |
| P17 Info Display Module | 7 |
| S26 Hazard Warning Switch | 8 |
| P19V Speaker - Right Front Tweeter | 9 |
| A20 Radio/HVAC Controls | 10 |
| S91 Park Brake Control Switch | 11 |
| S3 Transmission Shift Lever | 12 |
| S83 Vehicle On/Off Switch | 13 |
| S126 Drive Mode Select Switch | 14 |
| S70R Steering Wheel Controls Switch - Right | 15 |
| S70L Steering Wheel Controls Switch - Left | 16 |
| S16 Driver Information Center Switch | 17 |
