Instrument Panel- HVAC Components
Instrument Panel- HVAC Components

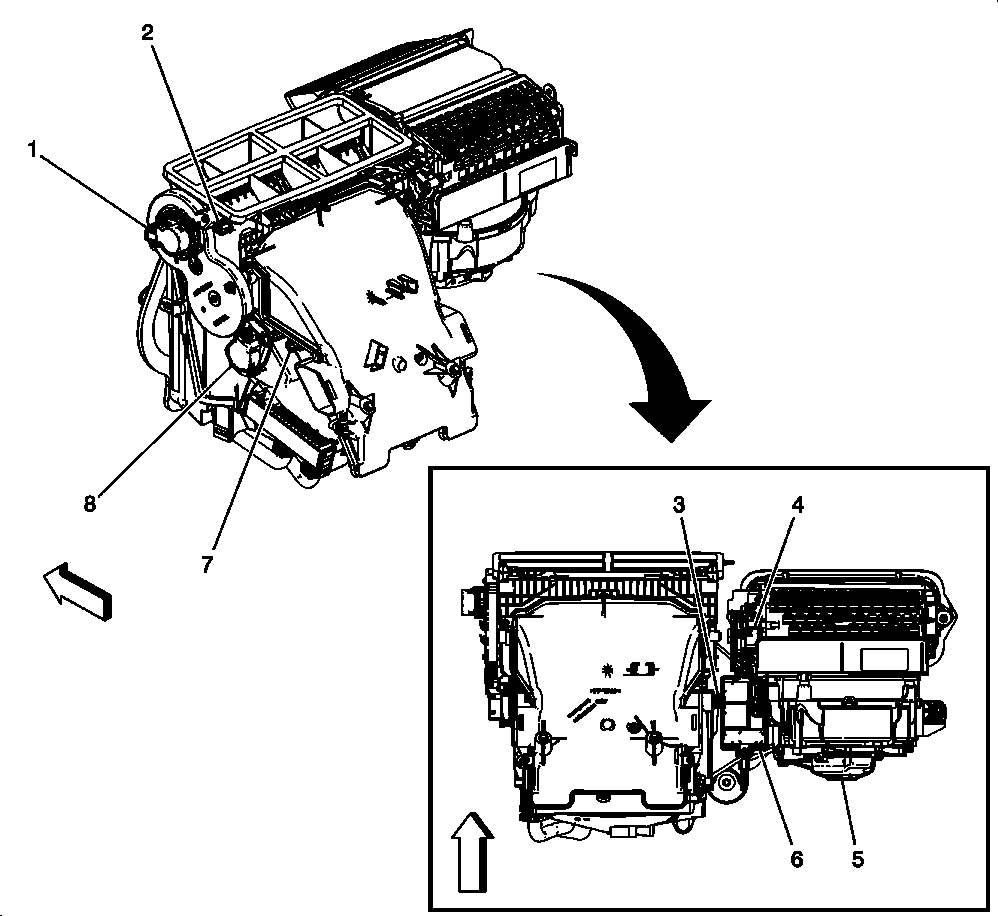

| Component Name | Callout |
|---|---|
| M37 Mode Door Actuator | 1 |
| B7F Air Temperature Sensor - Duct Upper | 2 |
| B39 A/C Evaporator Temperature Sensor | 3 |
| M46 Air Recirculation Door Motor | 4 |
| M8 Blower Motor | 5 |
| K8 Blower Motor Control Module | 6 |
| B7B Air Temperature Sensor - Duct Lower | 7 |
| M6 Air Temperature Door Actuator | 8 |
