Steering Column Components

Steering Column Components

Component Name Callout
F107 Steering Wheel Air Bag 1
X85 Steering Wheel Air Bag Coil 2
S33 Horn Switch 3
B99 Steering Wheel Angle Sensor 4

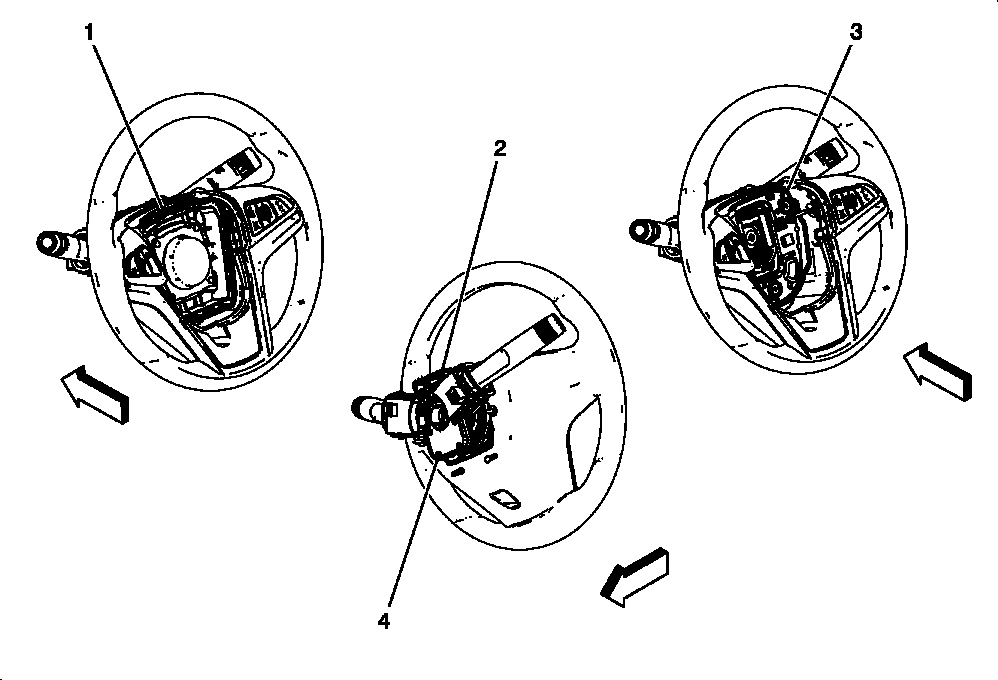

Fig 1: Locating Steering Column Components
GM2476934Courtesy of GENERAL MOTORS COMPANY
