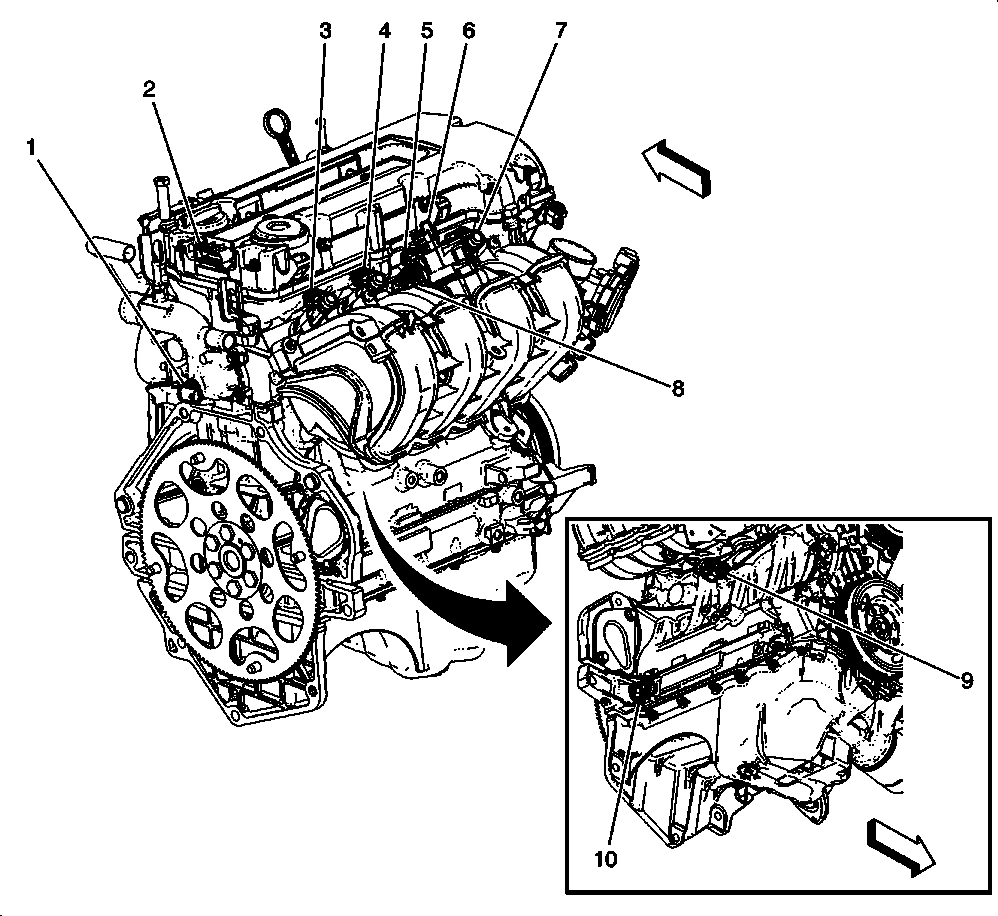

Left Rear of Engine Components
Left Rear of Engine Components
| Component Name | Callout |
|---|---|
| B34 Engine Coolant Temperature Sensor | 1 |
| K35 Ignition Coil Module | 2 |
| Q17D Fuel Injector 4 | 3 |
| Q17C Fuel Injector 3 | 4 |
| Q12 Evaporative Emission Purge Solenoid Valve | 5 |
| Q17B Fuel Injector 2 | 6 |
| Q17A Fuel Injector 1 | 7 |
| B74 Manifold Absolute Pressure Sensor | 8 |
| B68 Knock Sensor | 9 |
| B26 Crankshaft Position Sensor | 10 |
