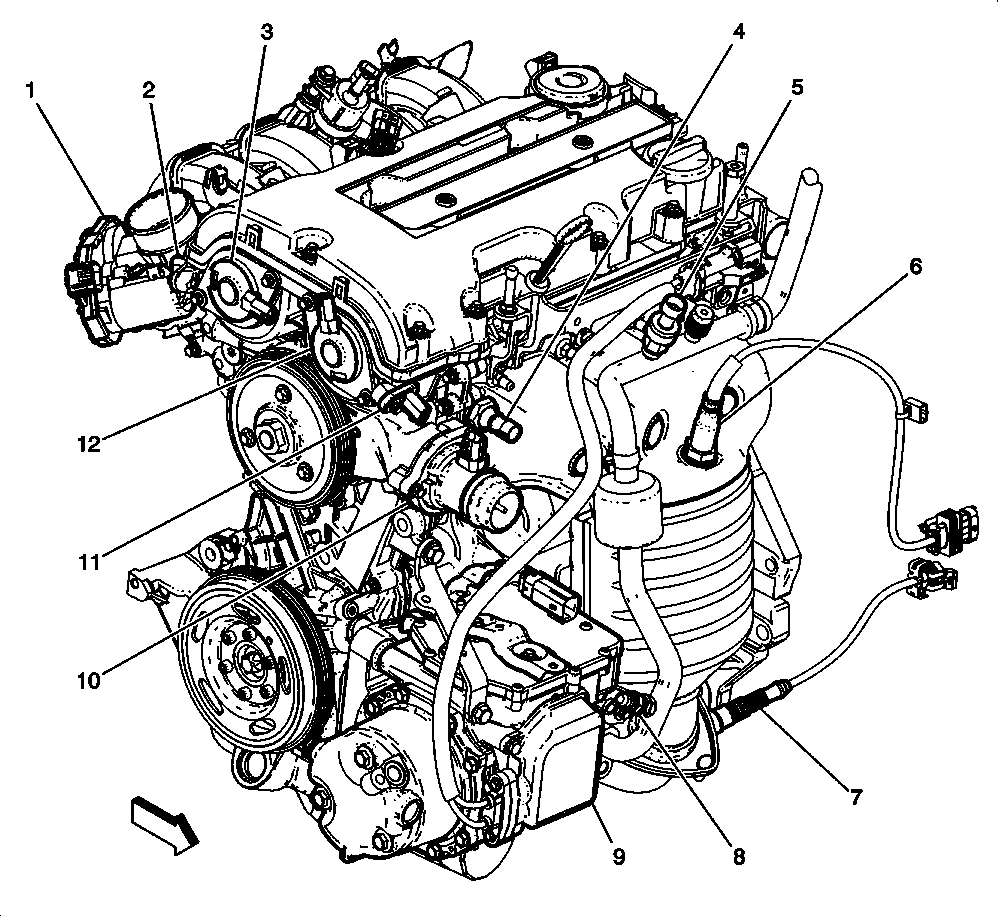

Right Front of Engine Components
Right Front of Engine Components
| Component Name | Callout |
|---|---|
| Q38 Throttle Body | 1 |
| B23F Camshaft Position Sensor - Intake | 2 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake | 3 |
| B37 Engine Oil Pressure Switch | 4 |
| B1C A/C Low Side Pressure Sensor | 5 |
| B52A Heated Oxygen Sensor 1 | 6 |
| B52B Heated Oxygen Sensor 2 | 7 |
| B222 A/C Refrigerant Low Side Temperature Sensor | 8 |
| G1 A/C Compressor | 9 |
| E41 Engine Coolant Thermostat Heater | 10 |
| B23E Camshaft Position Sensor - Exhaust | 11 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 12 |
