Catalytic Converter Replacement

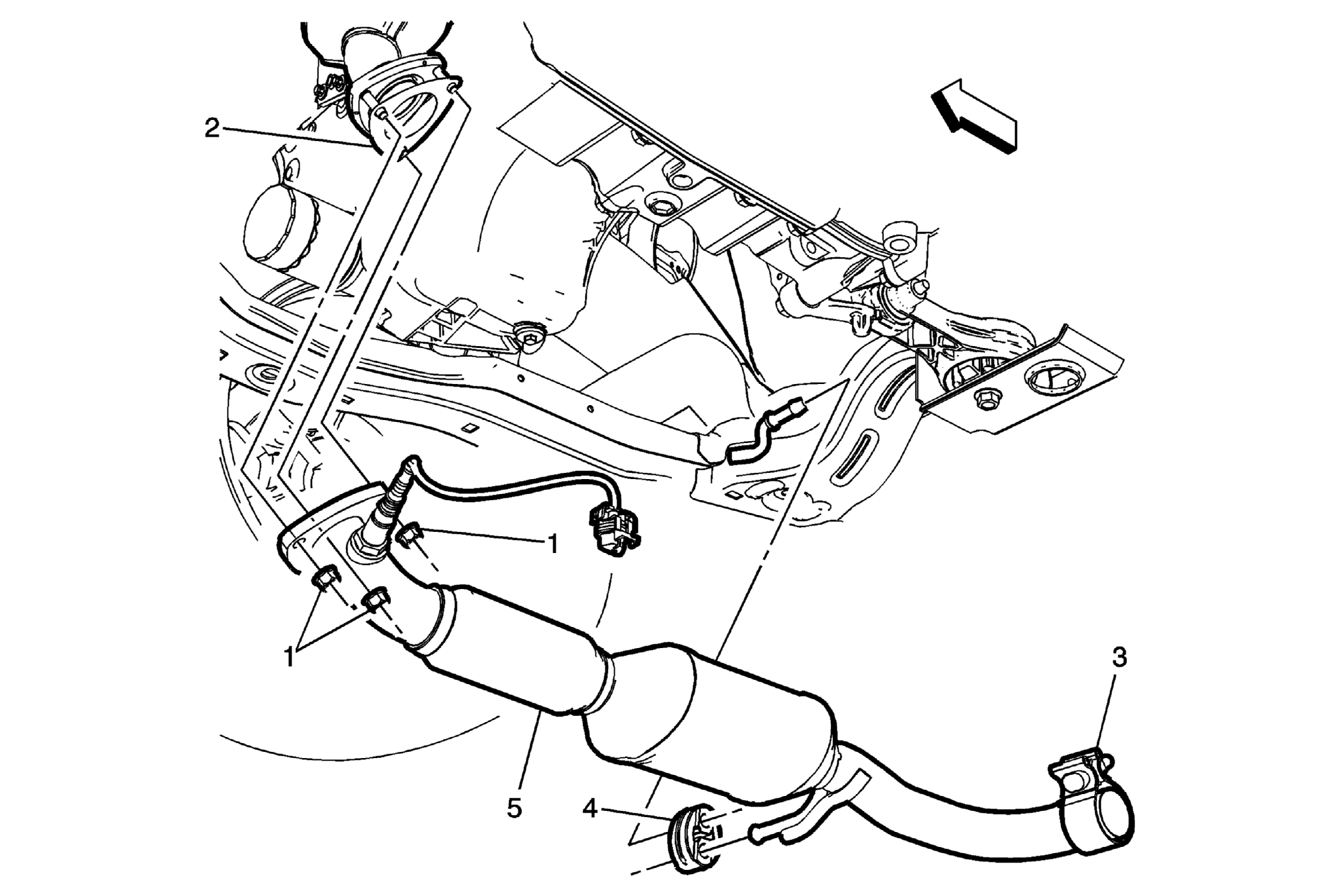

Fig 1: Catalytic Converter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death. WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the heated oxygen sensor. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .
1	Catalytic Converter Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Exhaust Gasket TIP: Replace the gasket with a NEW one.
3	Exhaust Clamp NOTE: If reinstalling the original intermediate pipe, the tail pipe/muffler band clamp (3) should be replaced. Mark the position of the band clamp on the intermediate exhaust pipe. Remove the band clamp by grinding the welds. Install the NEW band clamp on the intermediate pipe. Position the NEW band clamp using the alignment mark created previously. Ensure that the clamp is rotated such that the band portion covers the slot on the intermediate pipe. Tighten 55 N.m (41 lb ft)
4	Exhaust Isolator
5	Catalytic Converter TIP: If replacing the catalytic converter, transfer the heated oxygen sensor over to the new catalytic converter.
