Removal Procedure

WARNING:

Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death.

WARNING:

Refer to Hot Exhaust System Warning .

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

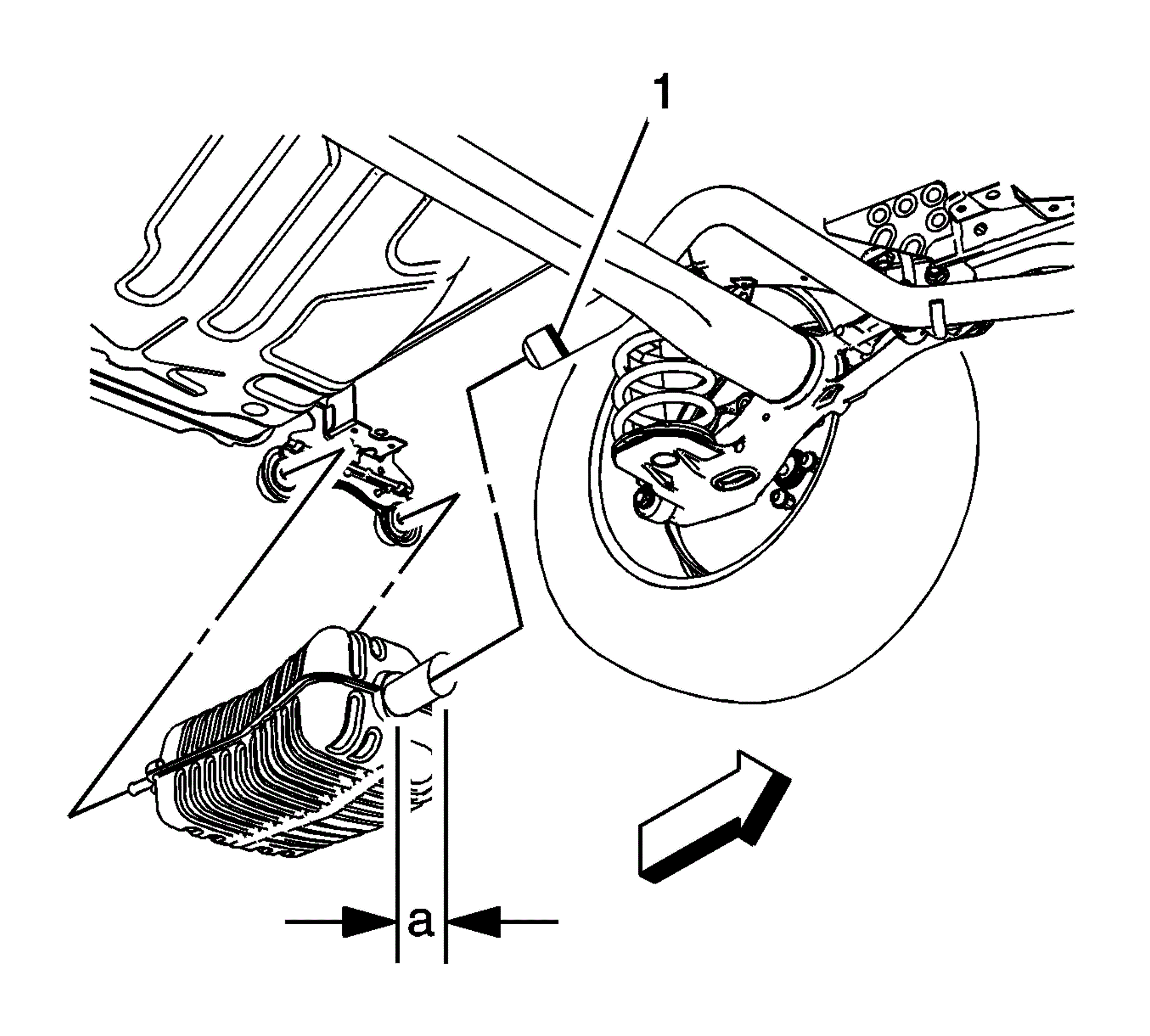

Fig 1: Cutting Exhaust Resonator Pipe 60 Mm, From Edge Of Muffler Flange

GM2413923

Courtesy of GENERAL MOTORS COMPANY

Make a cut on the exhaust pipe (1), a distance of 60 mm, from the edge of the muffler flange (a).

Fig 2: Rear Exhaust Muffler Bracket Bolts

GM2398019

Courtesy of GENERAL MOTORS COMPANY

If replacing the rear muffler, remove the rear exhaust muffler bracket bolts (1) and lower to the floor.

Fig 3: Exhaust Muffler Clamp Nut

GM2412891

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Replace exhaust muffler clamp with a NEW clamp.

Loosen the exhaust muffler clamp (1), from the 3-way catalytic converter.

Fig 4: Exhaust Muffler Isolator

GM2398022

Courtesy of GENERAL MOTORS COMPANY

Remove the exhaust pipe from the exhaust isolator (1).

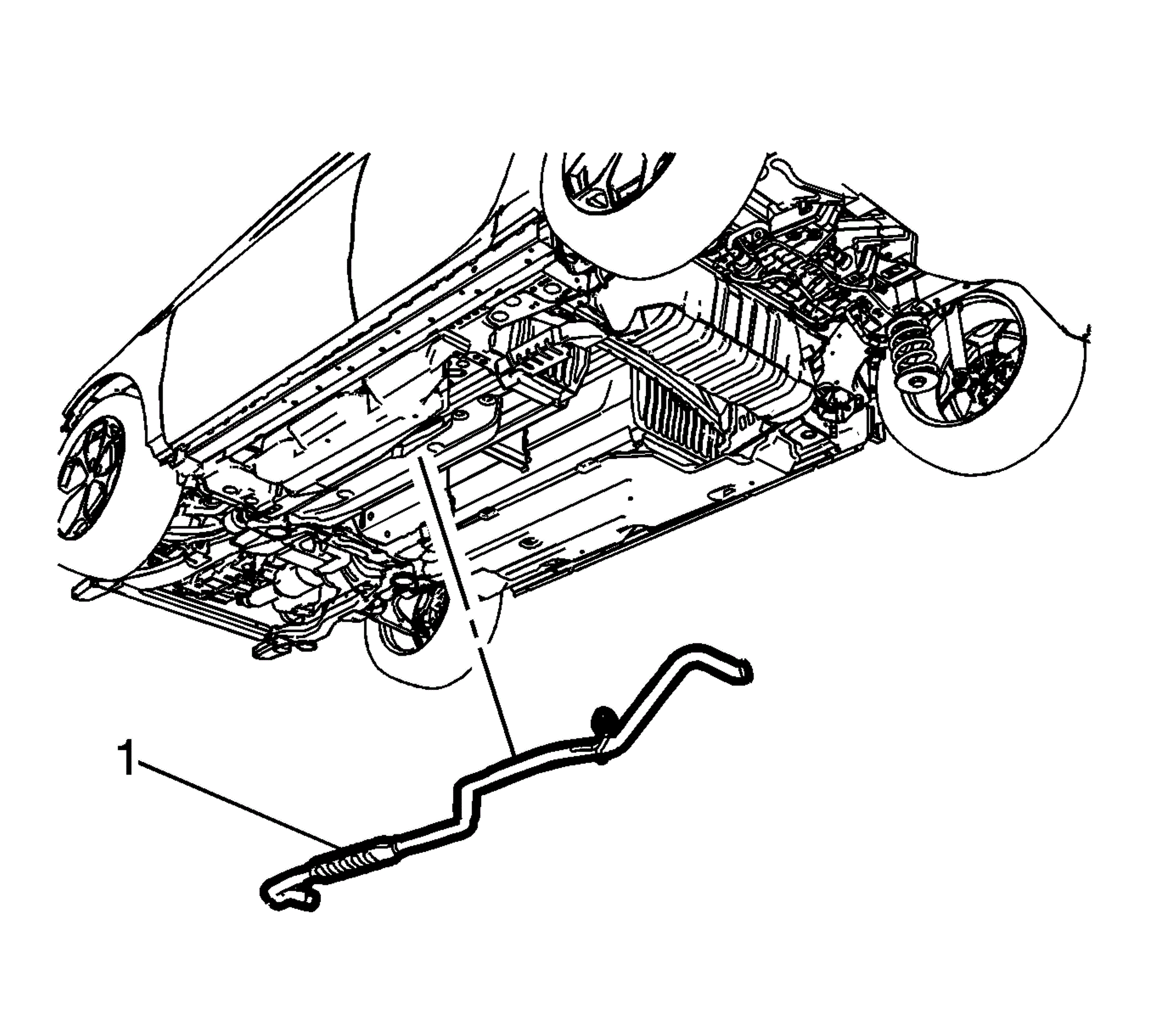

Fig 5: Exhaust Resonator Pipe

GM2483445

Courtesy of GENERAL MOTORS COMPANY

Carefully lower the exhaust pipe (1) from the vehicle.
