Air Cleaner Element Replacement

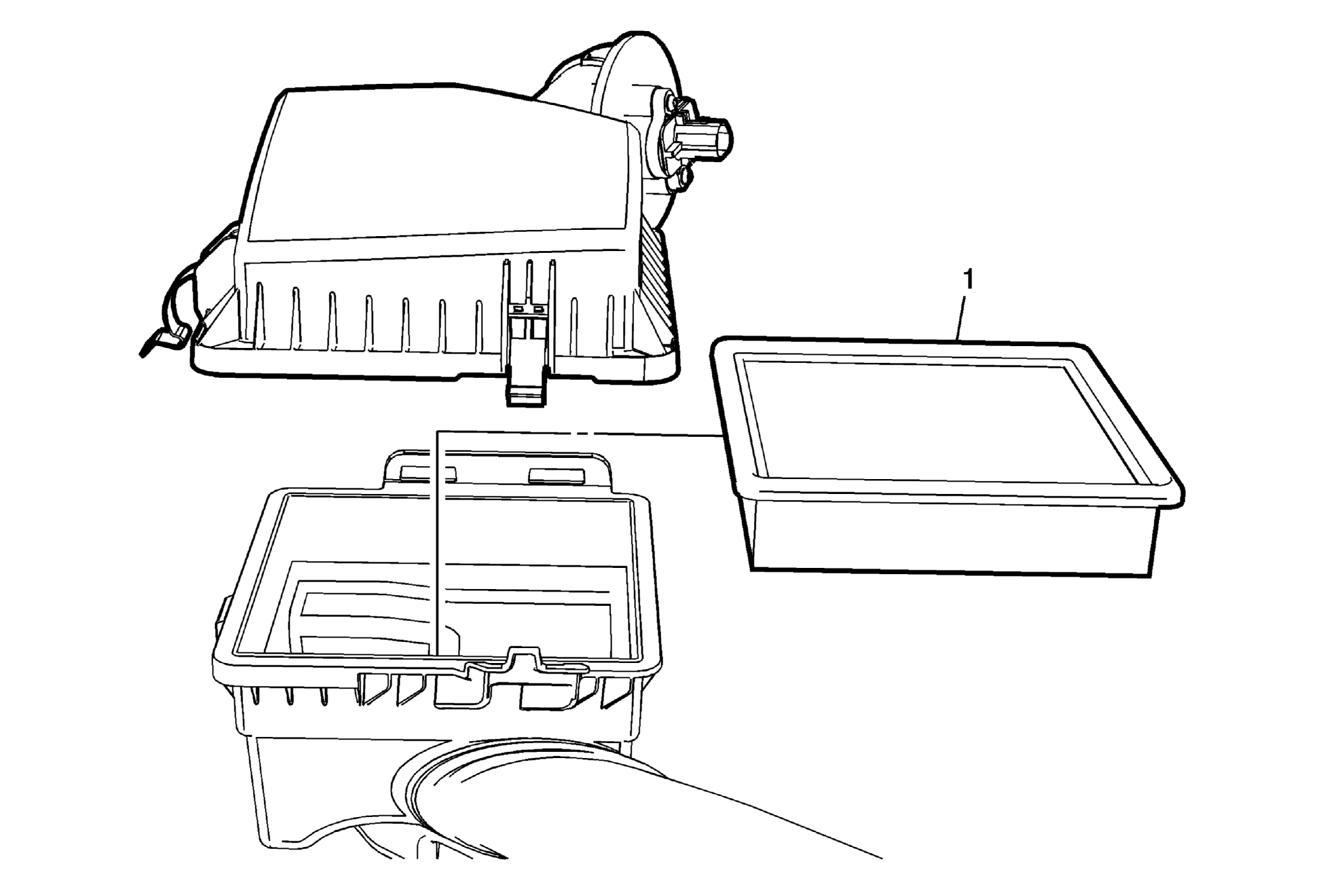

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner resonator duct from the air cleaner. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Air Cleaner Element Procedure Disconnect the mass airflow electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner resonator duct from the air cleaner. Refer to Air Cleaner Resonator Outlet Duct Replacement .

Air Cleaner Element

Procedure
