Camshaft Position Sensor Replacement (Intake)

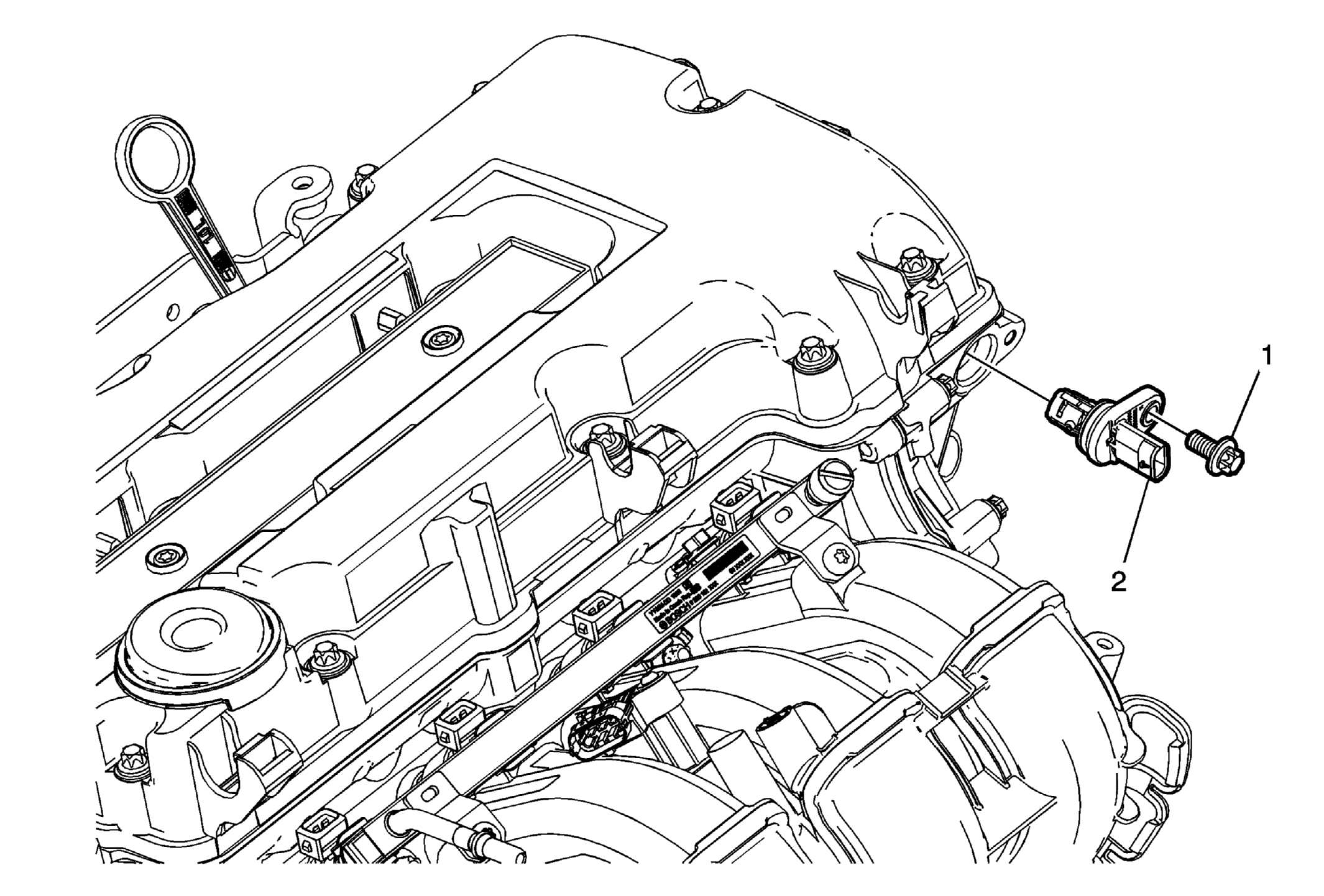

Fig 1: Camshaft Position Sensor (Intake)
GM2378035Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Replacement (Intake)

Callout Component Name
Preliminary Procedure
Remove the air cleaner resonator duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1 Camshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
