Engine Control Module Bracket Replacement

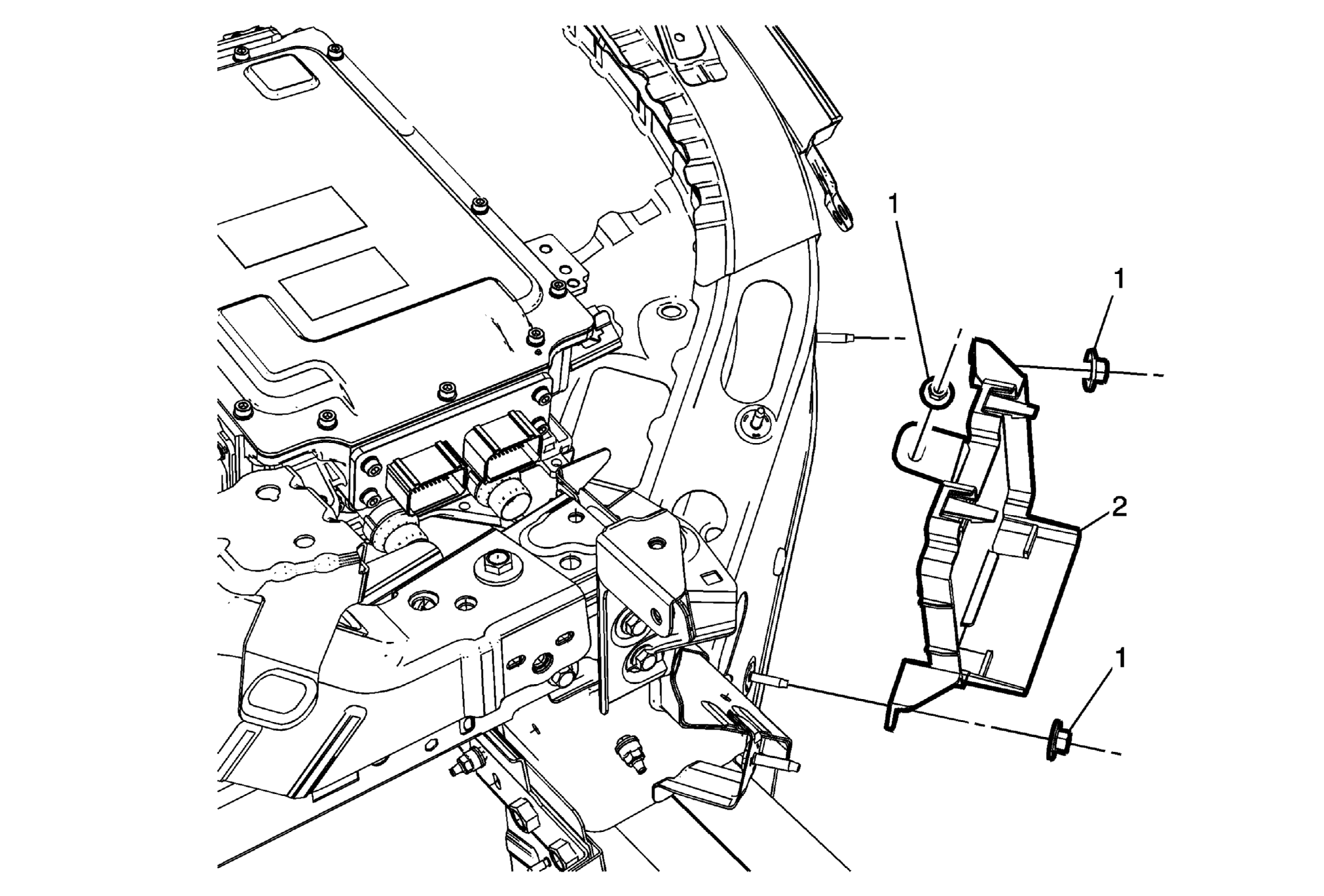

Fig 1: Engine Control Module Bracket
GM2387123Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the electronic control module. Refer to Engine Control Module Replacement .
1 Engine Control Module Bracket Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m(80 lb in)
2 Engine Control Module Bracket
