Installation Procedure
- Install the injectors. Refer to Fuel Injector Replacement .
- Use new O-rings and lubricate with clean engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers .

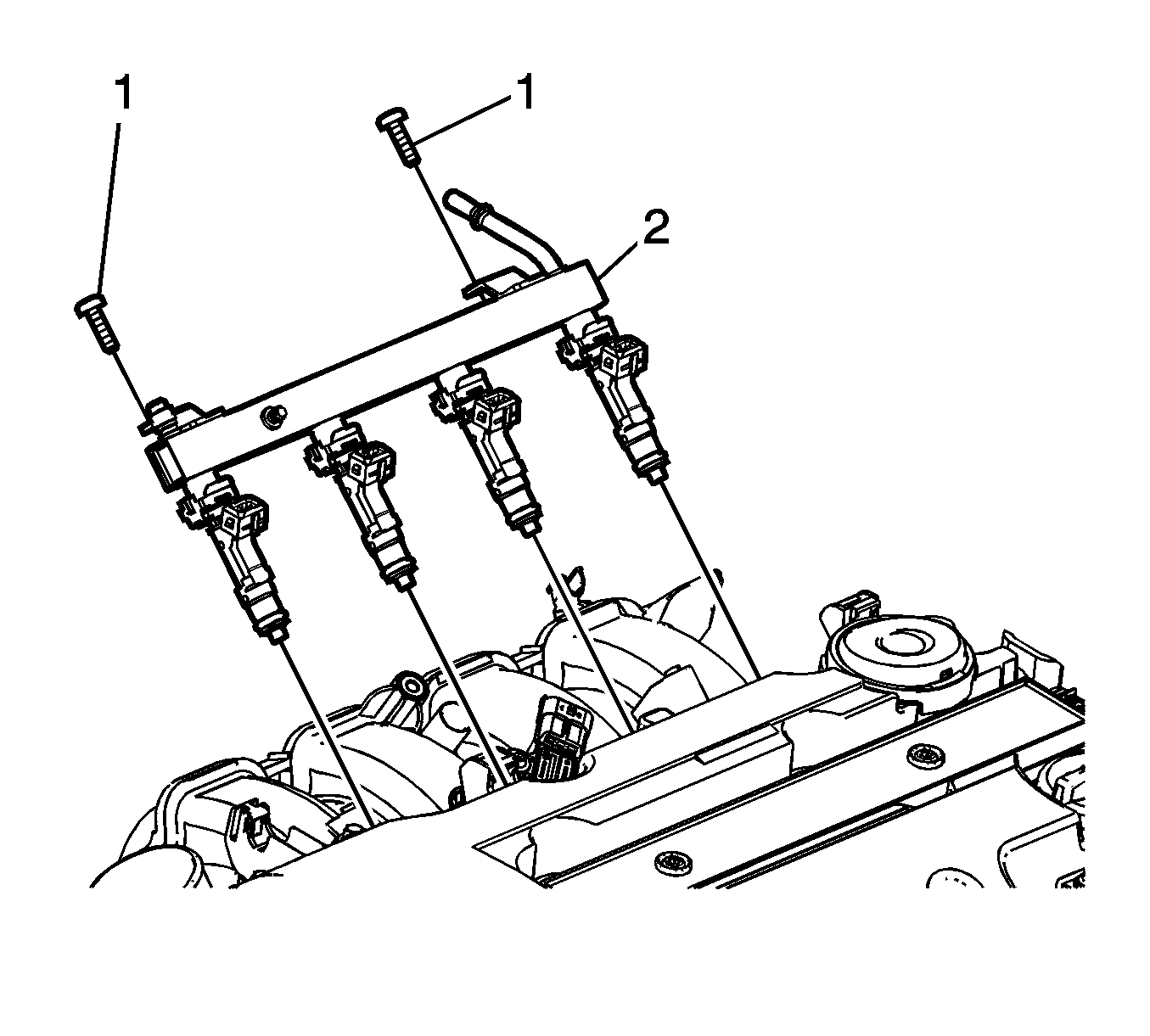

- Install the fuel injection fuel rail assembly (2) and tighten the fasteners to 8 N.m (71 lb in).

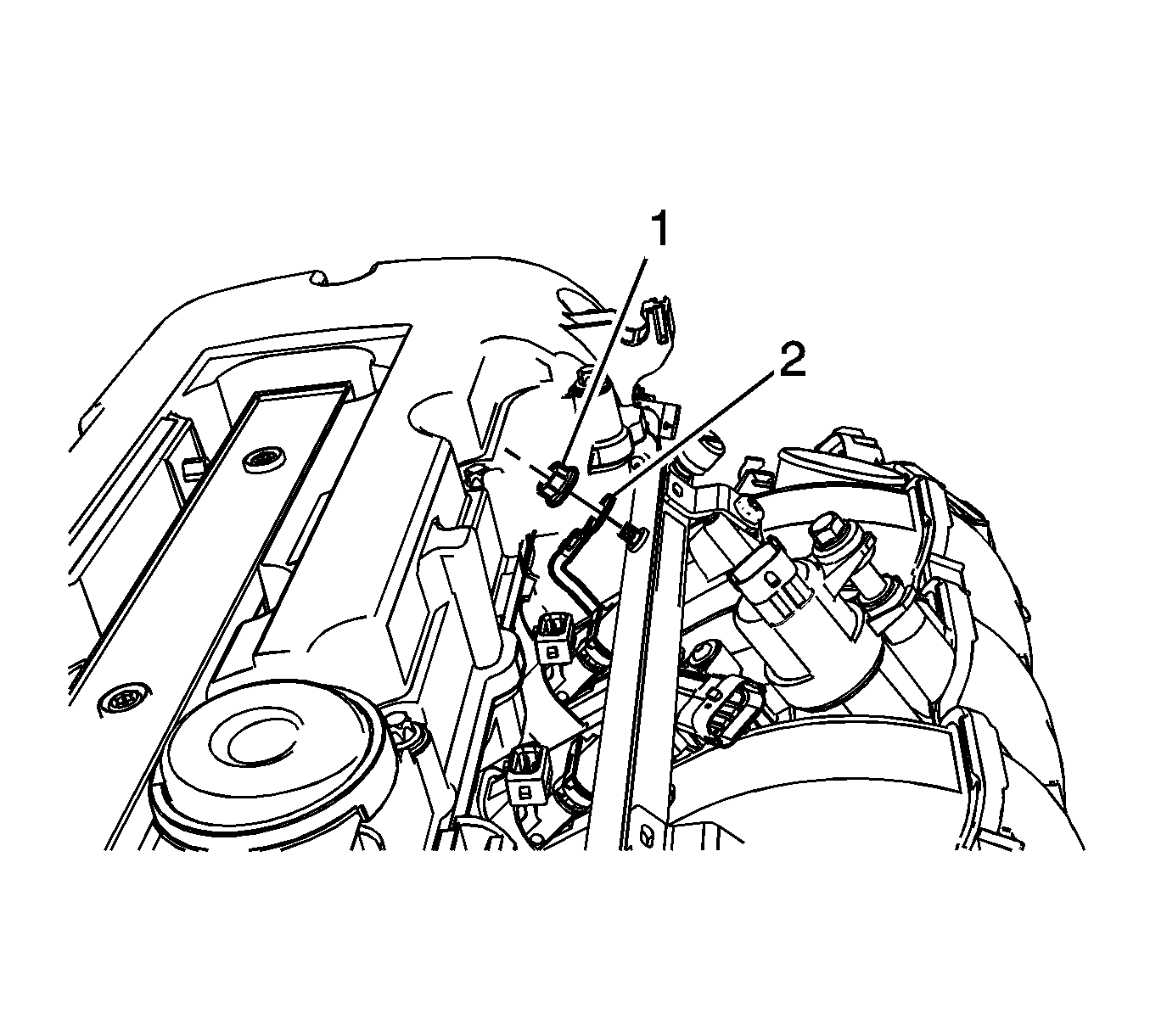

- Reposition the ground cable (2), install the fuel injection ground fastener (1) and tighten to 4 N.m (35 lb in).
- Connect the electrical connectors.
- Connect the fuel feed pipe from the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service .
- Install the resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
CAUTION:
Refer to Fastener Caution .
