Fuel Injector Replacement

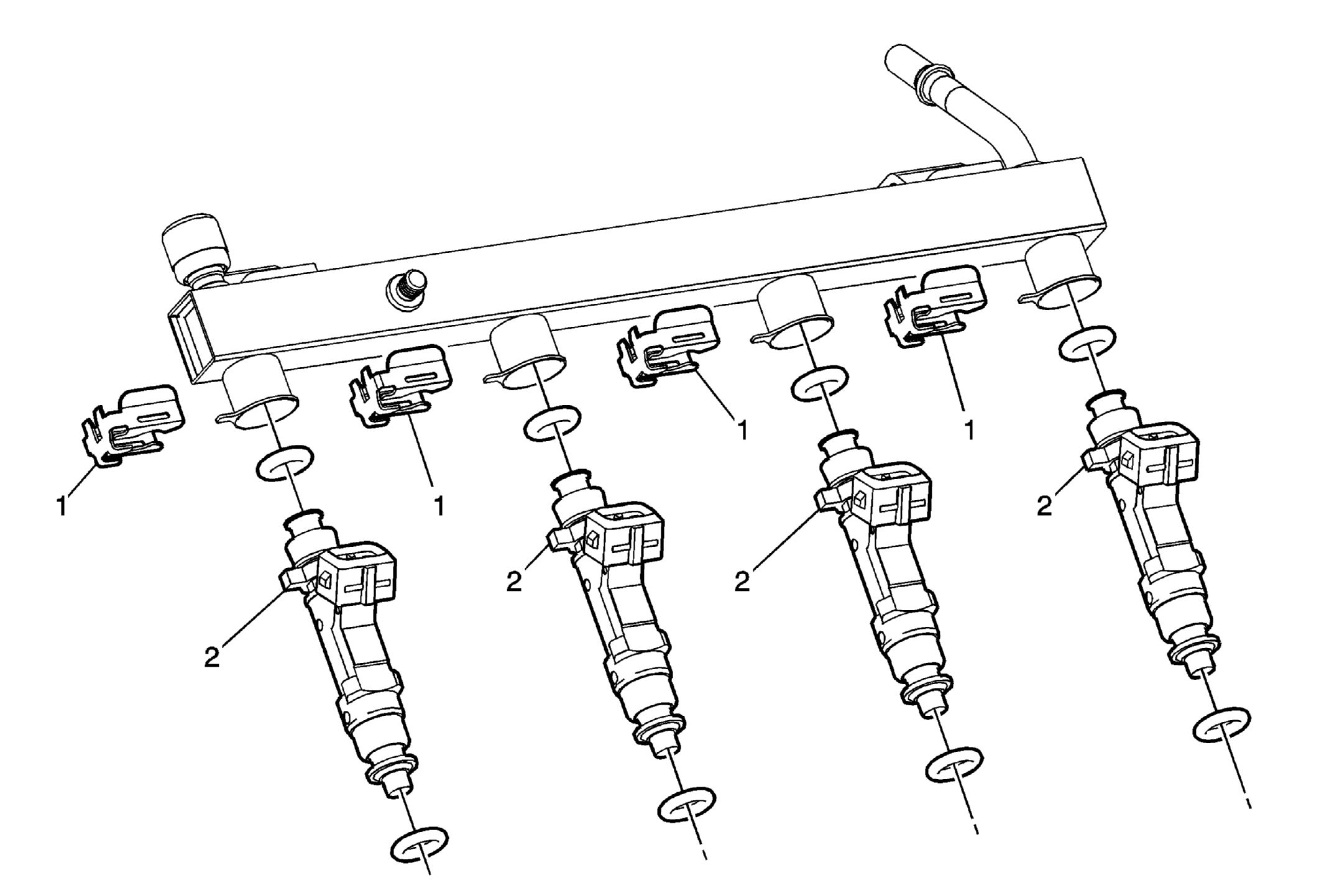

Fig 1: Fuel Injectors
GM2378056Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Fuel Injector Clip (Qty: 4)
2 Fuel Injector (Qty: 4)
Procedure
Use New fuel injector O-rings.
