Fuel Pump Flow Control Module Replacement

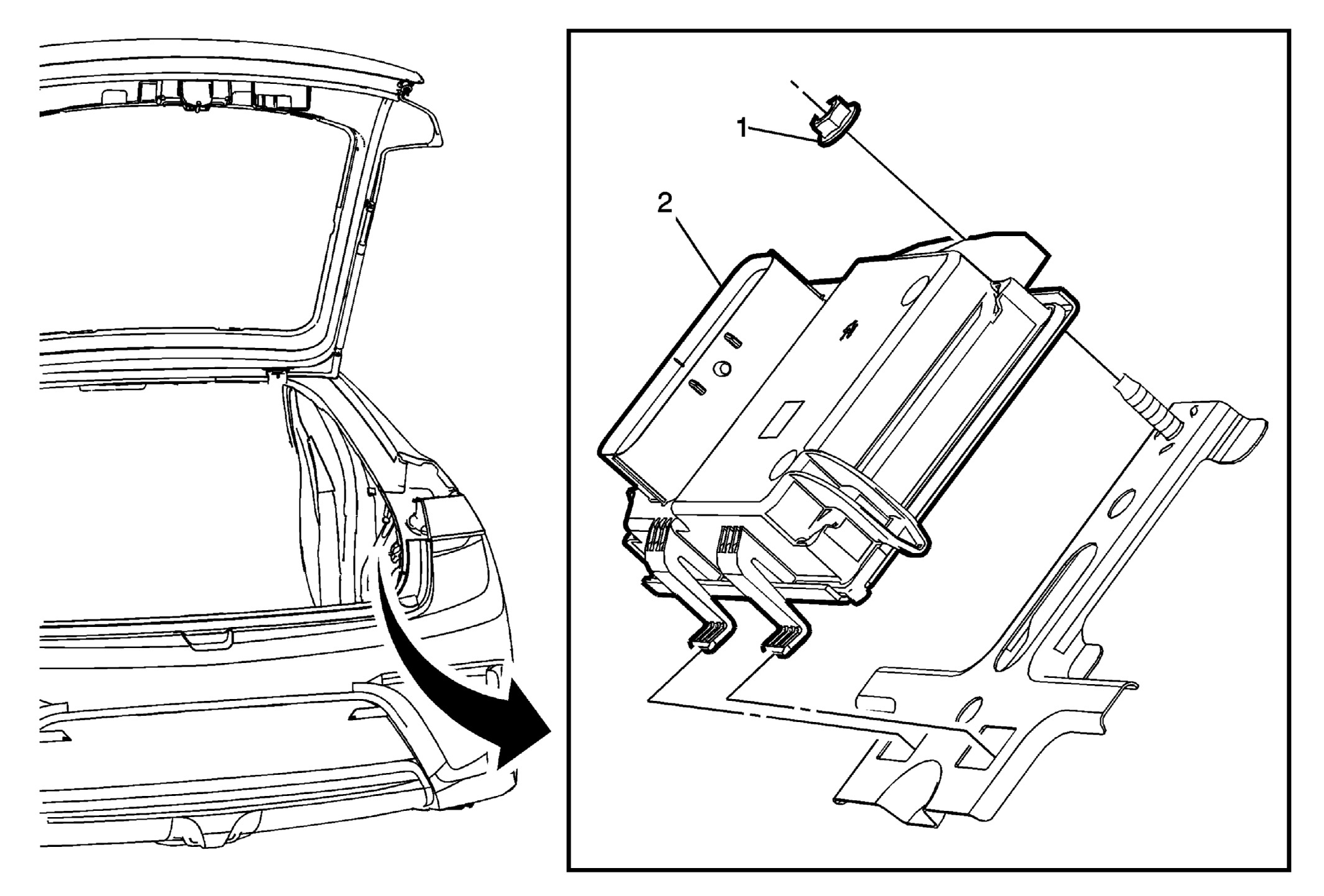

Fig 1: Fuel Pump Flow Control Module
GM2381246Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Flow Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the quarter trim panel. Refer to Quarter Inner Trim Finish Panel Replacement .
1 Fuel Pump Flow Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m(89 lb in)
2 Fuel Pump Flow Control Module
Procedure
If replacing, reprogram the control module. Refer to Control Module References
