Fuel Tank Filler Pipe Replacement

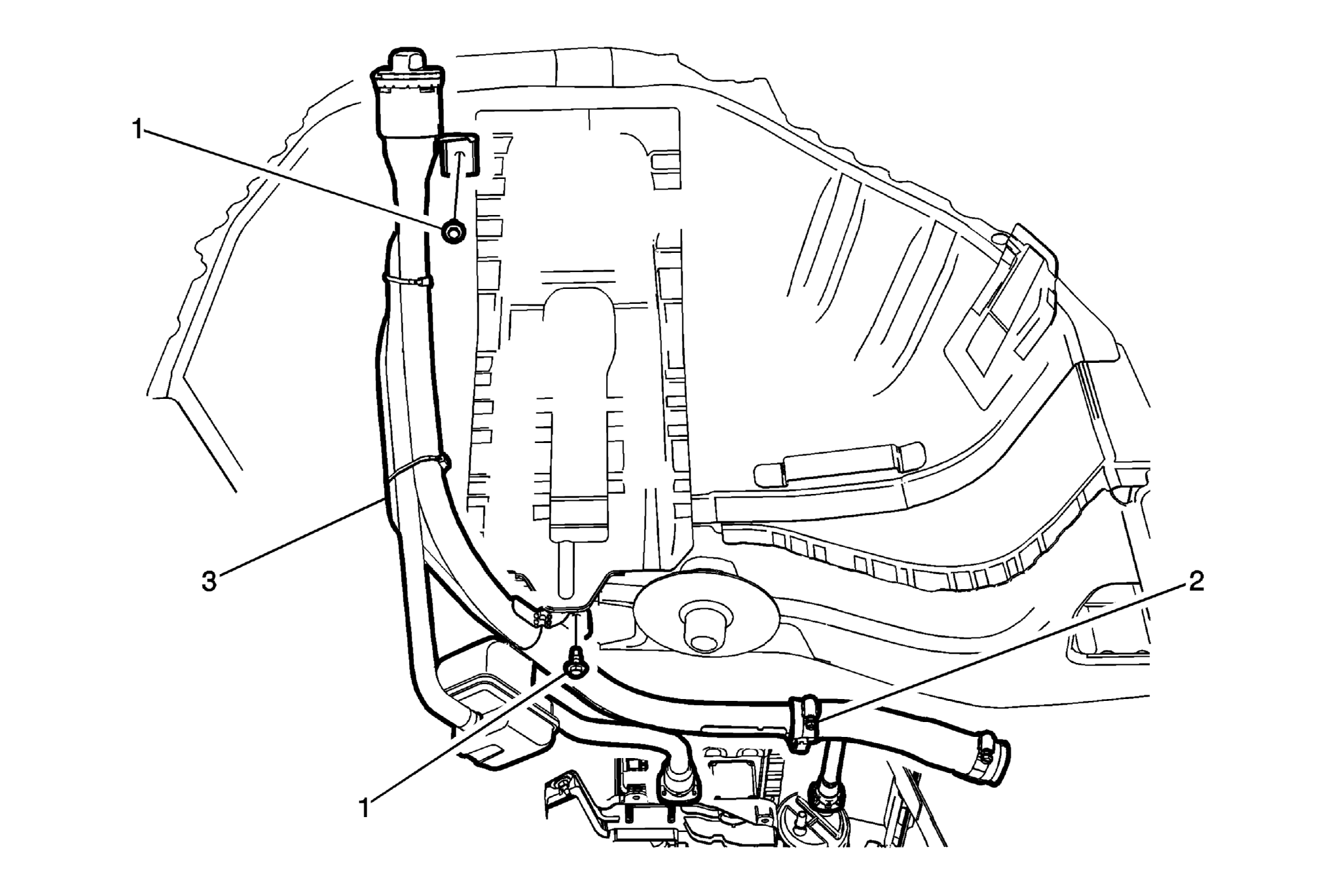

Fig 1: Fuel Tank Filler Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedure Remove the filler cap. Remove the right rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement . Disconnect the evaporative emission canister quick connect pipes. Refer to Plastic Collar Quick Connect Fitting Service
1	Fuel Tank Filler Pipe Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m(80 lb in)
2	Fuel Tank Filler Pipe Hose Clamp Tighten 4 N.m(35 lb in)
3	Fuel Tank Filler Pipe
