Fuel Tank Pressure Sensor Replacement

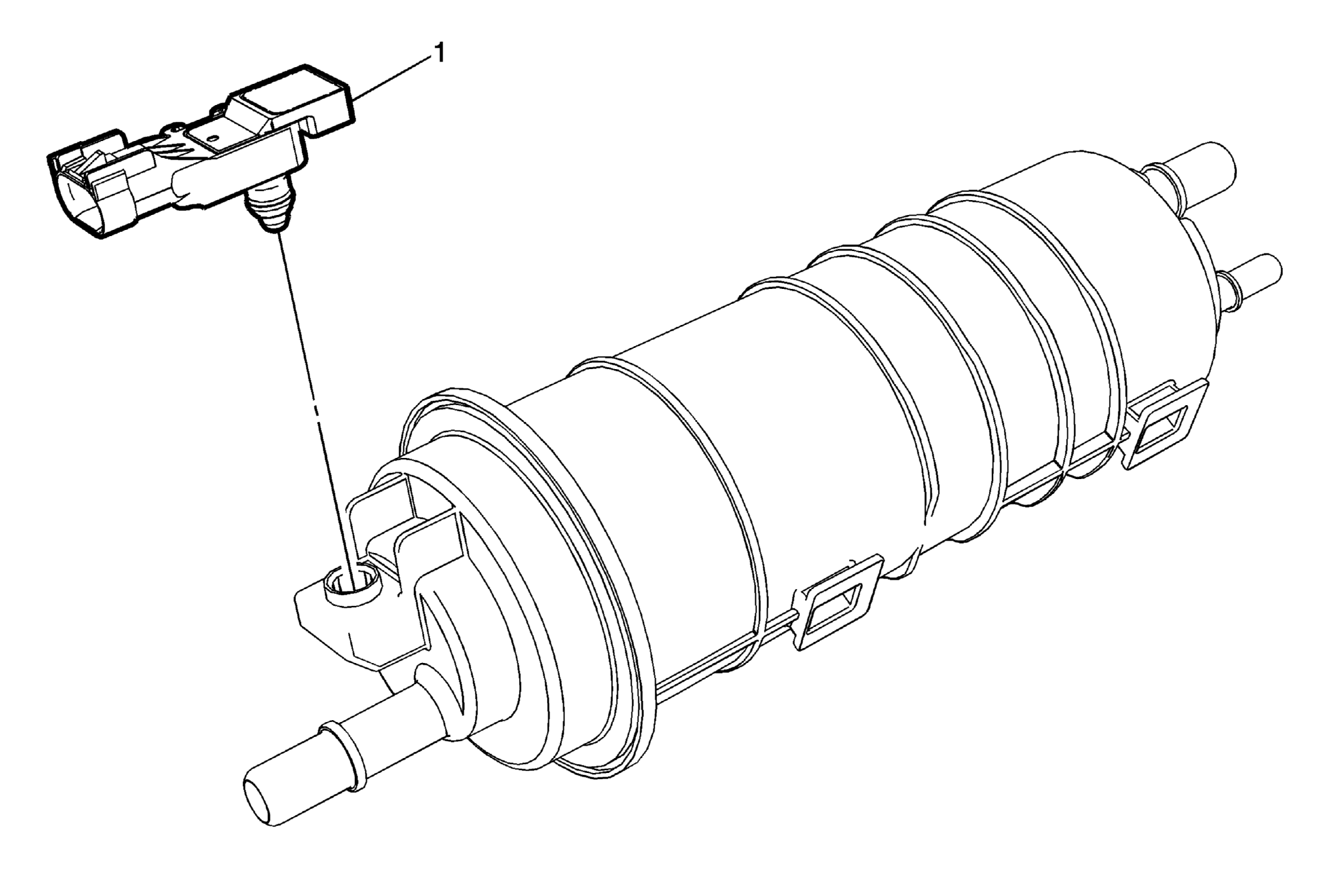

Fig 1: Fuel Tank Pressure Sensor
GM2386730Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the carbon canister. Refer to Evaporative Emission Canister Replacement .
1 Fuel Tank Fuel Pressure Sensor
Procedure
Disconnect the electrical connector.
