Ignition Coil Replacement

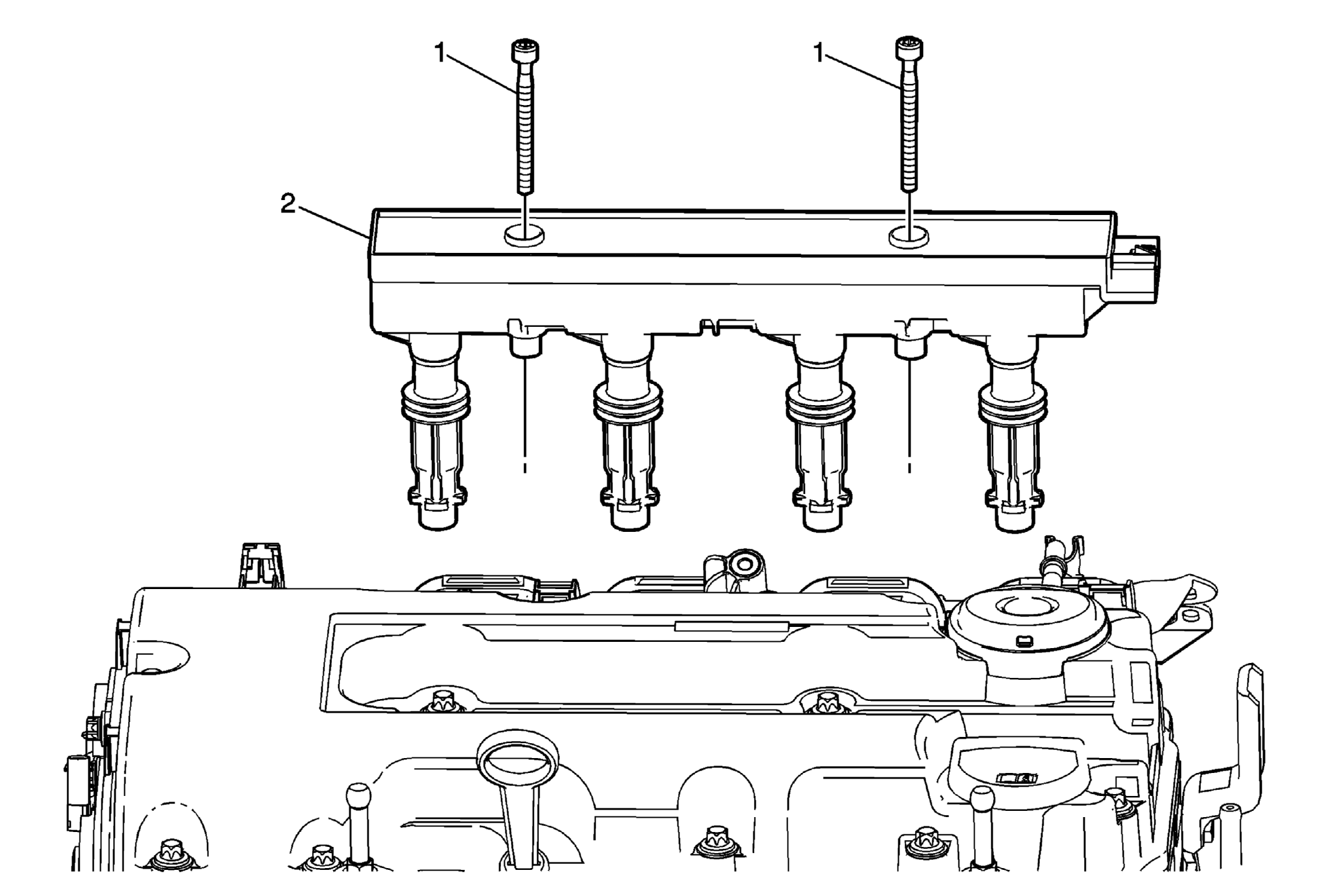

Fig 1: Ignition Coils

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner resonator. Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Ignition Coil Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m(71 lb in) Special Tools EN 6009 Remover and Installer Ignition Module For equivalent regional tools, Refer to Special Tools (Diagnostic Tools) , Special Tools (Repair Tools)
2	Ignition Coil Procedure Disconnect the electrical connector.
