Manifold Absolute Pressure Sensor Replacement

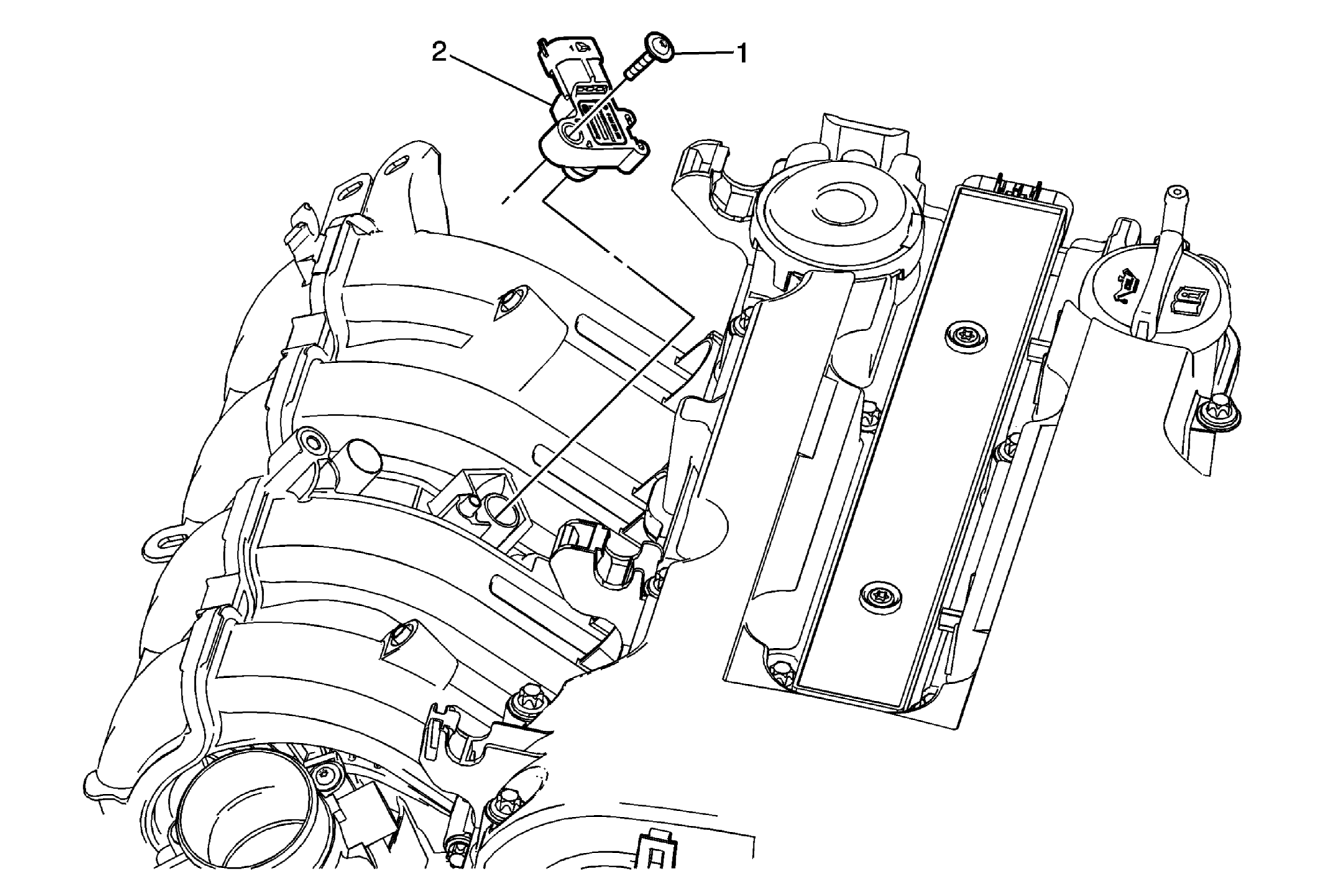

Fig 1: Manifold Absolute Pressure Sensor
GM2377864Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel injection fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Manifold Absolute Pressure Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m(44 lb in)
2 Manifold Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
