Communication Interface Module Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

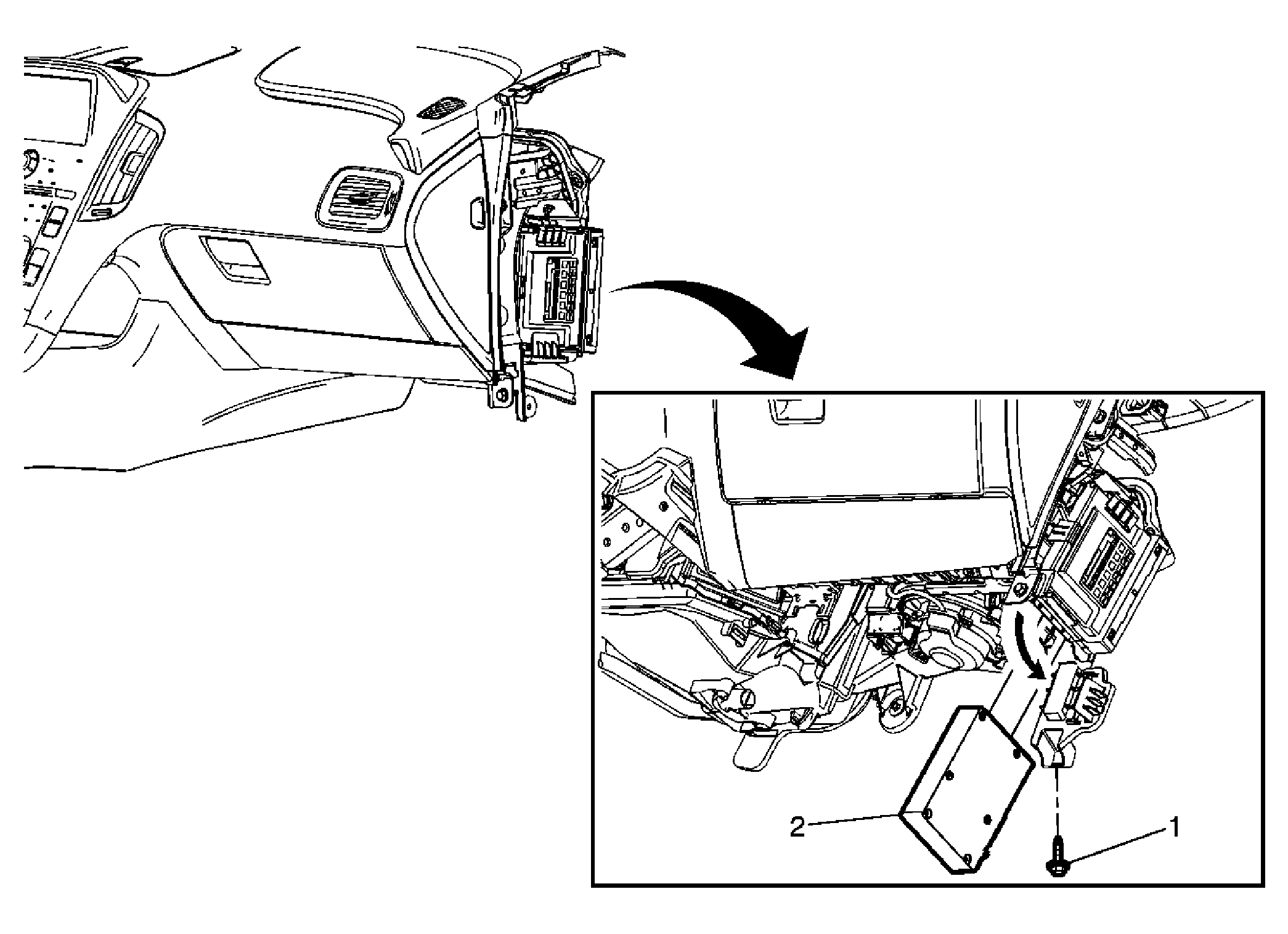

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement
1	Communication Interface Module Bracket Bolt CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Procedure Open the bottom of the hinged bracket and slide the module downward. Disconnect the electrical connections. If replacing the communication interface module be sure to transfer wireless communication interface antenna, if equipped. For programming and set up procedures, refer to Control Module References

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement

Communication Interface Module Bracket Bolt

CAUTION: Refer to Fastener Caution .

Communication Interface Module

Procedure

Open the bottom of the hinged bracket and slide the module downward.
Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer wireless communication interface antenna, if equipped.
For programming and set up procedures, refer to Control Module References
