Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Front)

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

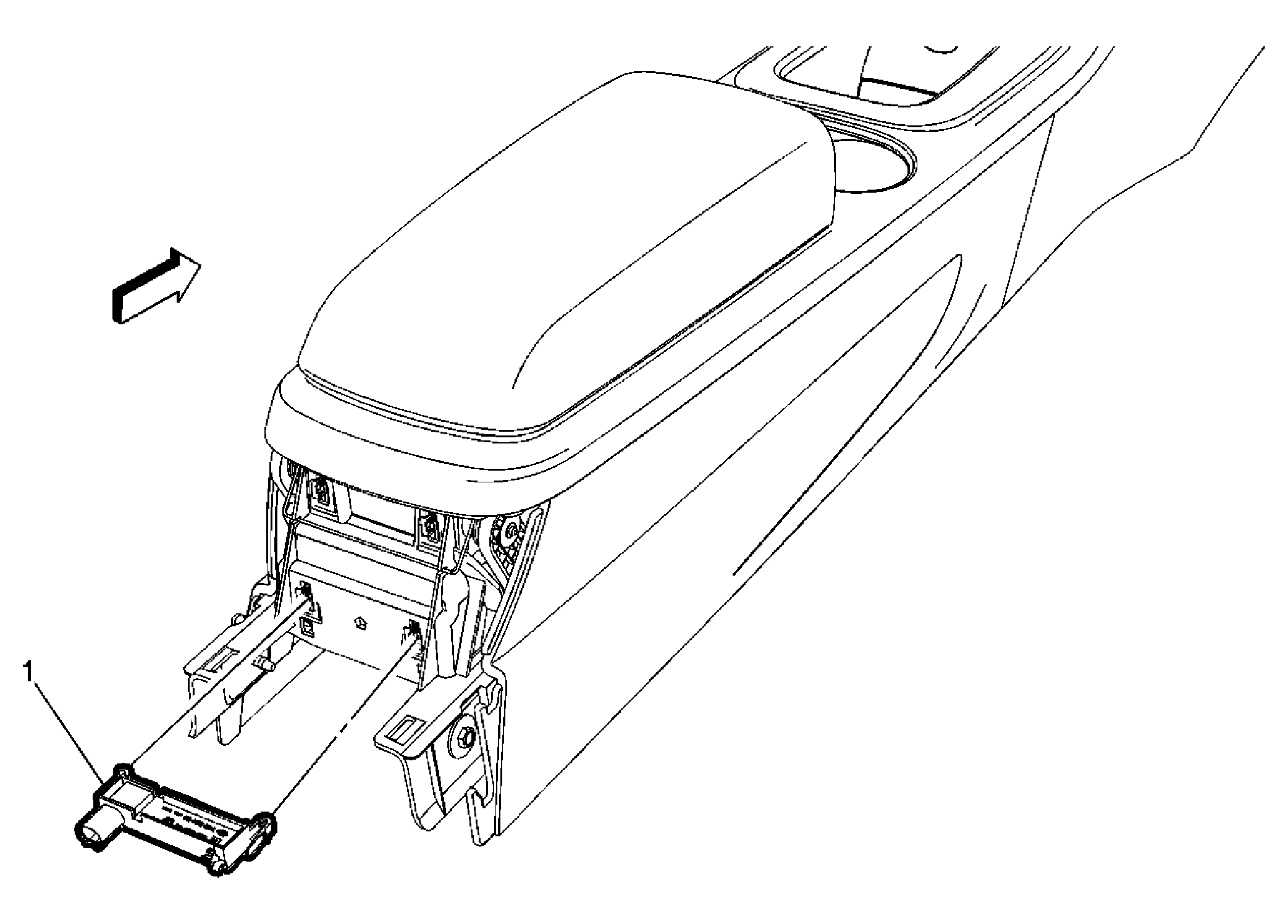

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console (Front)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Disconnect the electrical connector. Unsnap antenna from the floor console.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement

Ignition Lock Key Transmitter Antenna Assembly

Procedure

Disconnect the electrical connector.
Unsnap antenna from the floor console.
