Front Seat Belt Buckle Replacement

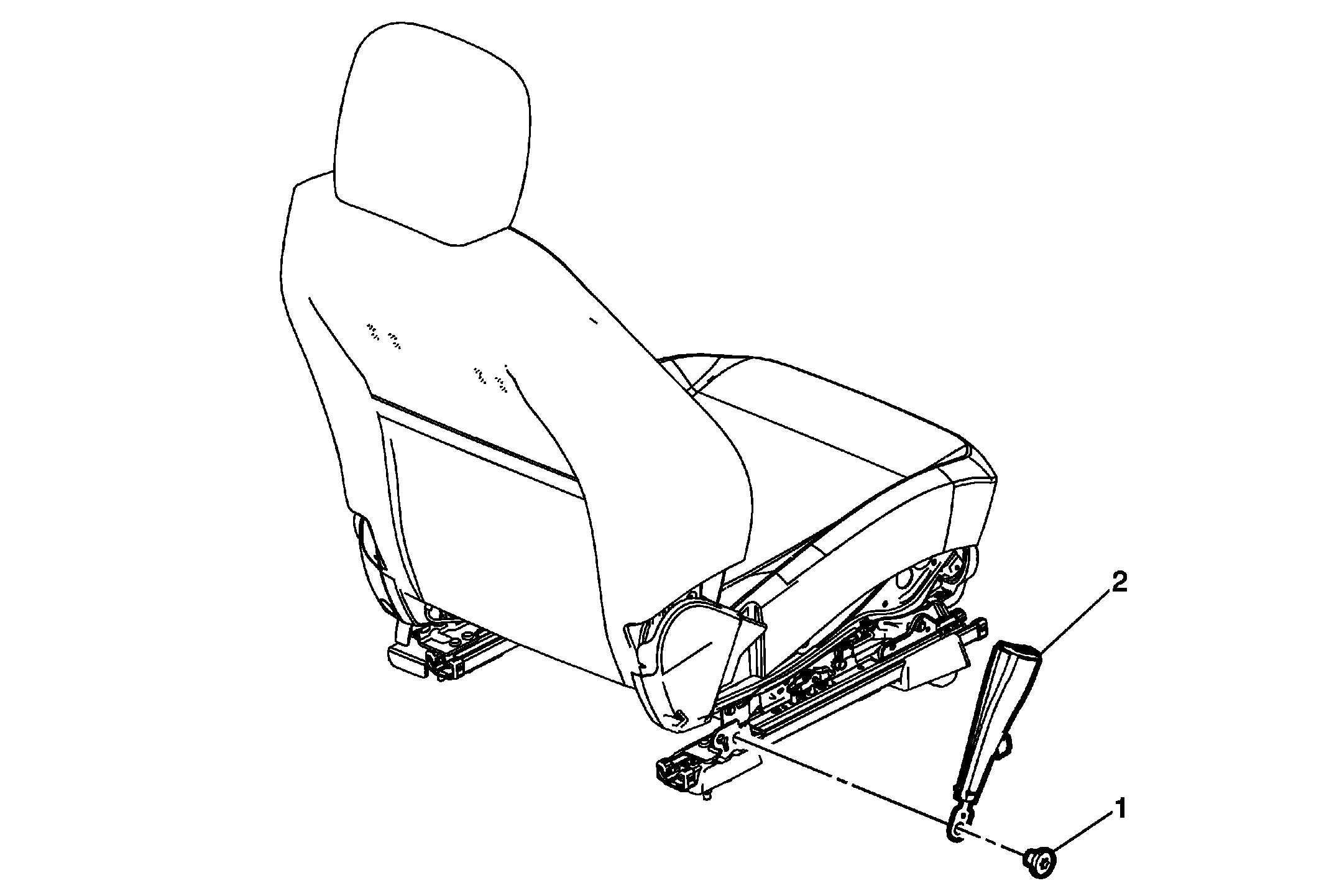

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat assembly. Refer to Driver or Passenger Seat Replacement .
1	Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Seat (Buckle Side) Belt Assembly Procedure Disconnect the electrical connector.
