Shoulder Belt Replacement - Rear

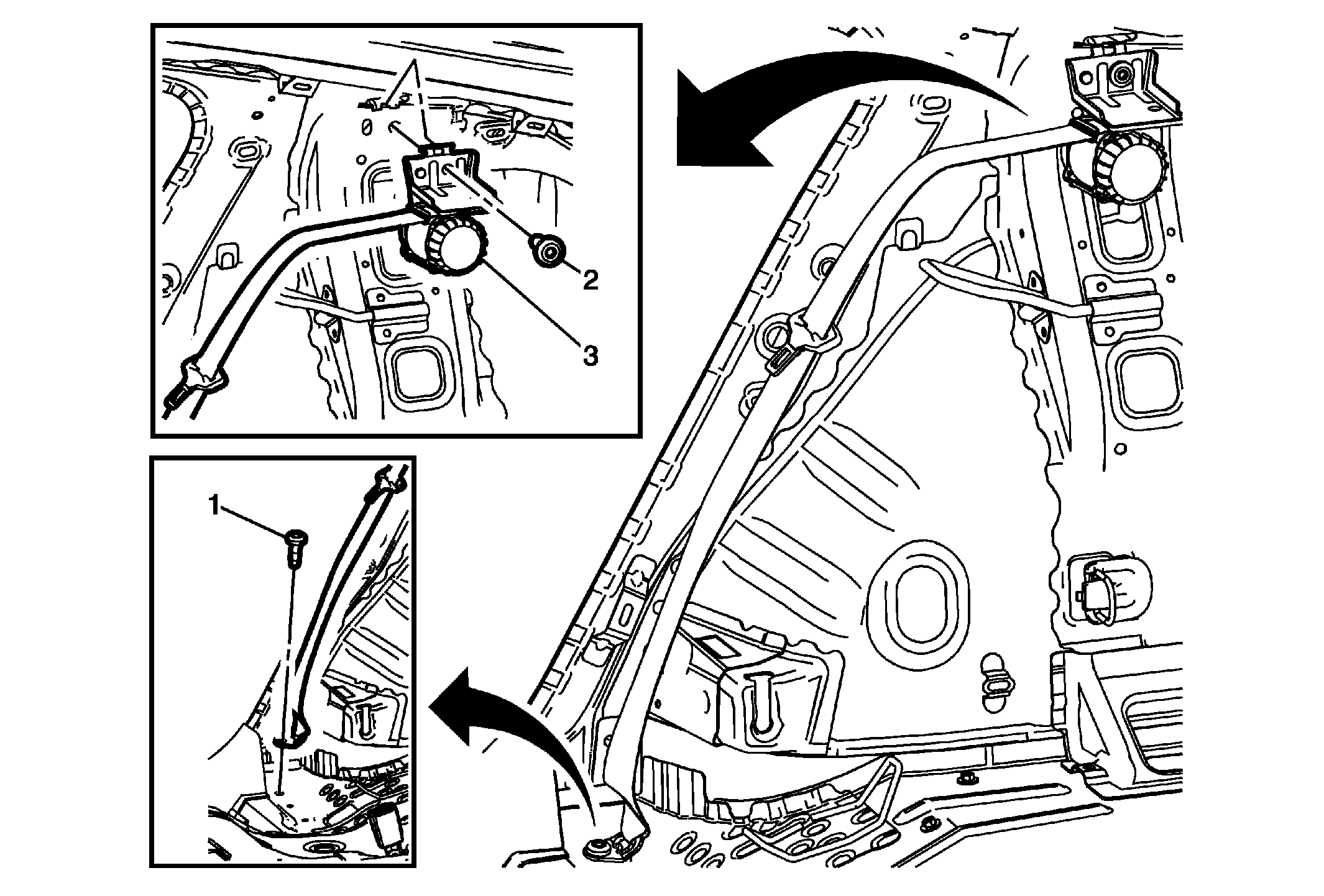

Fig 1: Shoulder Belt - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement .
1	Rear Seat Shoulder Belt Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Bracket Fastener Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt Assembly
