Front Camber Adjustment

  1. Before performing any adjustment affecting the wheel alignment, refer to Wheel Alignment Measurement .
  2. Loosen both strut to knuckle nuts just enough to allow for movement.
    3. NOTE:

    If there is no adjustment for the camber, proceed to step 4.

  3. Adjust the camber to specification by moving the top of the wheel in or out. Refer to Wheel Alignment Specifications .
  4. Remove the strut assembly from the vehicle. Refer to Strut Assembly Removal and Installation .
  5. Install the strut assembly in a soft jawed vise.

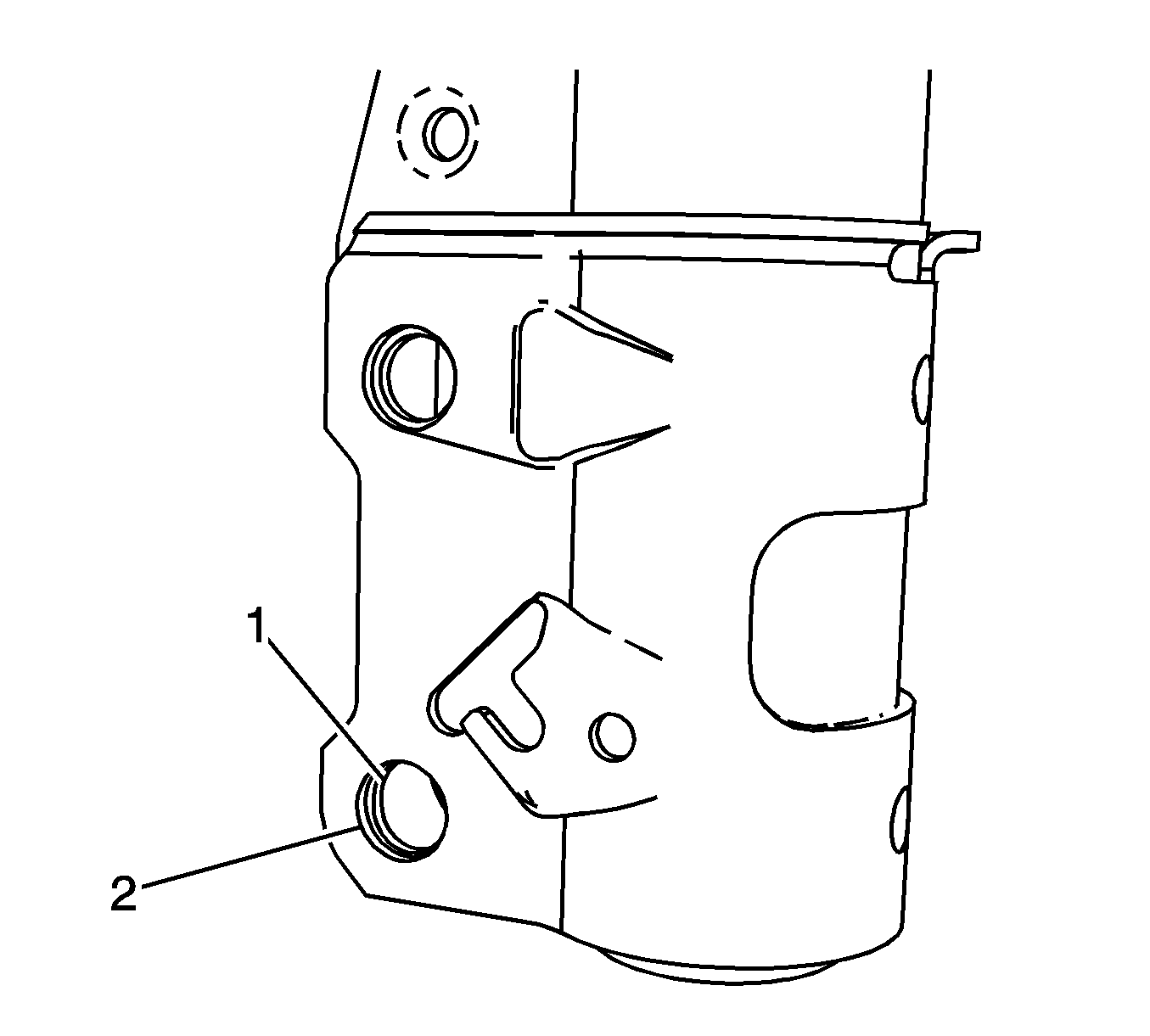

    6. Fig 1: Identifying Inner & Outer Holes
    GM2178346Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The inner hole should NOT be enlarged beyond that of the outer hole.

  6. Using the appropriate tool, enlarge the inner hole (1) to match the outer hole (2).
  7. Install the strut assembly. Refer to Strut Assembly Removal and Installation .

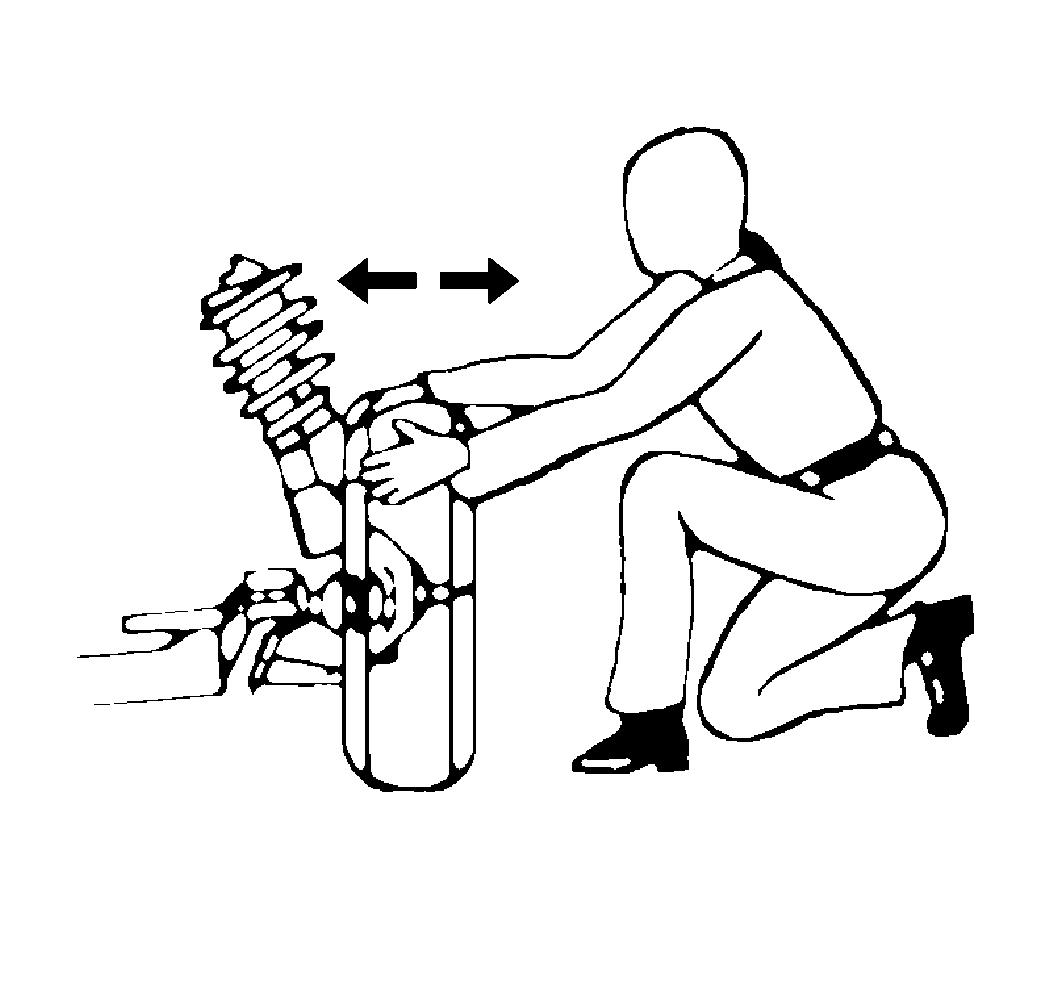

    8. Fig 2: Adjusting Front Camber
    GM165165Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If there is no adjustment for the camber, proceed to step 4.

  8. Adjust the camber to specification by moving the top of the wheel in or out. Refer to Wheel Alignment Specifications .
