Shift Lock Wiring Schematics

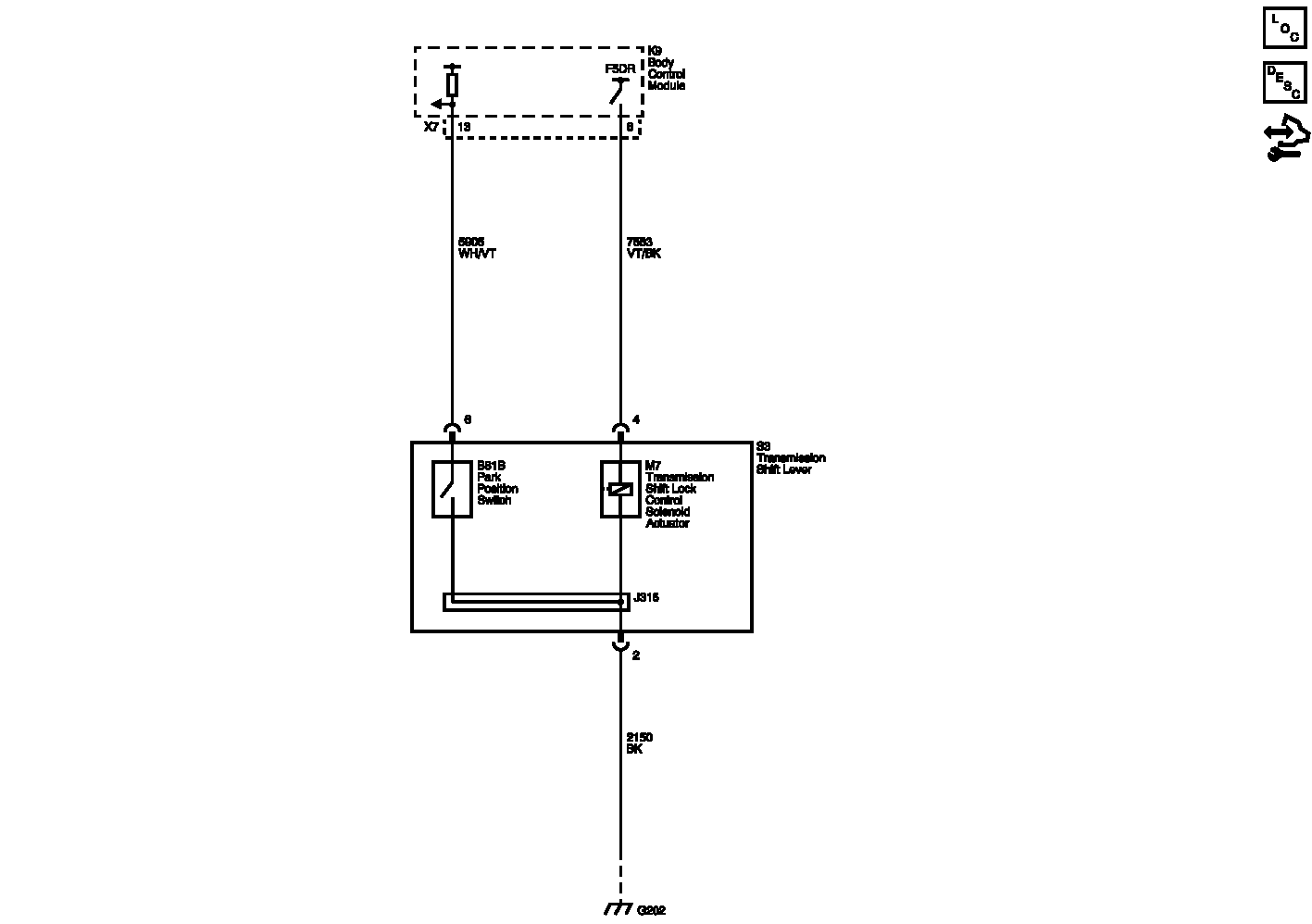

Fig 1: Shift Lock Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
