Subsystem References (1 of 2)

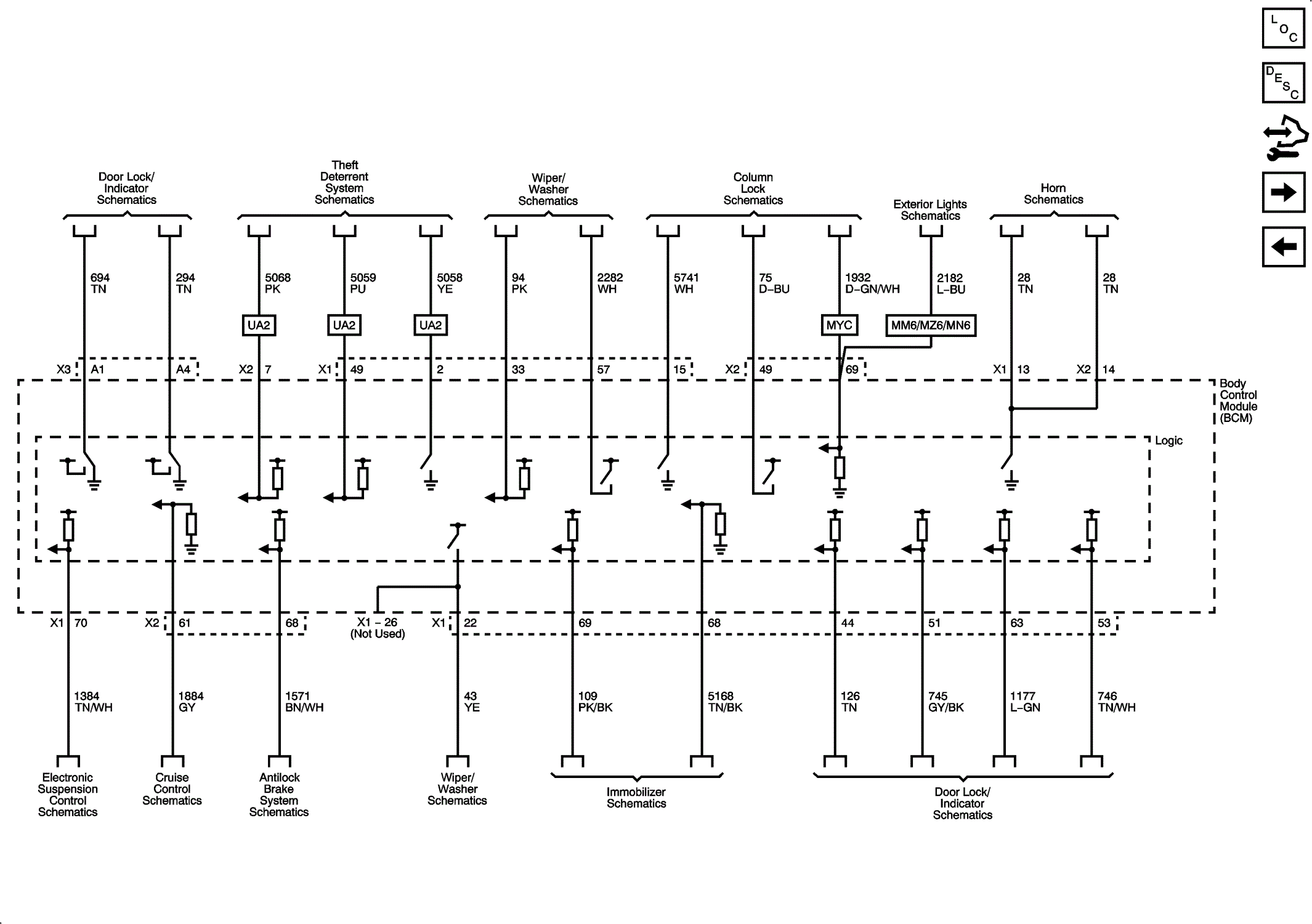

Fig 1: Subsystem References Wiring Schematic (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
