Front Side Door Window Switch Replacement - Right Side

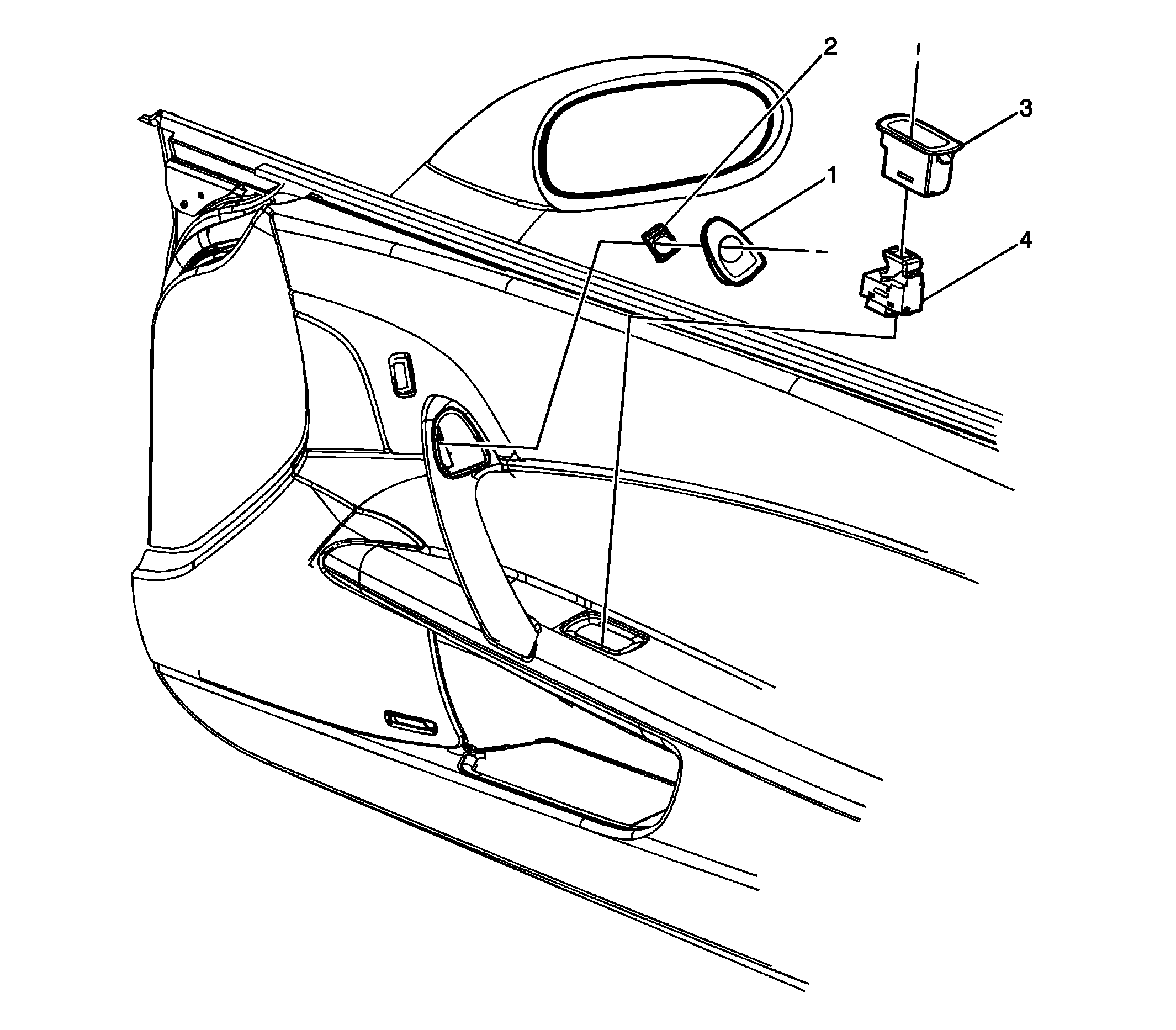

Fig 1: View Of Passenger Door Switches - Door Latch Release & Power Window
GM1493964Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement - Right Side

Callout Component Name
1 Door Release Switch Bezel
  1. Use a flat-bladed tool to release the bezel from the pull handle.
  2. Disconnect the electrical connector.
2 Door Release Switch
3 Power Window Switch Bezel
  1. Use a flat-bladed tool to release the bezel from the arm rest.
  2. Disconnect the electrical connector.
4 Power Window Switch
