Transmission Temperature Sensor/Switch, M/T

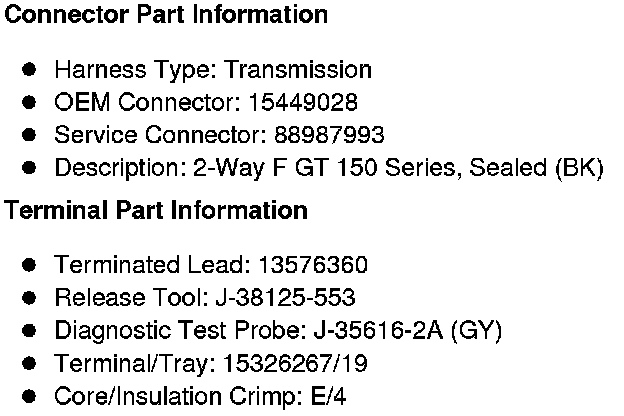

Component Connector End Views

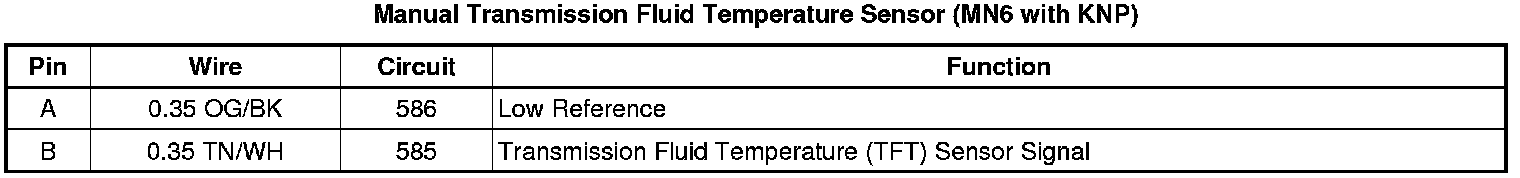

Manual Transmission Fluid Temperature Sensor (MN6 with KNP)
