Instrument Panel/Center Console Component Views
>>
In the Steering Column Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
In the Steering Column Components
In the Steering Column Components
Component Name
Callout
Ignition Switch
1
Theft Deterrent Module (TDM)
2
Ignition Lock Cylinder Control Actuator
3

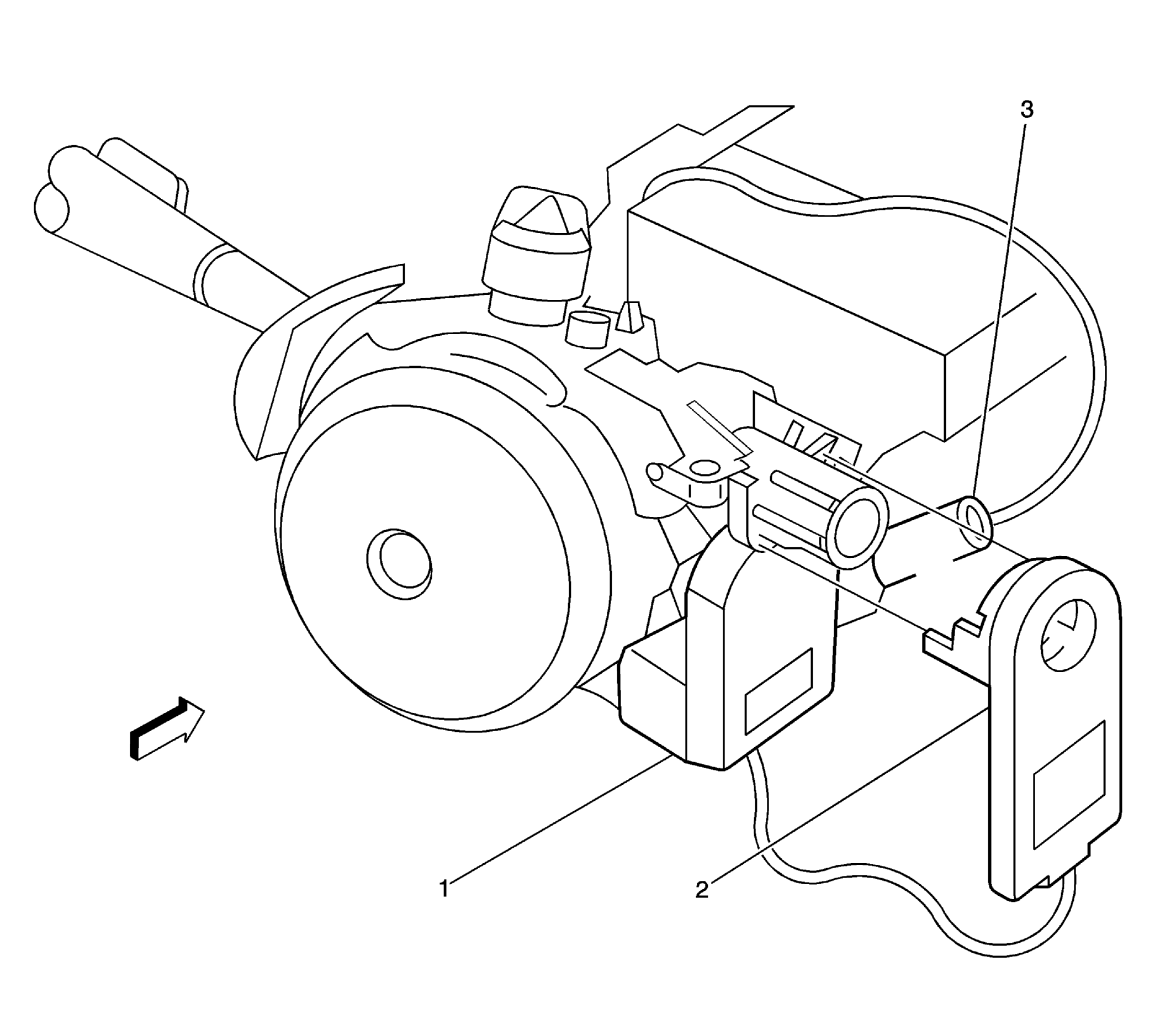

Fig 1: Left Front of the Passenger Compartment, in the Steering Column Component View
Courtesy of GENERAL MOTORS COMPANY
