Steering Wheel Components
Steering Wheel Components
Component Name
Callout
Steering Wheel
1
Steering Wheel Control Switch - Right
2
Steering Wheel Control Switch - Left (UK3)
3
Horn Switch
4

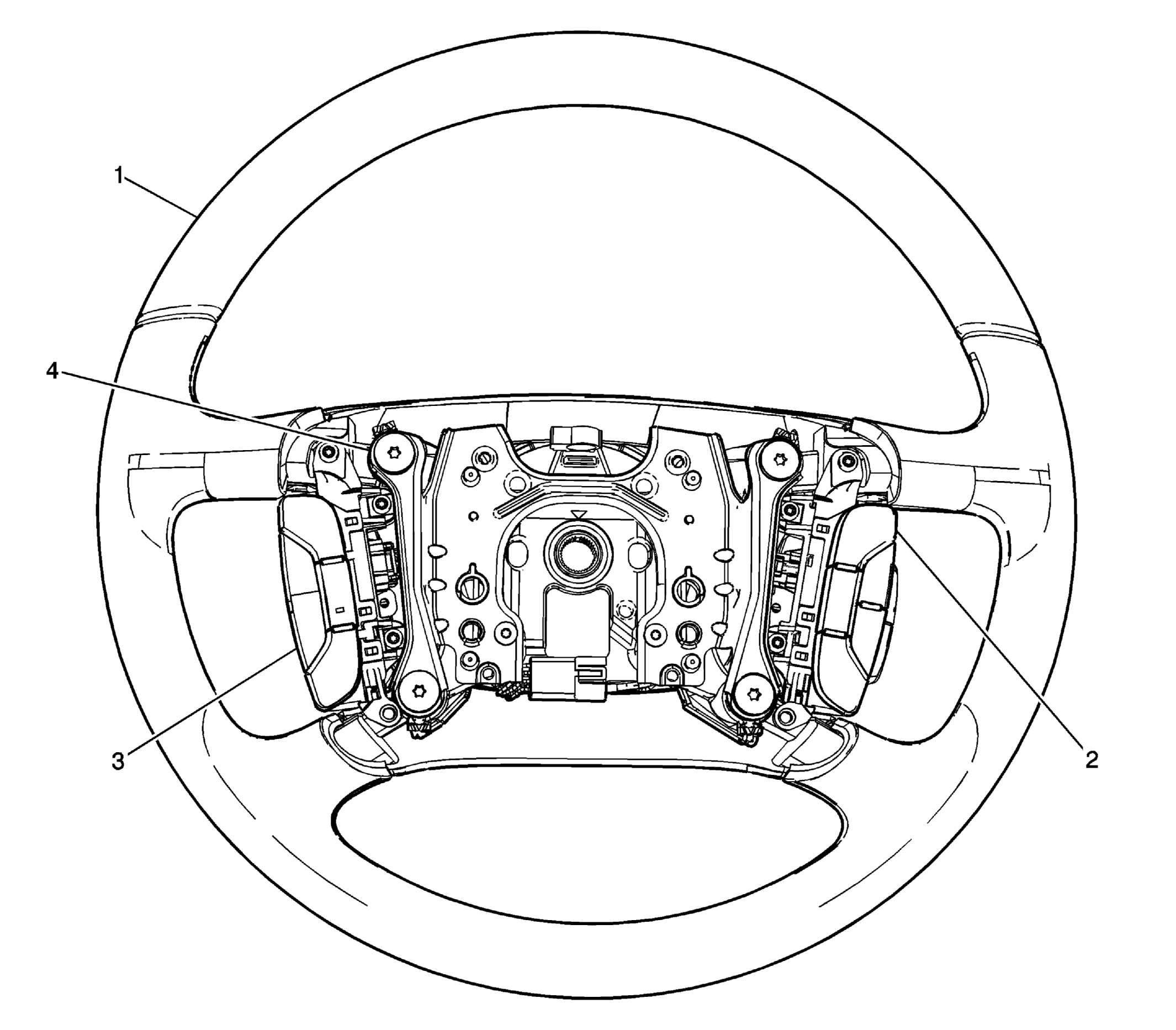

Fig 1: View Of Steering Wheel Components
Courtesy of GENERAL MOTORS COMPANY
