Automatic Transmission Electronic Components

Automatic Transmission Electronic Components

Component Name Callout
Control Solenoid Valve Assembly 1
Automatic Transmission Internal Mode Switch (IMS) 2
Automatic Transmission Output Shaft Speed (OSS) Sensor 3
Automatic Transmission Assembly 4
Automatic Transmission Input Shaft Speed (ISS) Sensor 5

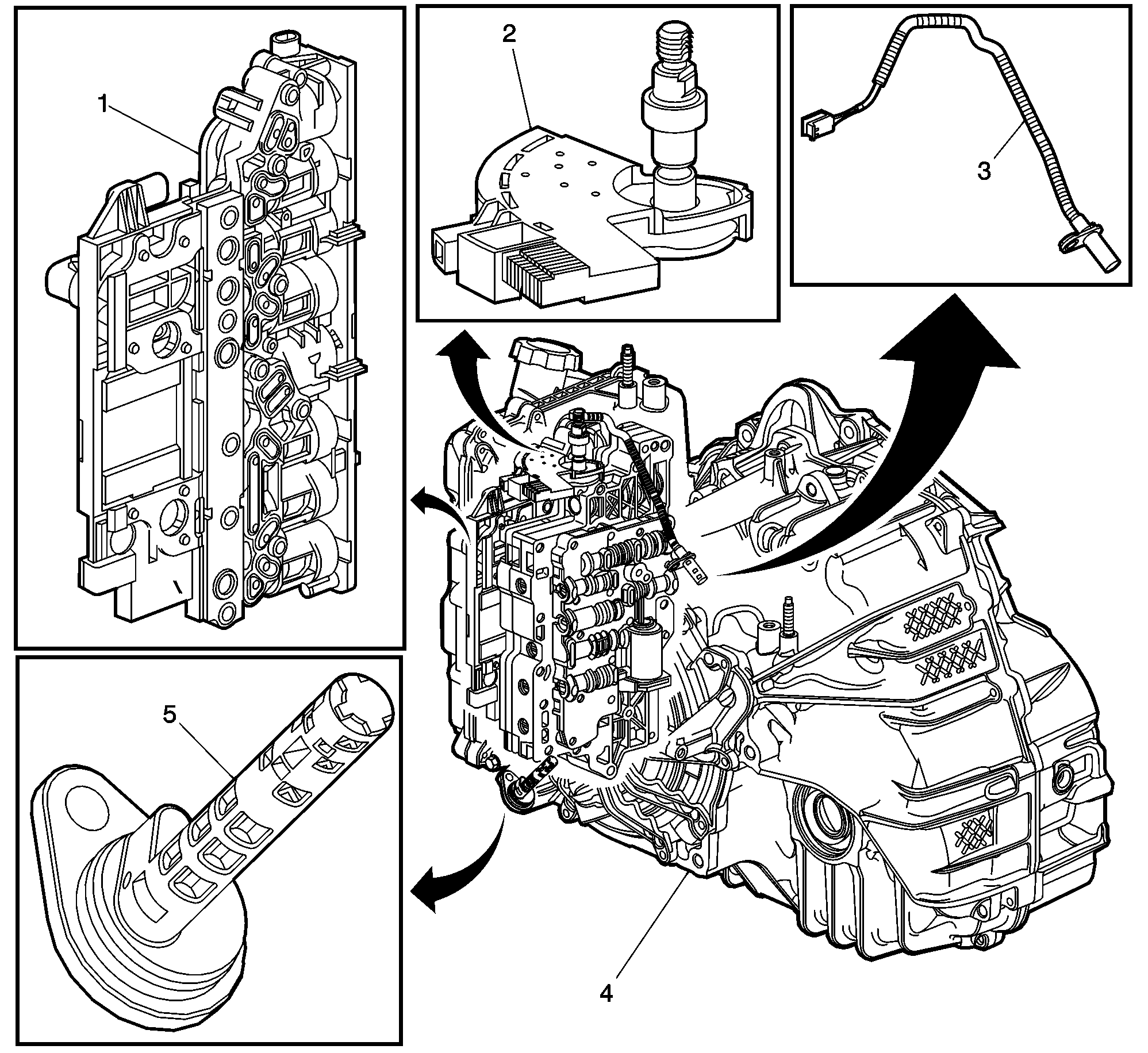

Fig 1: Automatic Transmission Electronic Components
GM2918251Courtesy of GENERAL MOTORS COMPANY
