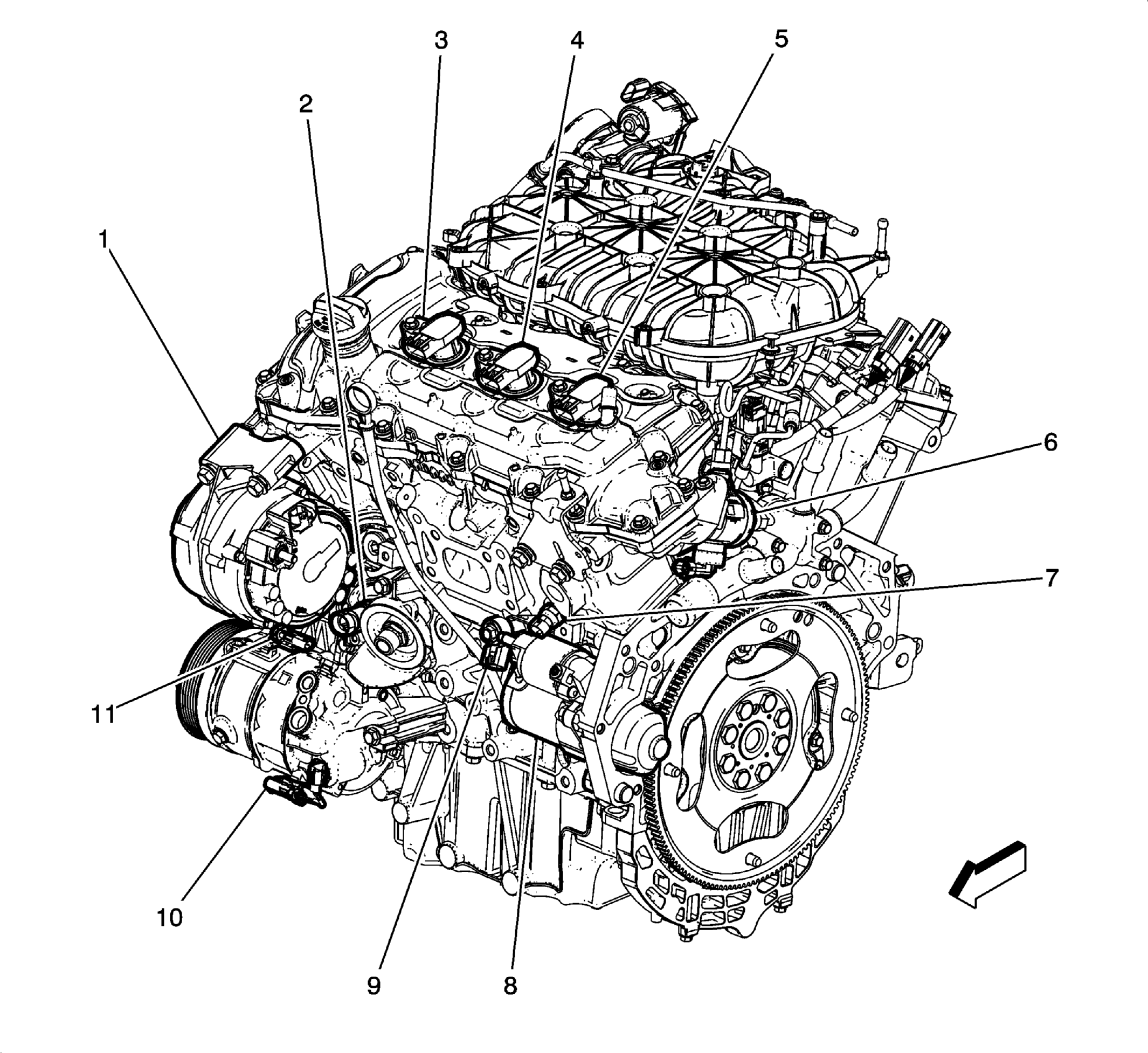

Left Front of Engine Components
Left Front of Engine Components
| Component Name | Callout |
|---|---|
| Generator | 1 |
| Engine Oil Pressure (EOP) Switch | 2 |
| Ignition Coil 2 | 3 |
| Ignition Coil 4 | 4 |
| Ignition Coil 6 | 5 |
| High Pressure Fuel Pump | 6 |
| Engine Coolant Temperature (ECT) Sensor | 7 |
| Starter Motor | 8 |
| Knock Sensor (KS) 2 | 9 |
| A/C Compressor Solenoid Valve | 10 |
| A/C Compressor Clutch | 11 |
