Installation Procedure

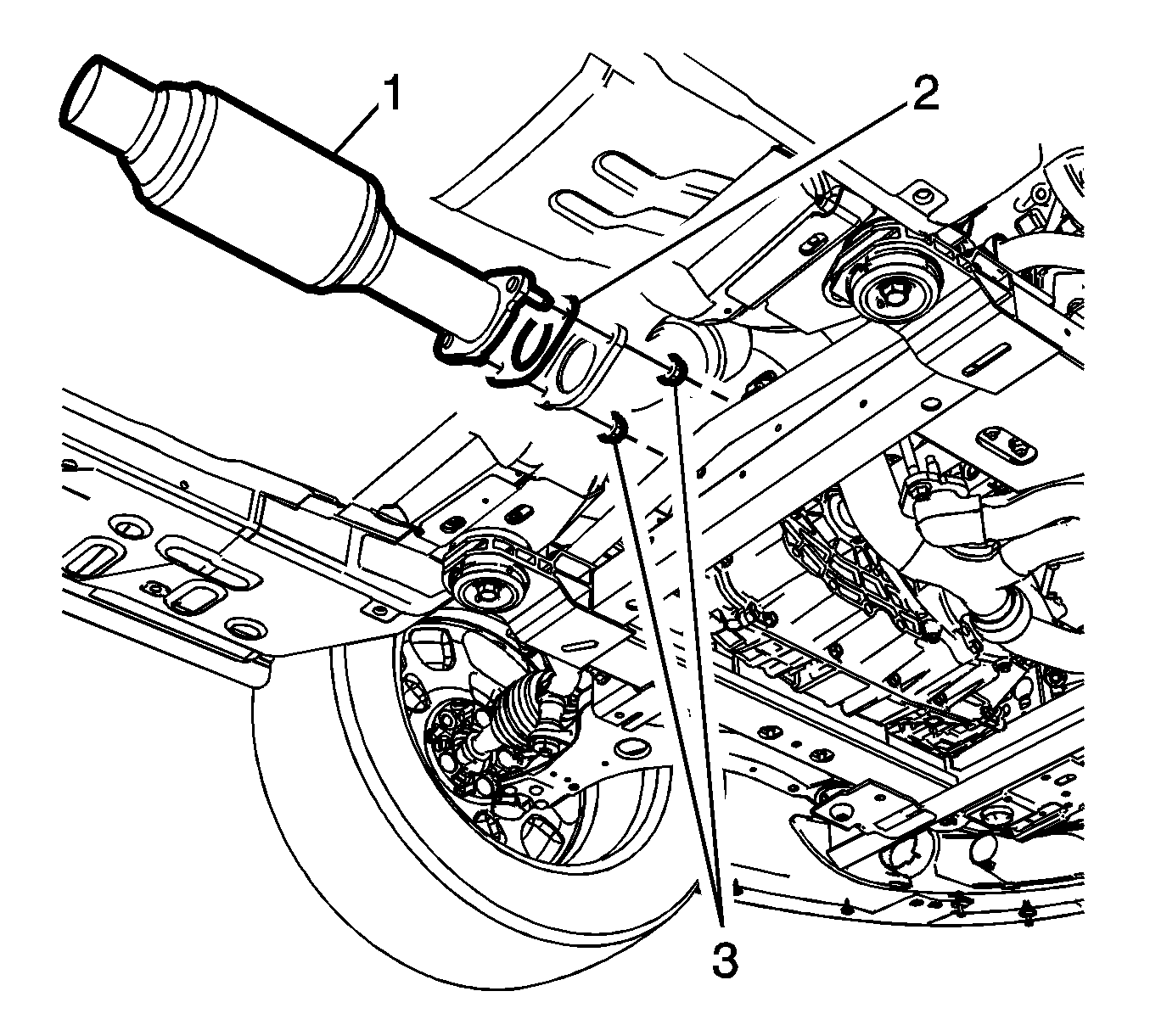

    Fig 1: Catalytic Converter, Exhaust Gasket And Fasteners
    GM2632516Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the NEW catalytic converter (1) with a NEW gasket (2) and tighten the exhaust front pipe fasteners (3) to 43 N.m (32 lb ft).
    2. Fig 2: Exhaust Service Clamp And Fasteners
    GM2632522Courtesy of GENERAL MOTORS COMPANY
  2. Install the exhaust service clamp (2) onto the exhaust muffler and the NEW catalytic converter. Tighten the exhaust clamp fasteners (1) to 50 N.m (37 lb ft).
  3. Inspect the exhaust system for leaks.
