2013
>>
Impala LS
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Data Communication Wiring Schematics
>>
CAN Bus Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CAN Bus Serial Data

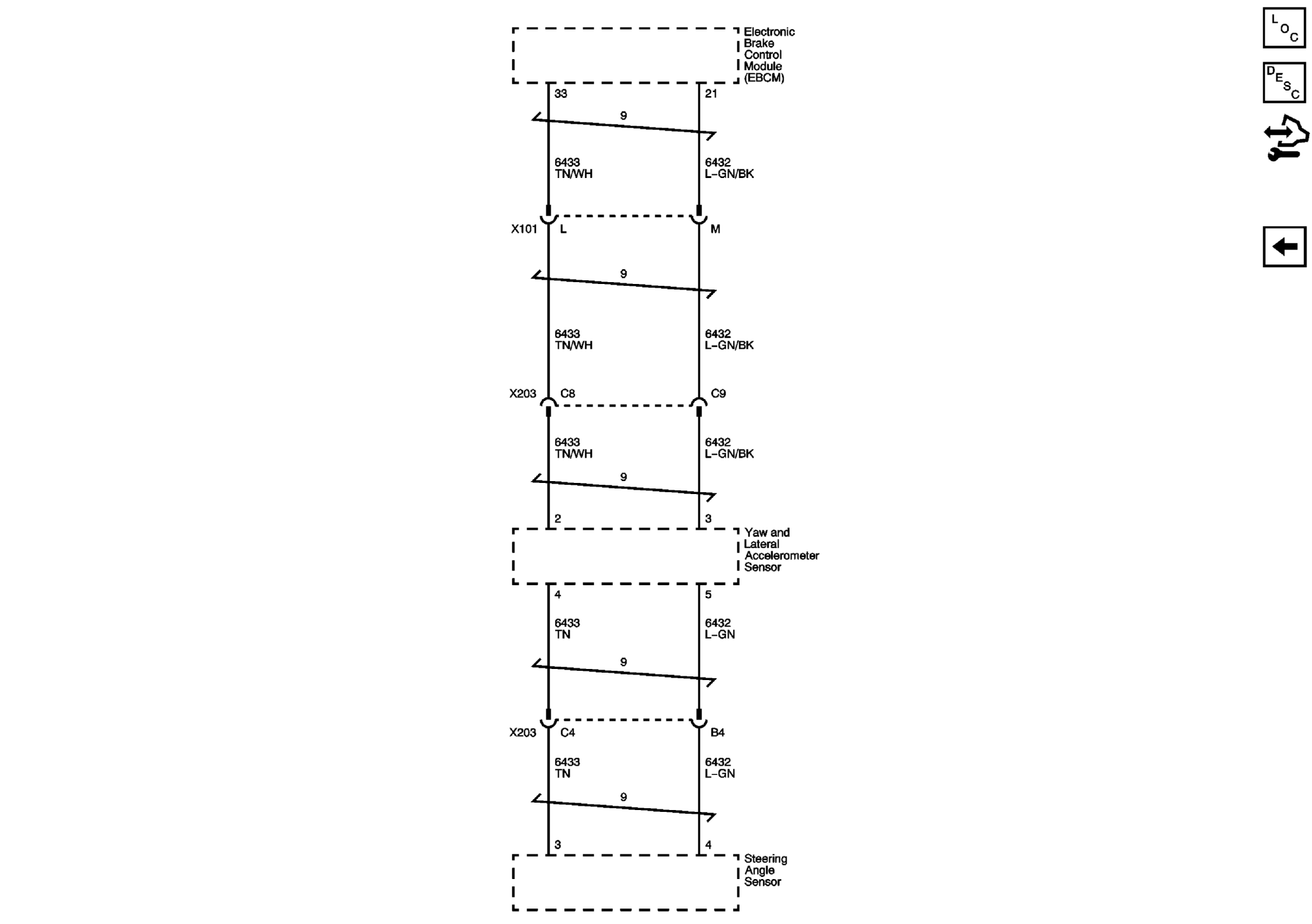

Fig 1: CAN Bus Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
