Power, Ground, and Low Speed GMLAN Serial Data

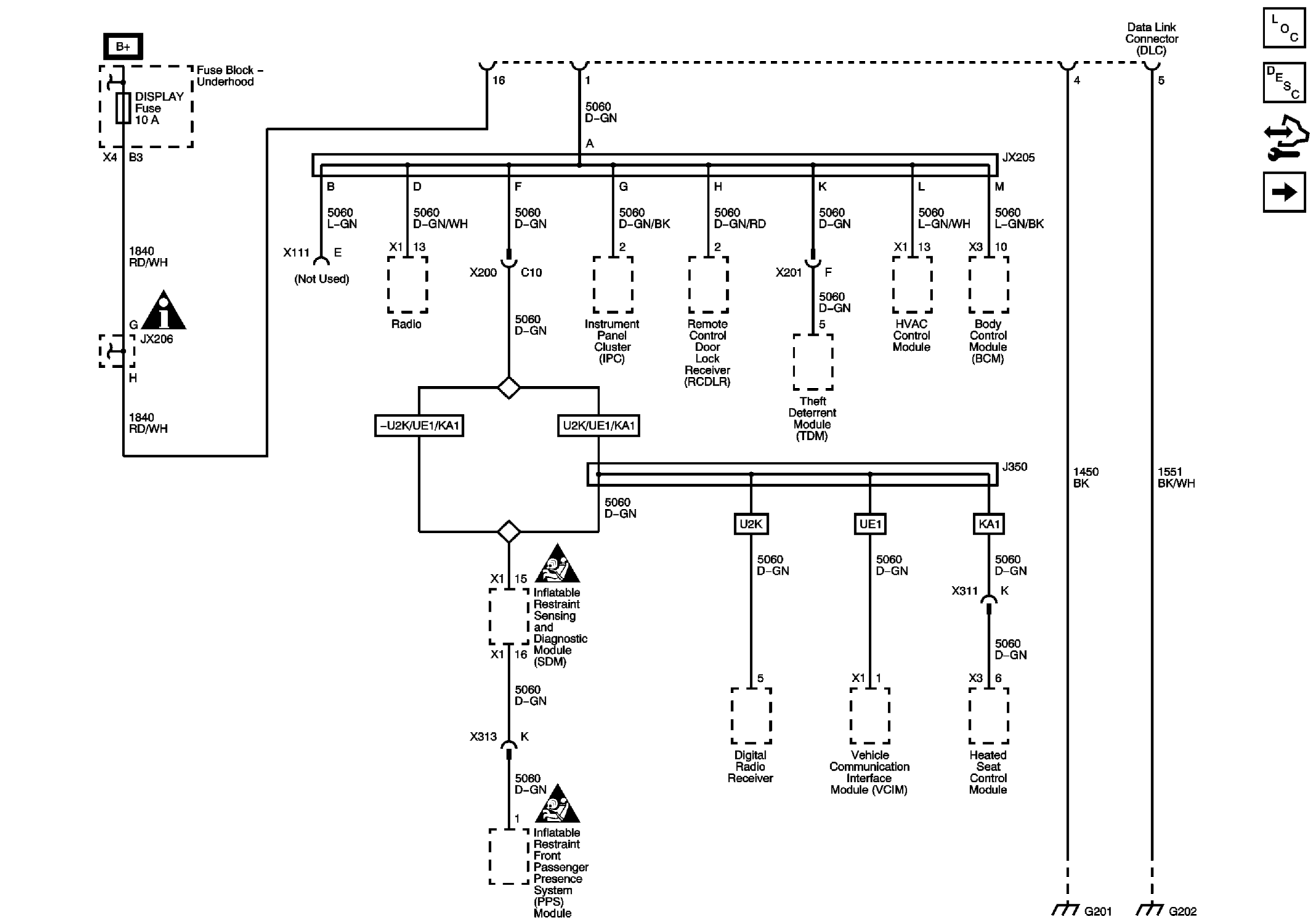

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
