Installation Procedure

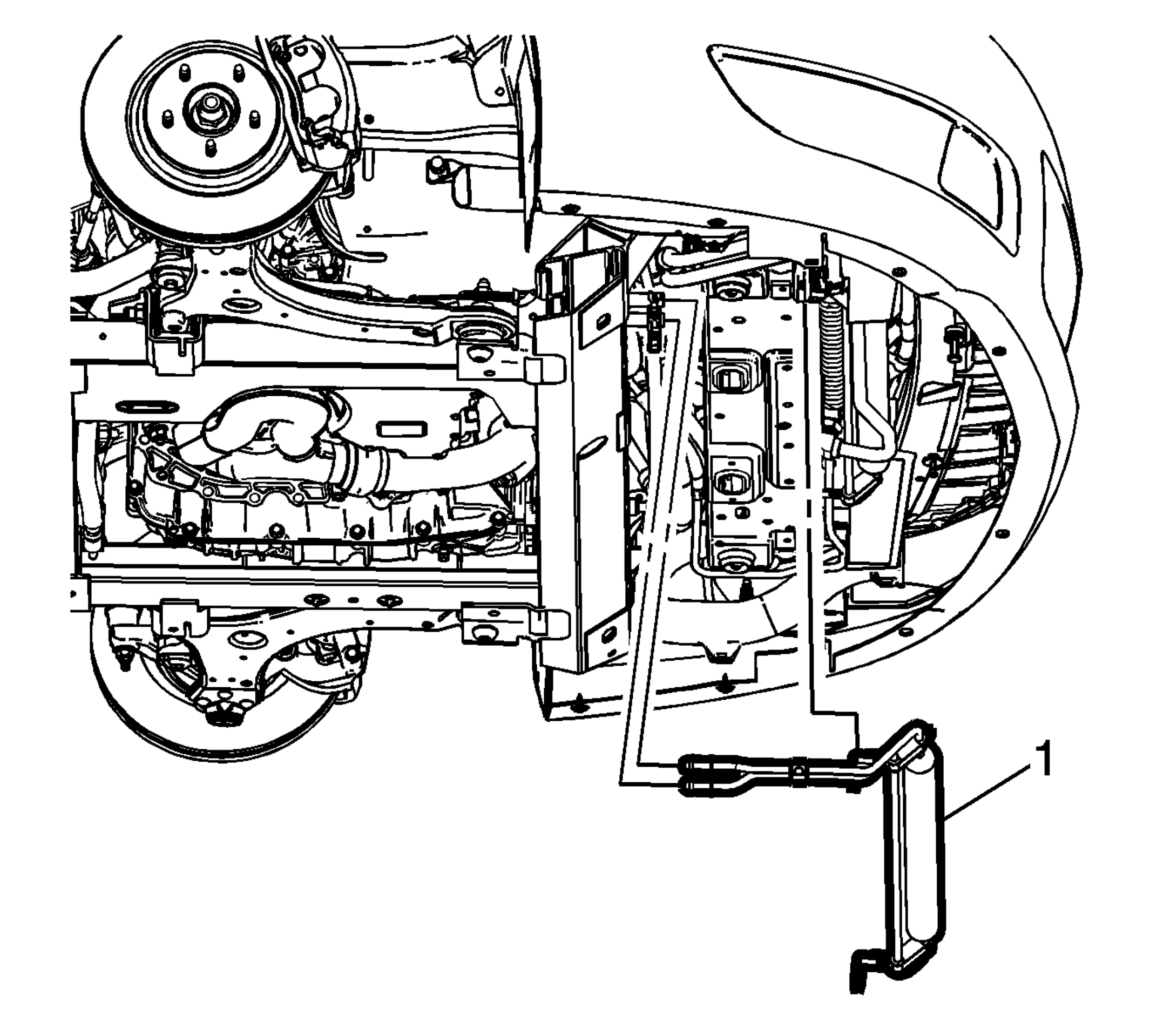

    Fig 1: Power Steering Fluid Cooler
    GM2637072Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Installing Hoses without Twists or Bends Caution .

  1. Position the power steering fluid cooler (1) in the vehicle.

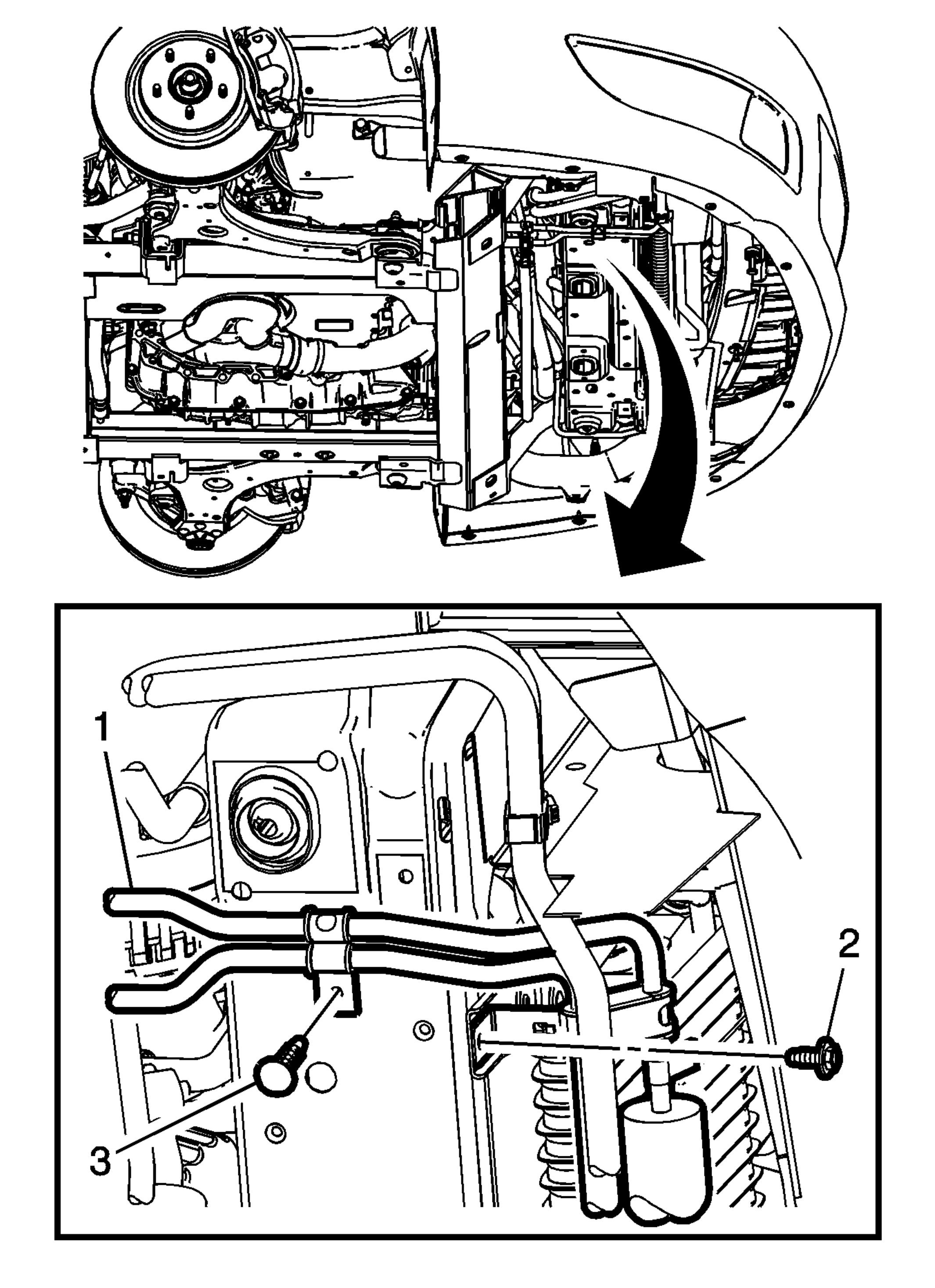

    2. Fig 2: Power Steering Fluid Cooler, Retainer And Bolt
    GM2636426Courtesy of GENERAL MOTORS COMPANY
  2. Connect the retainer (3) and the power steering fluid cooler (1) to the front end lower tie bar.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the bolt (2) to the power steering fluid cooler and tighten to 8 N.m (71 lb in).

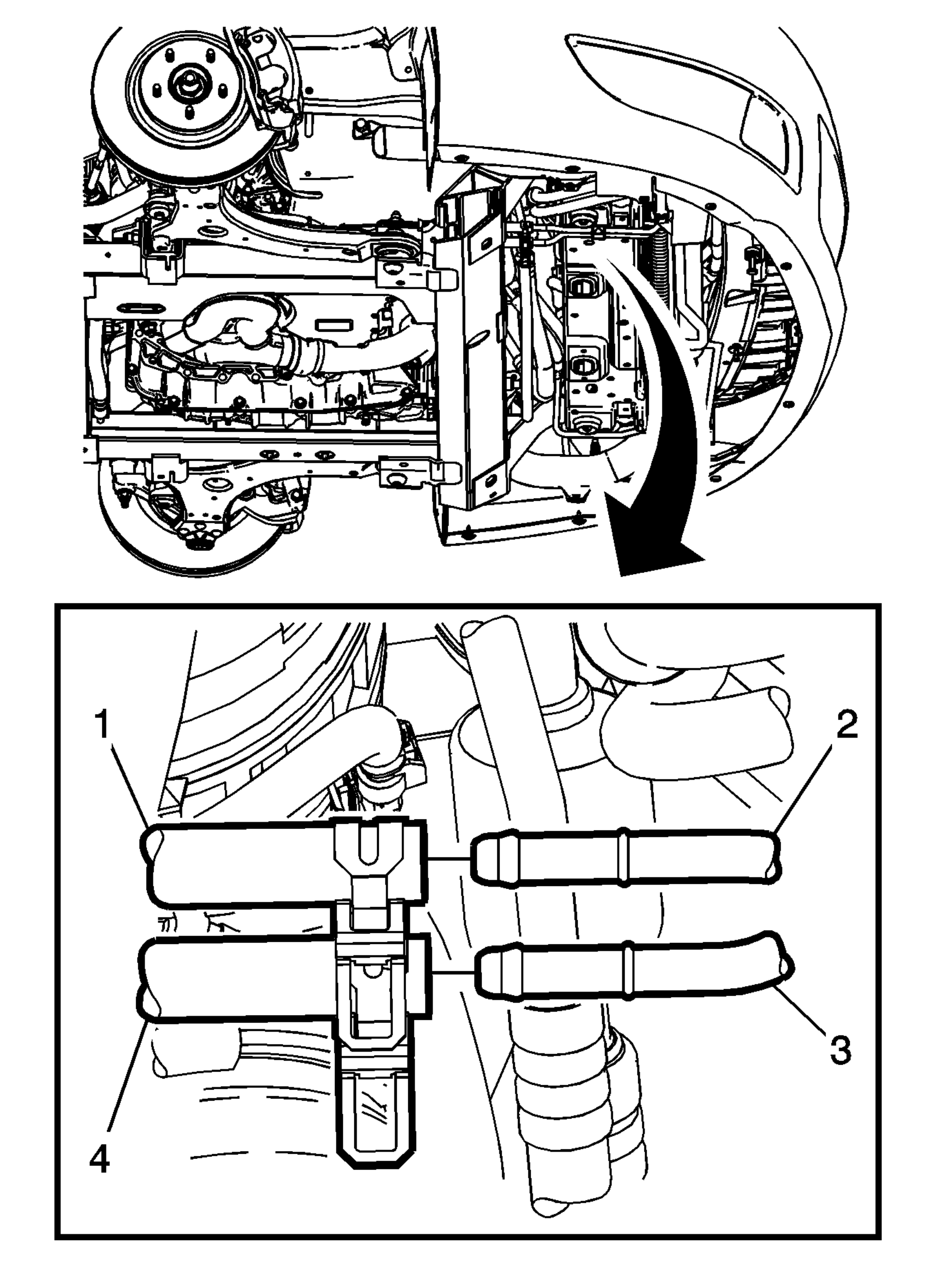

    4. Fig 3: Power Steering Fluid Cooler And Pipe
    GM2635453Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power steering fluid cooling pipe (1, 4) to the power steering fluid cooler (2, 3). Secure the pipe with the 2 hose clamps.

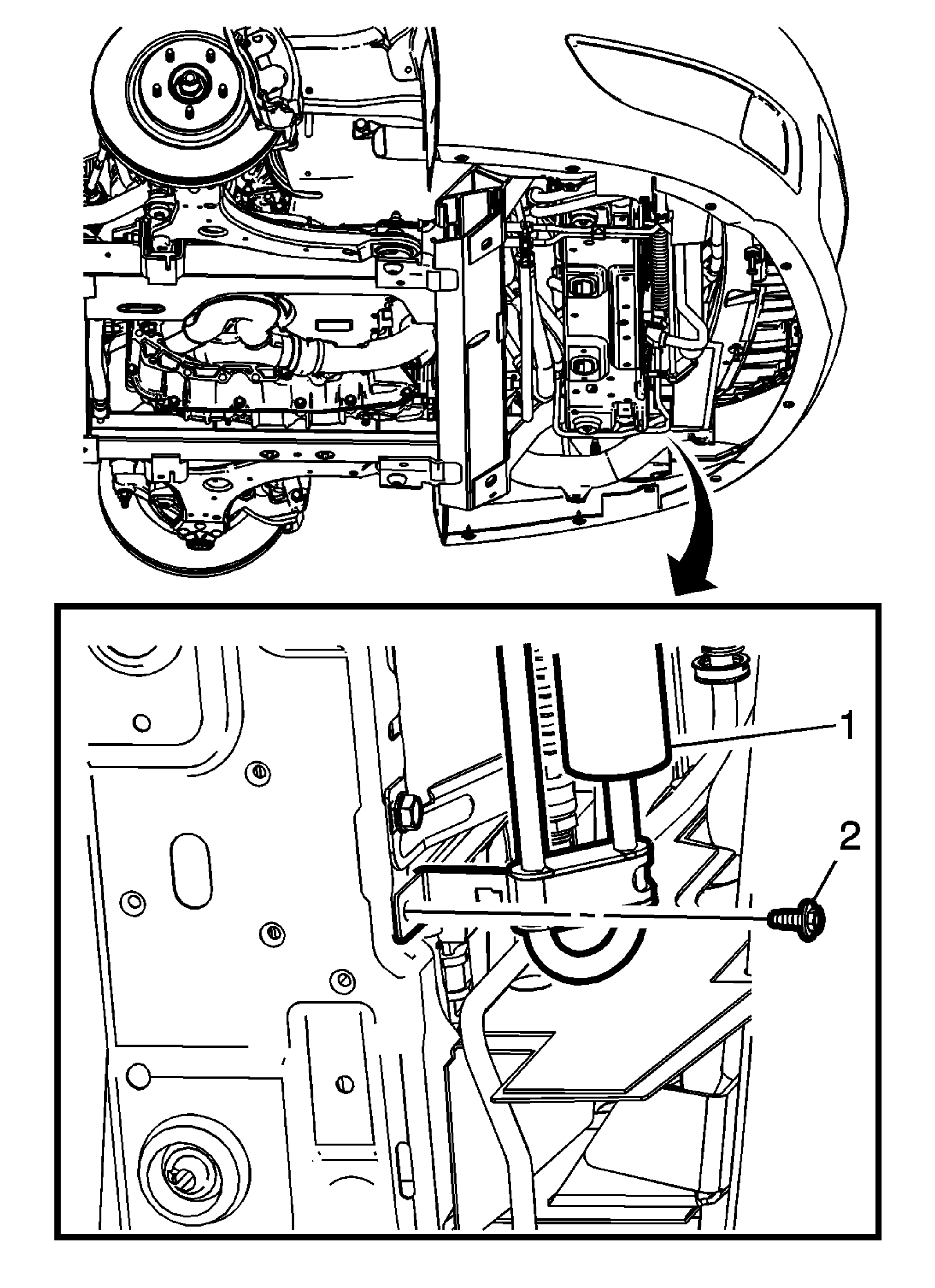

    5. Fig 4: Power Steering Fluid Cooler And Bolt
    GM2636574Courtesy of GENERAL MOTORS COMPANY
  5. Install the bolt (2) to the power steering fluid cooler (1) and tighten to 8 N.m (71 lb in).
  6. Install the radiator air lower baffle and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement .
  7. Lower the vehicle.
  8. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  9. Clean any excess power steering fluid from the vehicle.
  10. Remove the drain pans.
