Power Steering Pump Pulley Replacement

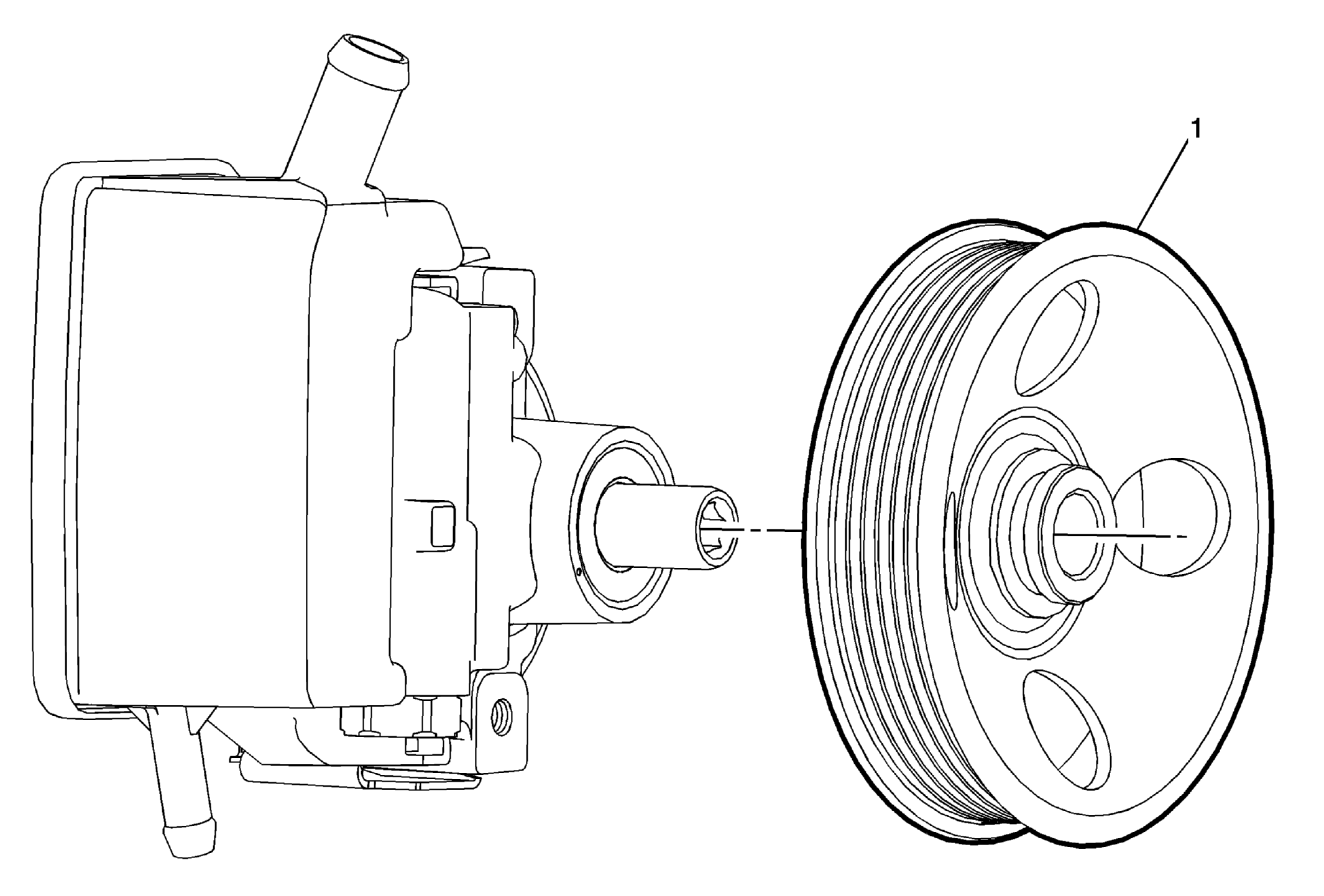

Fig 1: Power Steering Pump Pulley Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the power steering pump. Refer to Power Steering Pump Replacement .
1	Power Steering Pump Pulley Procedure Use the J-25034-C Remover in order to remove the power steering pump pulley. Use the J-25033-C Installer in order to install the power steering pump pulley. Ensure the axial tolerance of the power steering pump pulley on the shaft is within 0.25 mm (0.010 in). Special Tools J-25033-C Pulley Installer J-25034-C Pulley Remover For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the power steering pump. Refer to Power Steering Pump Replacement .

Power Steering Pump Pulley

Procedure

Use the J-25034-C Remover in order to remove the power steering pump pulley.
Use the J-25033-C Installer in order to install the power steering pump pulley.
Ensure the axial tolerance of the power steering pump pulley on the shaft is within 0.25 mm (0.010 in).

Special Tools

For equivalent regional tools, refer to Special Tools .
