Steering Gear Heat Shield Replacement

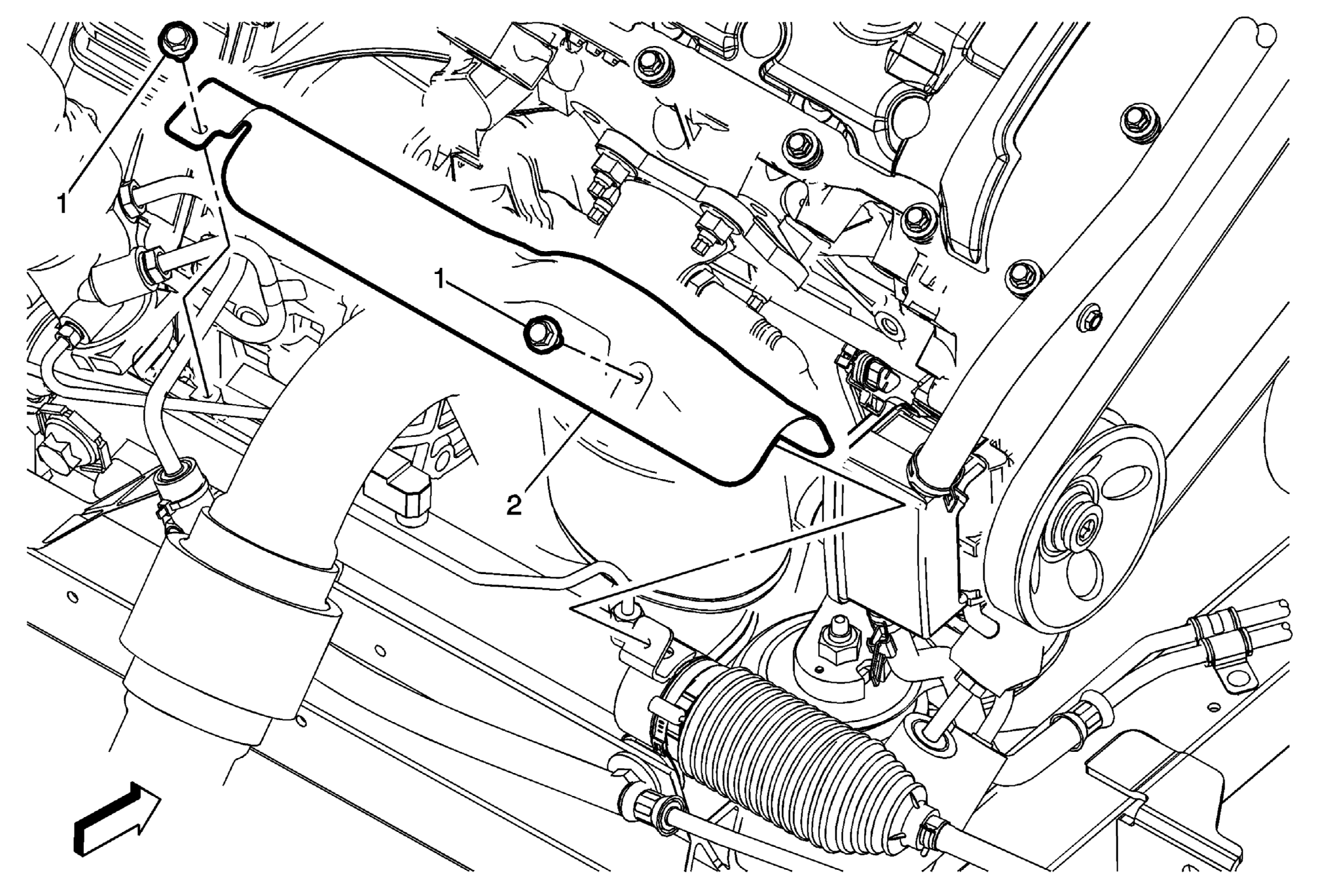

Fig 1: Steering Gear Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Do not lower the rear of the frame too far as damage to the engine components nearest to the cowl may result. Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Lower the rear of the frame in order to access the steering gear heat shield bolts. Refer to Frame Replacement .
1	Steering Gear Heat Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Steering Gear Heat Shield

Callout

Component Name

CAUTION:

Do not lower the rear of the frame too far as damage to the engine components nearest to the cowl may result.

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Lower the rear of the frame in order to access the steering gear heat shield bolts. Refer to Frame Replacement .

Steering Gear Heat Shield Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Steering Gear Heat Shield
