Steering Linkage Inner Tie Rod Replacement

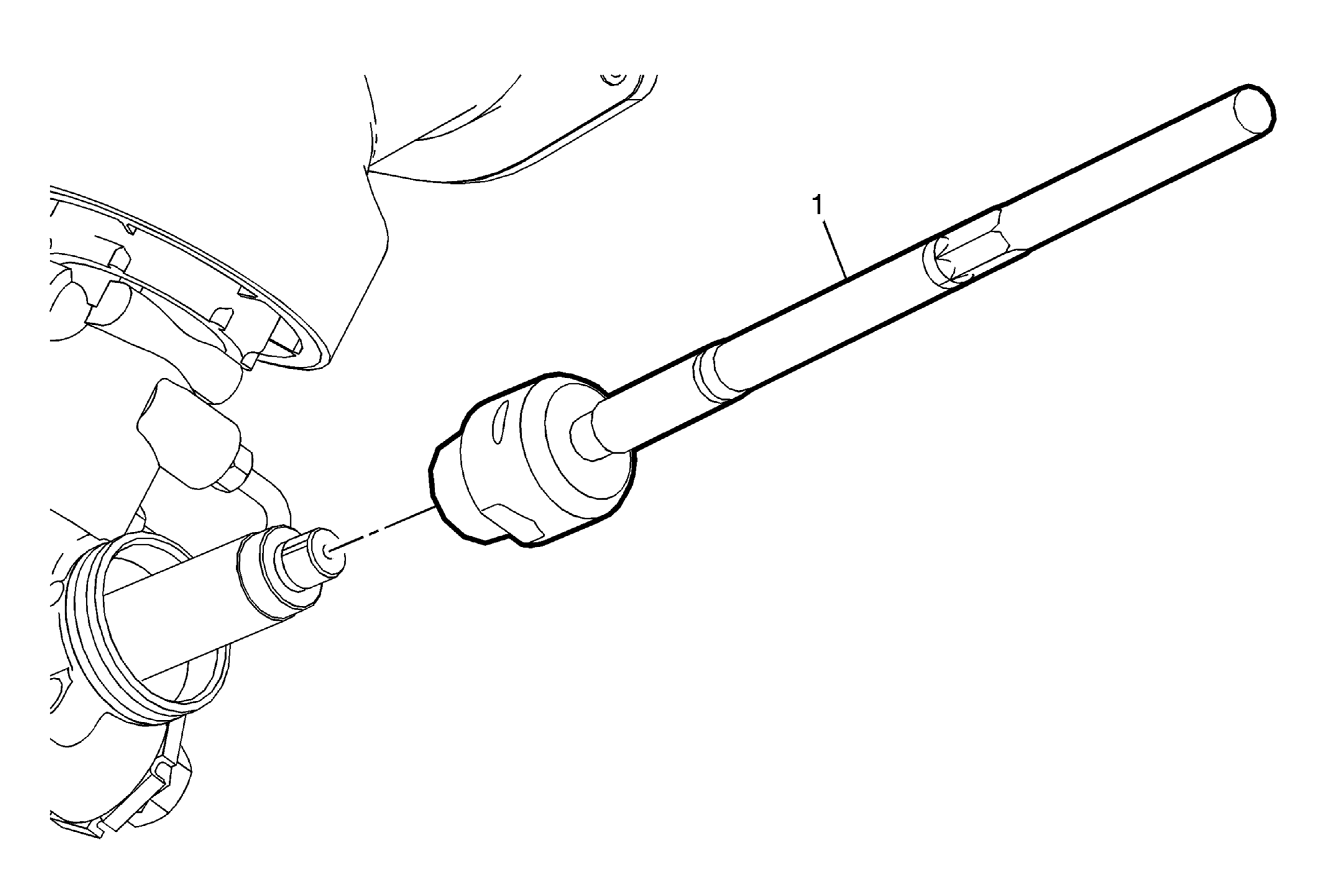

Fig 1: Steering Linkage Inner Tie Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the steering gear boot. Refer to Steering Gear Boot Replacement .
1	Steering Linkage Inner Tie Rod CAUTION: Do not change the steering gear preload adjustment before moving the inner tie rod from the steering gear. Changing the steering gear preload adjustment before moving the inner tie rod could result in damage to the pinion and the steering gear. CAUTION: Refer to Fastener Caution . Procedure Place a wrench on the flats of the steering linkage inner tie rod housing. Rotate the steering linkage inner tie rod housing counterclockwise in order to remove the steering linkage inner tie rod from the rack. Rotate the steering linkage inner tie rod housing clockwise in order to install the steering linkage inner tie rod to the rack. Tighten 100 N.m (74 lb ft)

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the steering gear boot. Refer to Steering Gear Boot Replacement .

Steering Linkage Inner Tie Rod

CAUTION:

Do not change the steering gear preload adjustment before moving the inner tie rod from the steering gear. Changing the steering gear preload adjustment before moving the inner tie rod could result in damage to the pinion and the steering gear.

CAUTION:

Refer to Fastener Caution .

Procedure

Place a wrench on the flats of the steering linkage inner tie rod housing.
Rotate the steering linkage inner tie rod housing counterclockwise in order to remove the steering linkage inner tie rod from the rack.
Rotate the steering linkage inner tie rod housing clockwise in order to install the steering linkage inner tie rod to the rack.

Tighten
100 N.m (74 lb ft)
