Shift Lock Controls

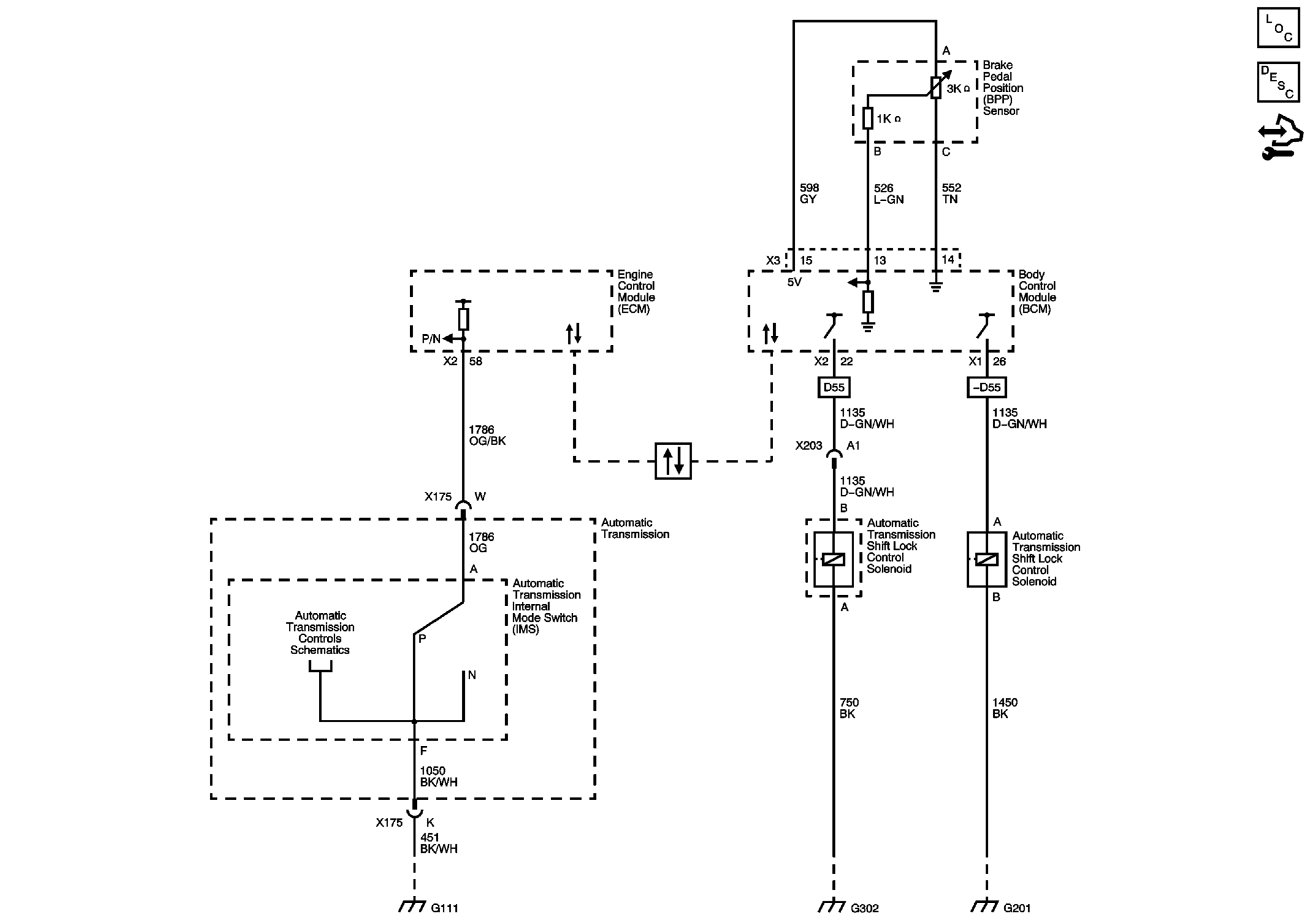

Fig 1: Shift Lock Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
