Body Control Module Bracket Replacement
Body Control Module Bracket Replacement

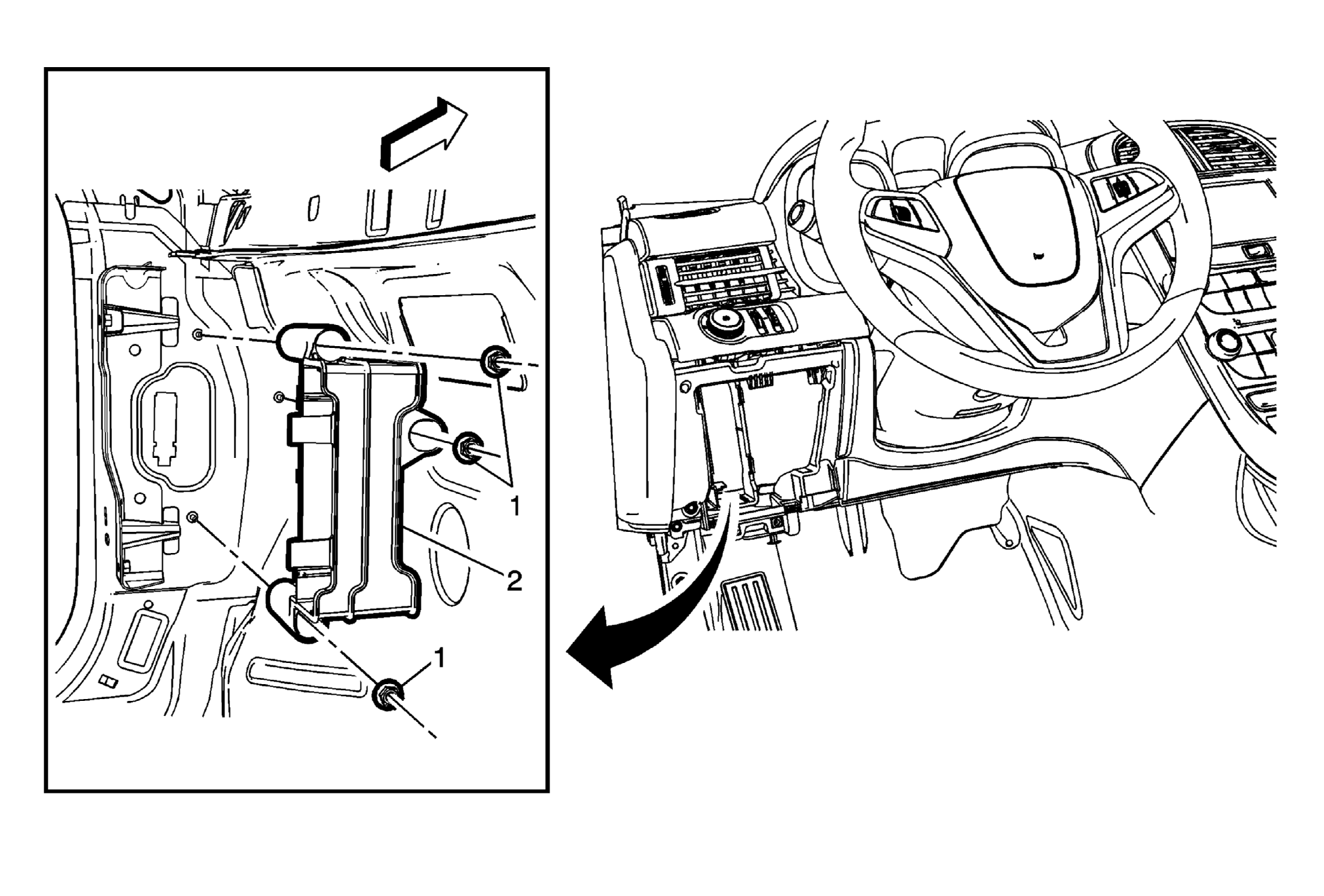

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the body control module. Refer to Body Control Module Replacement . |
|
| 1 | Body Control Module Bracket Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Body Control Module Bracket |
