Body Control Module Replacement

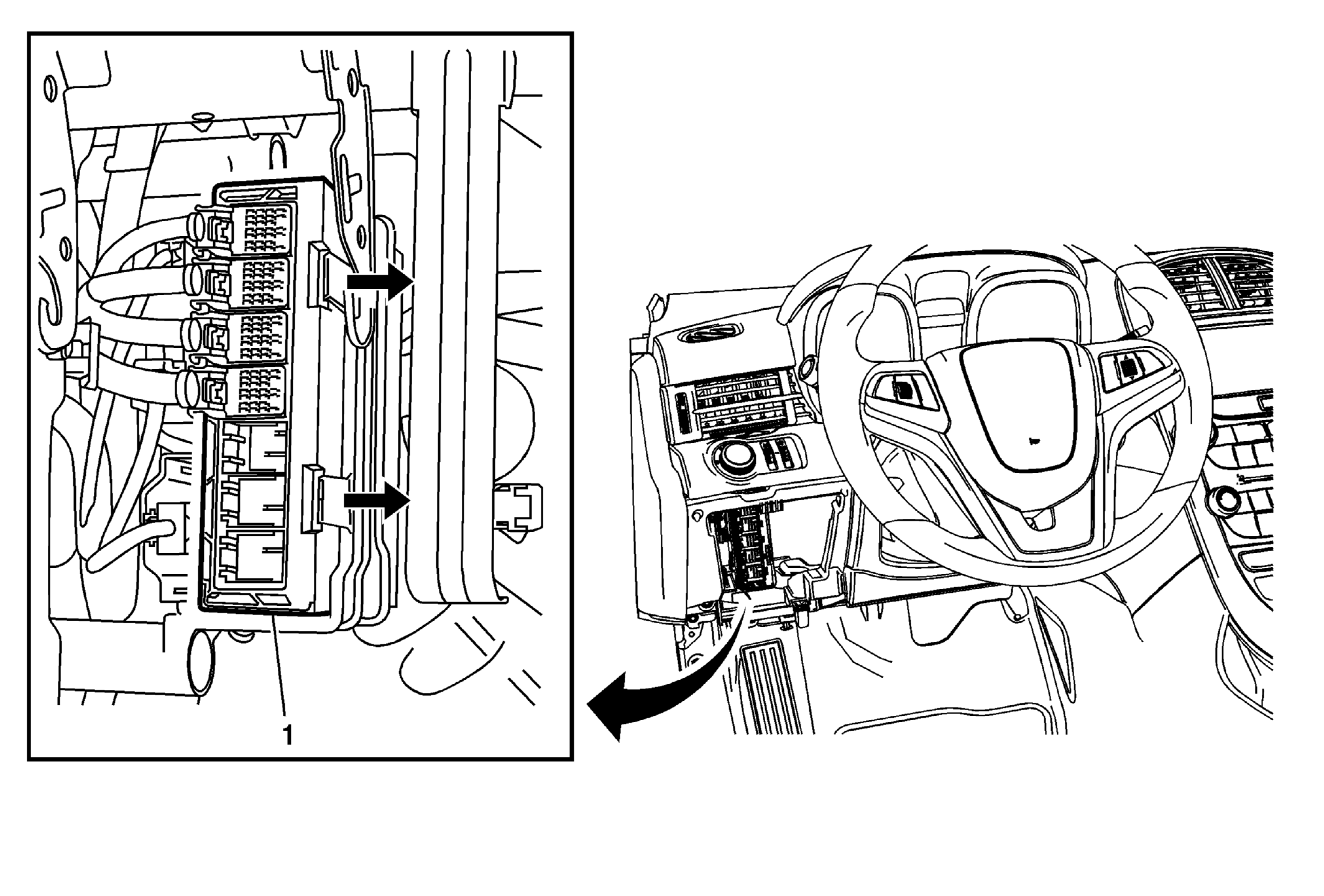

Fig 1: Body Control Module Component Location

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel wiring harness junction block. Refer to Instrument Panel Wiring Harness Junction Block Replacement .
1	Body Control Module Procedure Disconnect the electrical connectors on the body control module. Unsnap to release the module from the bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel wiring harness junction block. Refer to Instrument Panel Wiring Harness Junction Block Replacement .

Body Control Module

Procedure
