Communications Enable Wiring Schematics

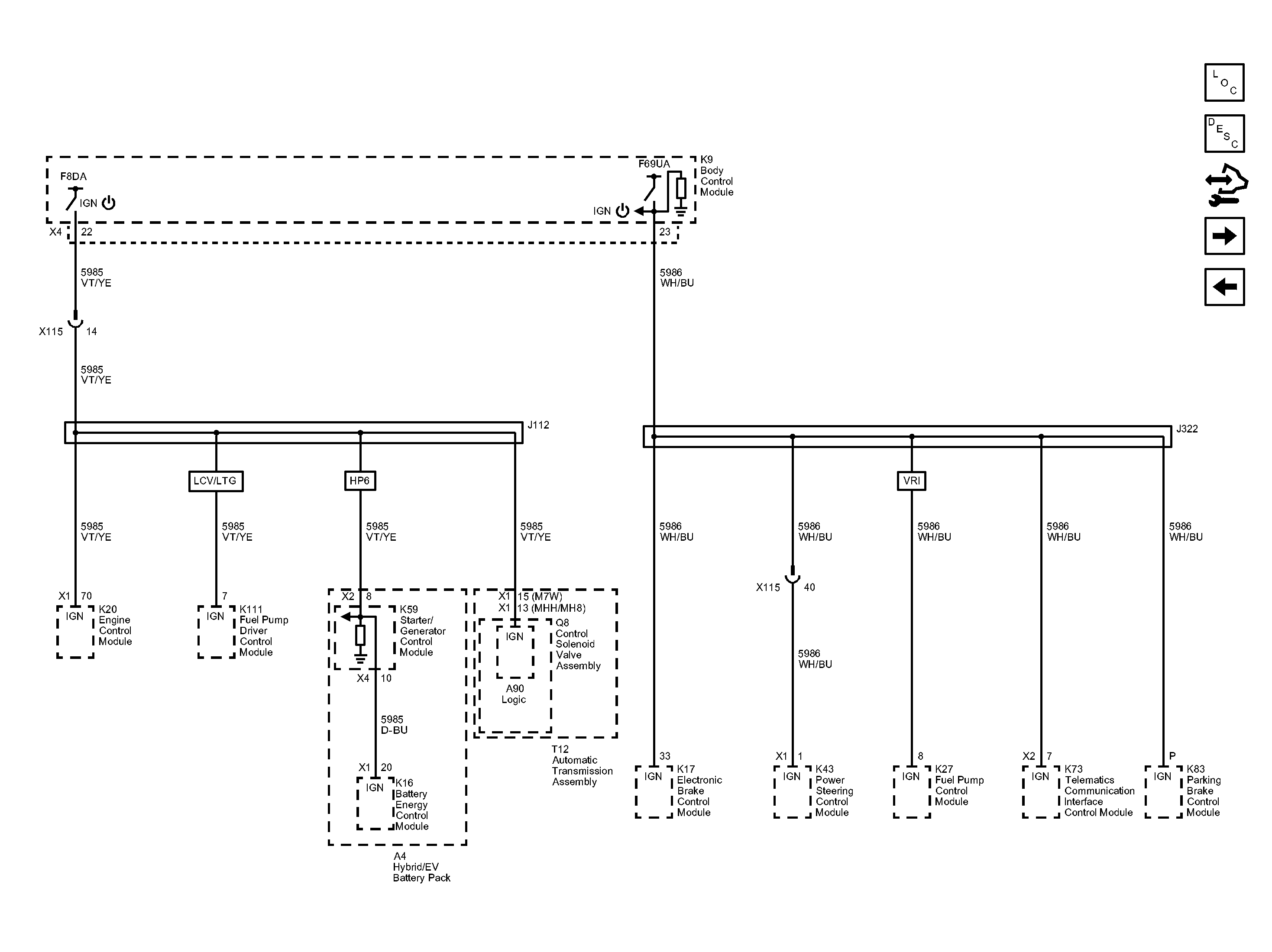

Fig 1: Communications Enable Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
