Engine Mechanical Specifications

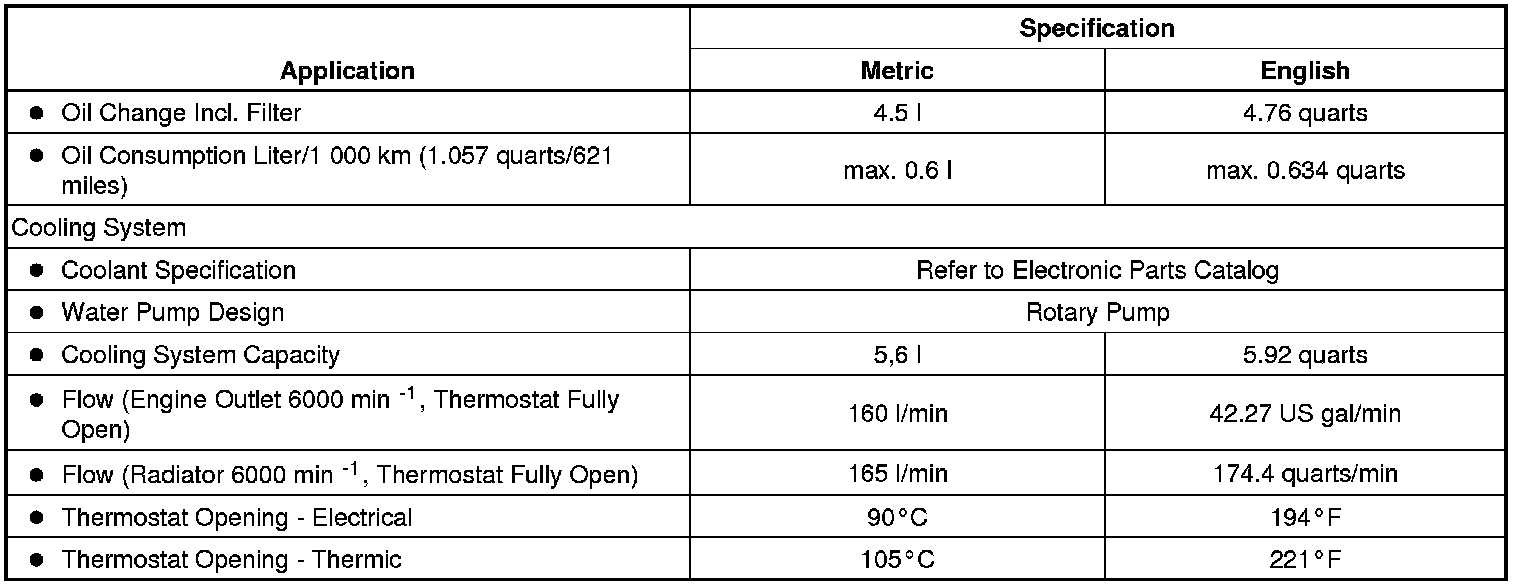

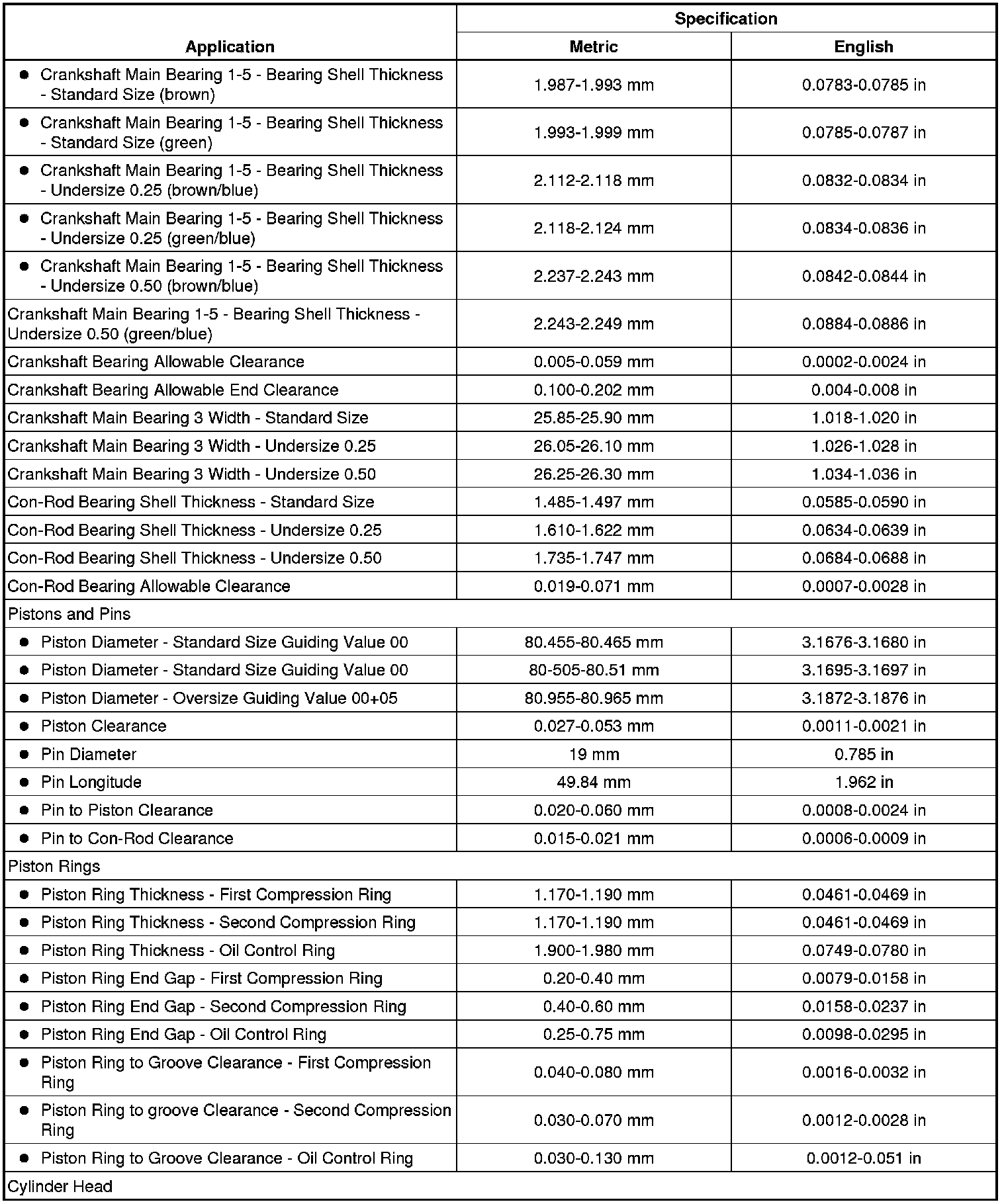

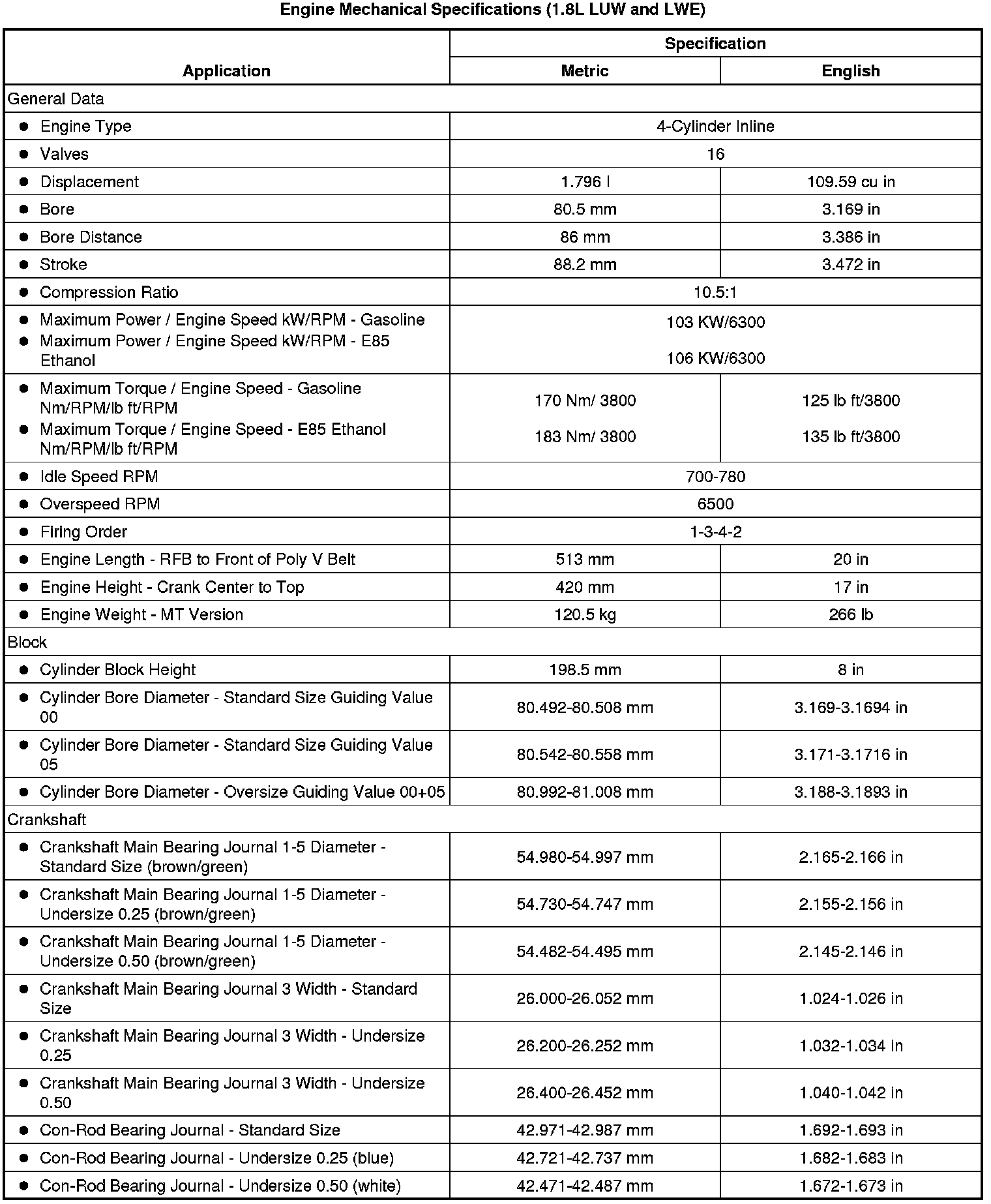

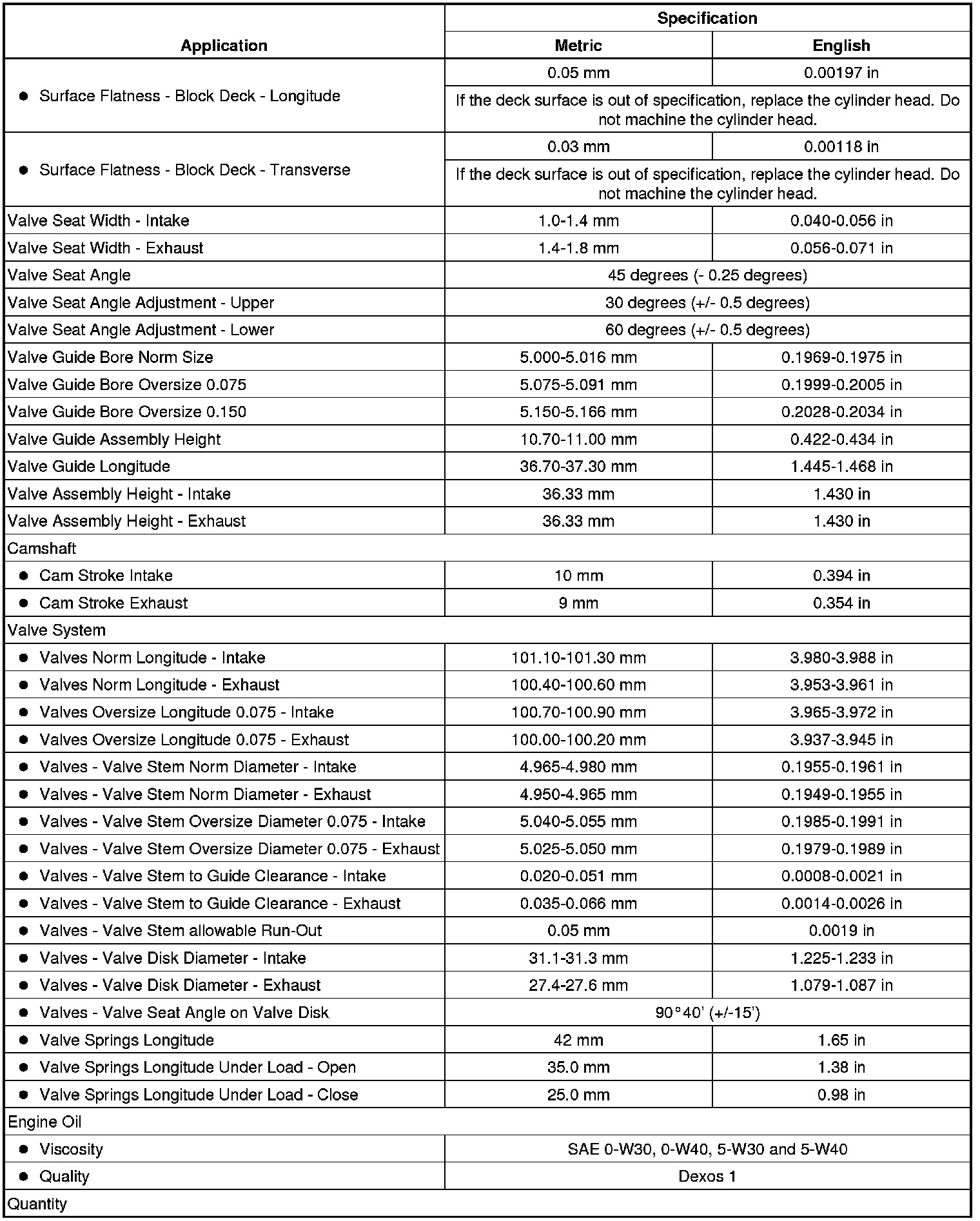

Engine Mechanical Specifications (1.8L LUW and LWE)
















-1-1
