Remote Control Door Lock Receiver Replacement

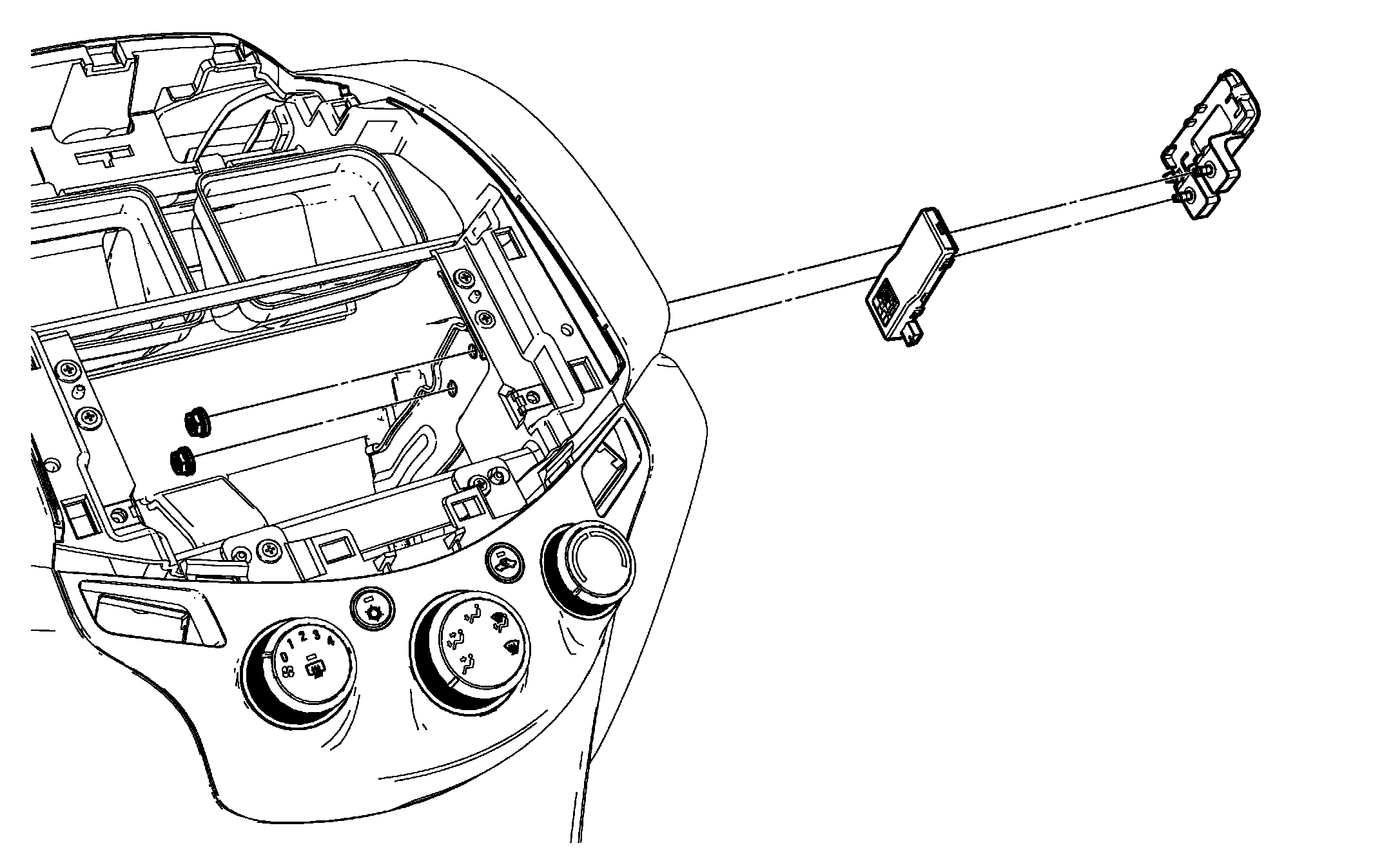

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the radio. Refer to Radio Replacement .
1	Remote Control Door Lock Receiver Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 (71 lb in)
2	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Remove the remote control door lock receiver and bracket assembly. Remove the remote control door lock receiver from the bracket.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the radio. Refer to Radio Replacement .

Remote Control Door Lock Receiver Nut (Qty: 2)

CAUTION:

Tighten
8 (71 lb in)

Remote Control Door Lock Receiver

Procedure
