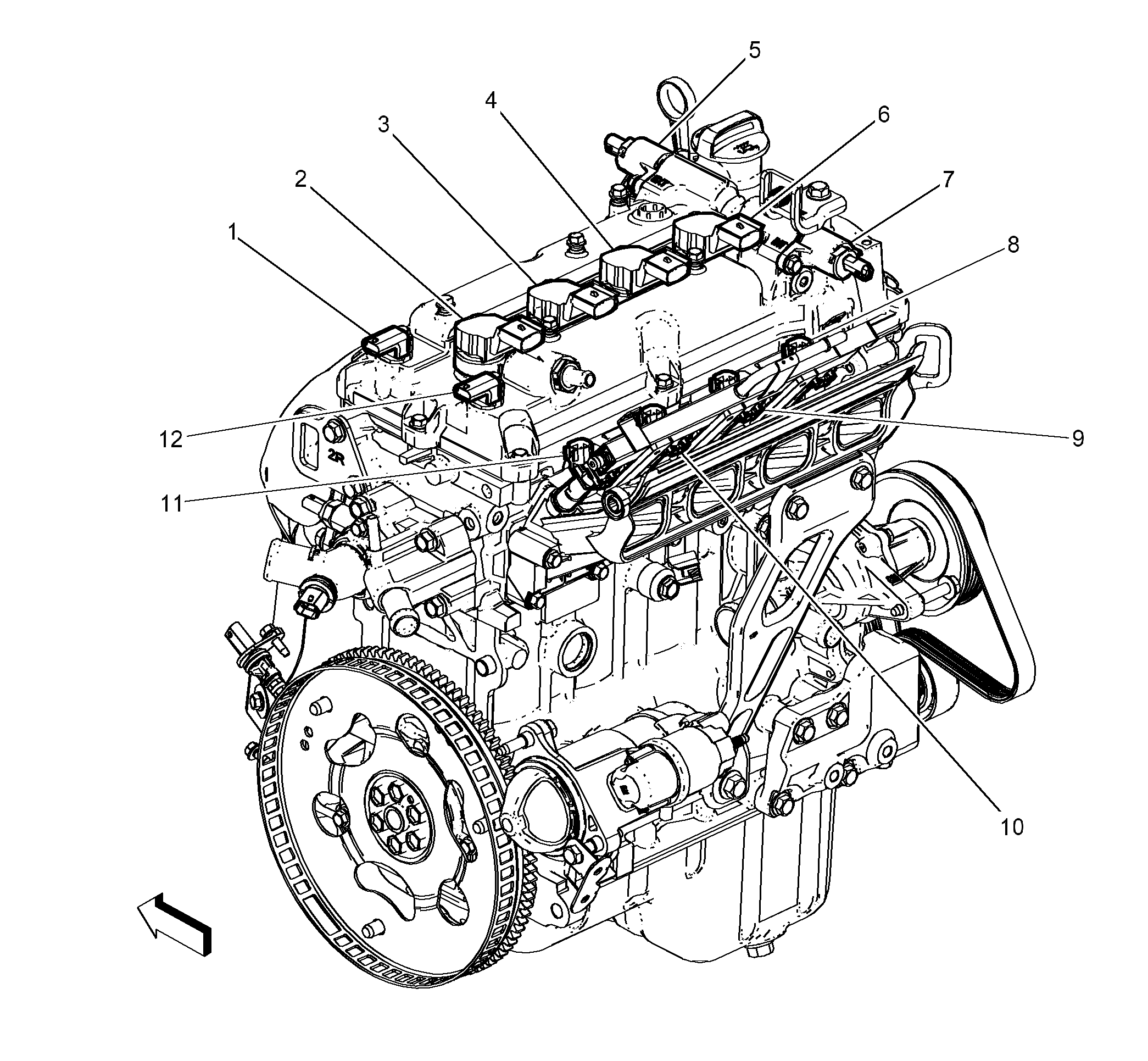

Top of Engine Components
Top of Engine Components
| Items |
|---|
| 1: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 2: T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 3: T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 4: T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 5: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve Exhaust |
| 6: T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 7: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve Intake |
| 8: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 9: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 10: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 11: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 12: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
