Accelerator Pedal Position Sensor Replacement

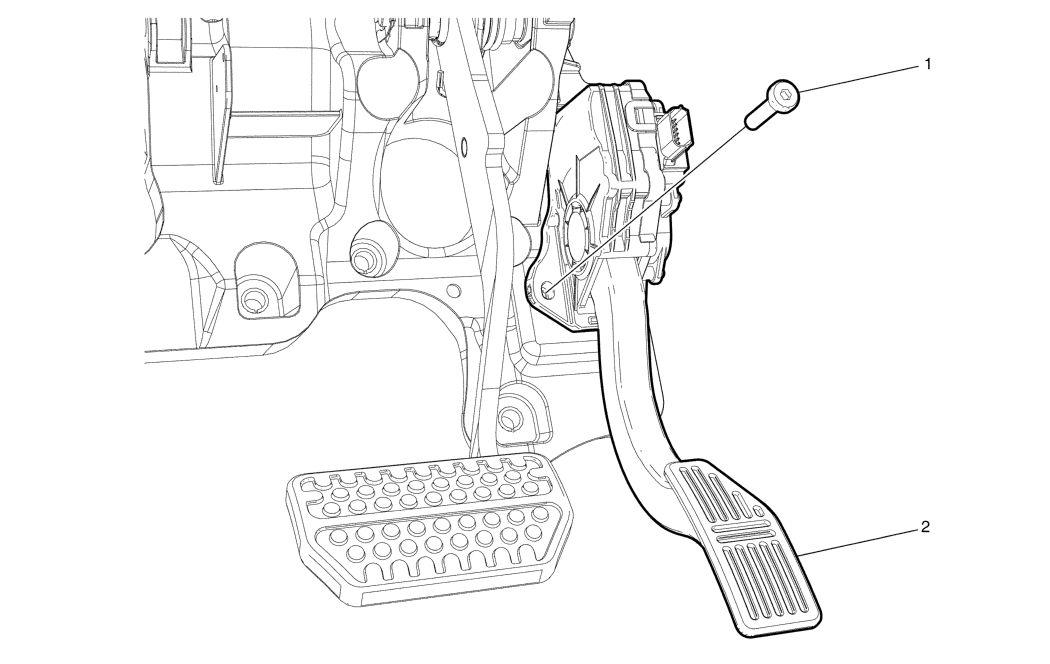

Fig 1: Accelerator Pedal Position Sensor
GM2810220Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal Position Sensor Replacement

Callout Component Name
Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Accelerator Pedal Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
6 (53 lb in)
2 Accelerator Pedal Position Sensor
Procedure
Disconnect the electrical wiring harness connector from accelerator pedal position sensor.
