Air Cleaner Assembly Replacement

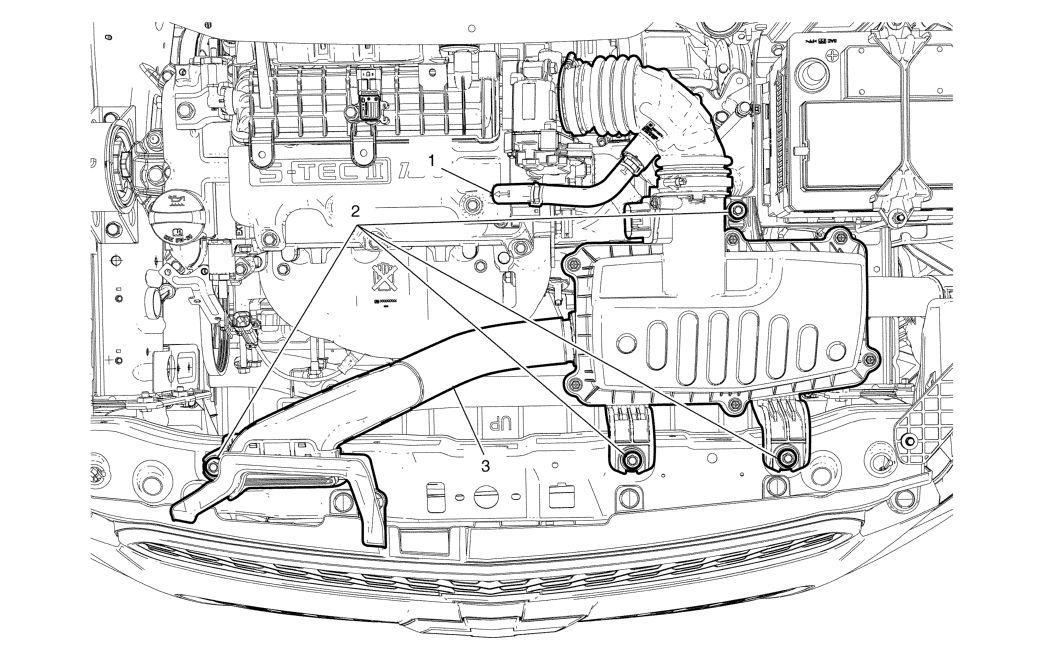

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood and disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Disconnect the air flow sensor connector.
1	Breather Hose Procedure Disconnect the breather hose (1) and clamp from the air cleaner outlet duct.
2	Air Cleaner Assembly Retaining Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove the air cleaner assembly retaining bolt (3). Tighten 6 (53 lb in)
3	Air Cleaner Assembly Procedure Disconnect the resonator duct from the air cleaner assembly.
