Air Cleaner Resonator Replacement

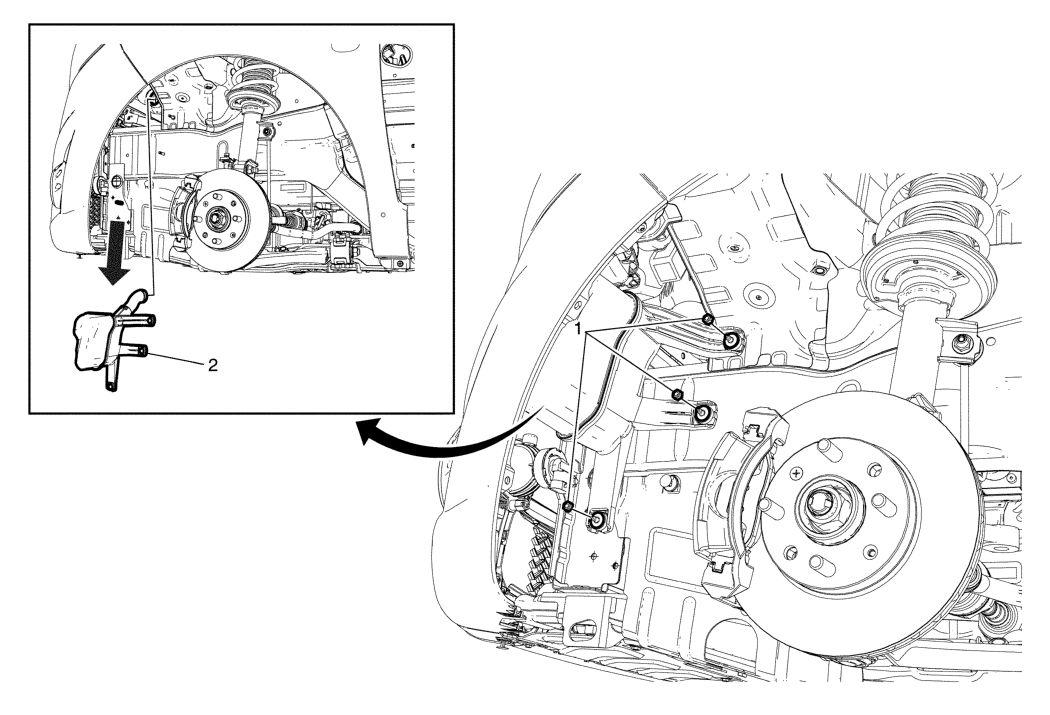

Fig 1: Air Cleaner Resonator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front (LH) tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front (LH) wheel house liner. Refer to Front Wheelhouse Liner Replacement .
1	Air Cleaner Resonator Assembly Retaining Nut CAUTION: Refer to Fastener Caution . Procedure Remove the air cleaner resonator assembly retaining nut (1). Tighten 6 (53 lb in)
2	Air Cleaner Resonator Assembly

Callout

Component Name

Preliminary Procedures

Remove the front (LH) tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front (LH) wheel house liner. Refer to Front Wheelhouse Liner Replacement .

Air Cleaner Resonator Assembly Retaining Nut

CAUTION:

Procedure
Remove the air cleaner resonator assembly retaining nut (1).
Tighten
6 (53 lb in)

Air Cleaner Resonator Assembly
