Fuel Injector Replacement

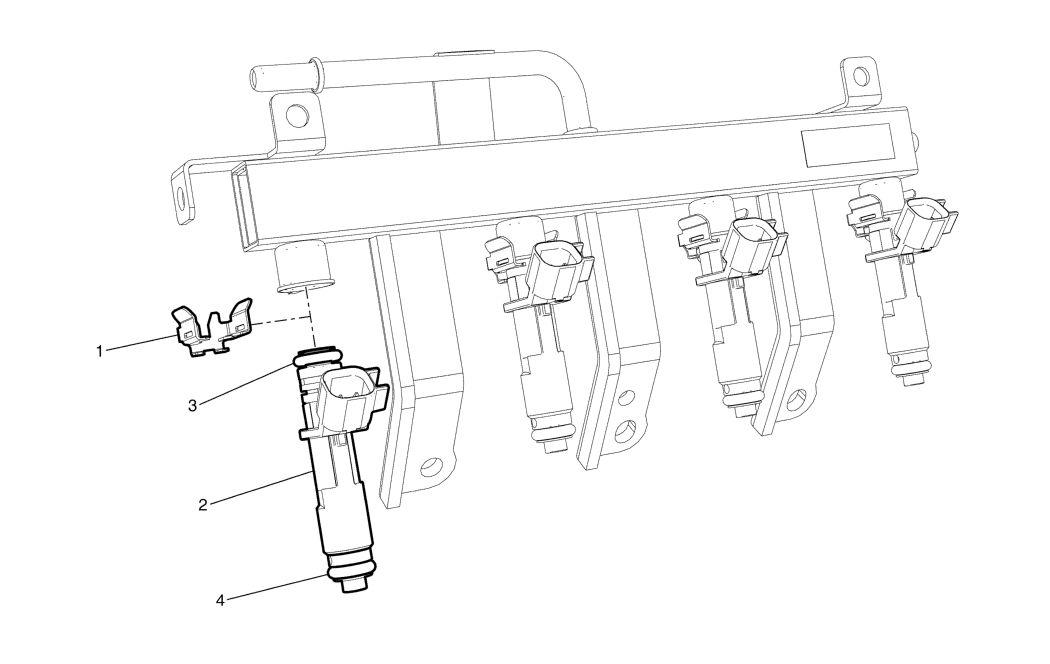

Fig 1: Fuel Injector
GM3356102Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name
Preliminary Procedure
Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Fuel Injector Retainer Clip (Qty: 4)
Procedure
Remove the fuel injector retainer clip.
2 Fuel Injector (Qty: 4)
Procedure
Disconnect the fuel injector pulling down.
3 Fuel Injector Upper O-ring (Qty: 4)
Procedure
Replace the fuel injector with the New O-ring.
4 Fuel Injector Lower O-ring (Qty: 4)
Procedure
Replace the fuel injector with the New O-ring.
